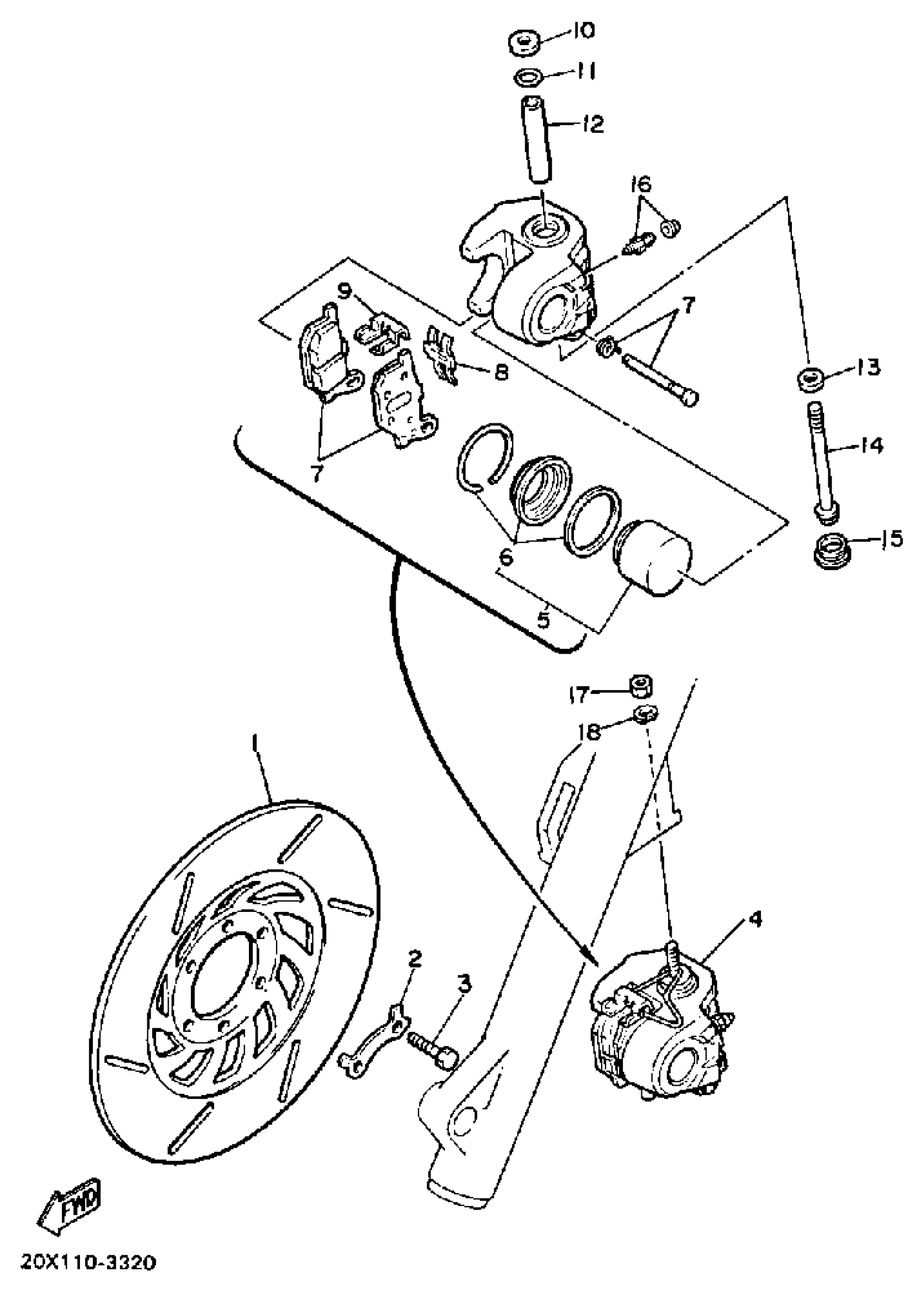

Yamaha XV750MK (MIDNIGHT VIRAGO 750) 1983 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

20X-25831-00-00

Unavailable

2

WASHER, LOCK

1J3-25834-01-00

$6.99

3

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

4

CALIPER ASSEMBLY LH

4W5-25810-10-00

Unavailable

5

. PISTON ASSEMBLY, CALIPER

2G2-W0057-00-00

Unavailable

6

CALIPER SEAL KIT

2G2-W0047-03-00

$40.99

7

BRK PD KT FRT

4H7-W0045-09-00

Unavailable

8

. SUPPORT, PAD

2G2-25919-00-00

Unavailable

9

. RETAINER, CALIPER

2G2-25849-01-00

Unavailable

10

. WASHER, PLATE

90201-086A5-00

Unavailable

11

. O-RING KIT, CALIPER

2G2-W0044-00-00

Unavailable

12

. SLEEVE, CALIPER

2G2-25838-00-00

Unavailable

13

. WASHER, PLATE

90201-09690-00

Unavailable

14

. BOLT 1

4W5-25821-00-00

Unavailable

15

. PLUG

2G2-25916-00-00

Unavailable

16

BLEED SCREW KIT

(4W5-W0048-00-00)

Unavailable

17

NUT(6TA)

95337-08600-00

Unavailable

18

WASHER(JN5)

92907-08100-00

Unavailable
