Partiron

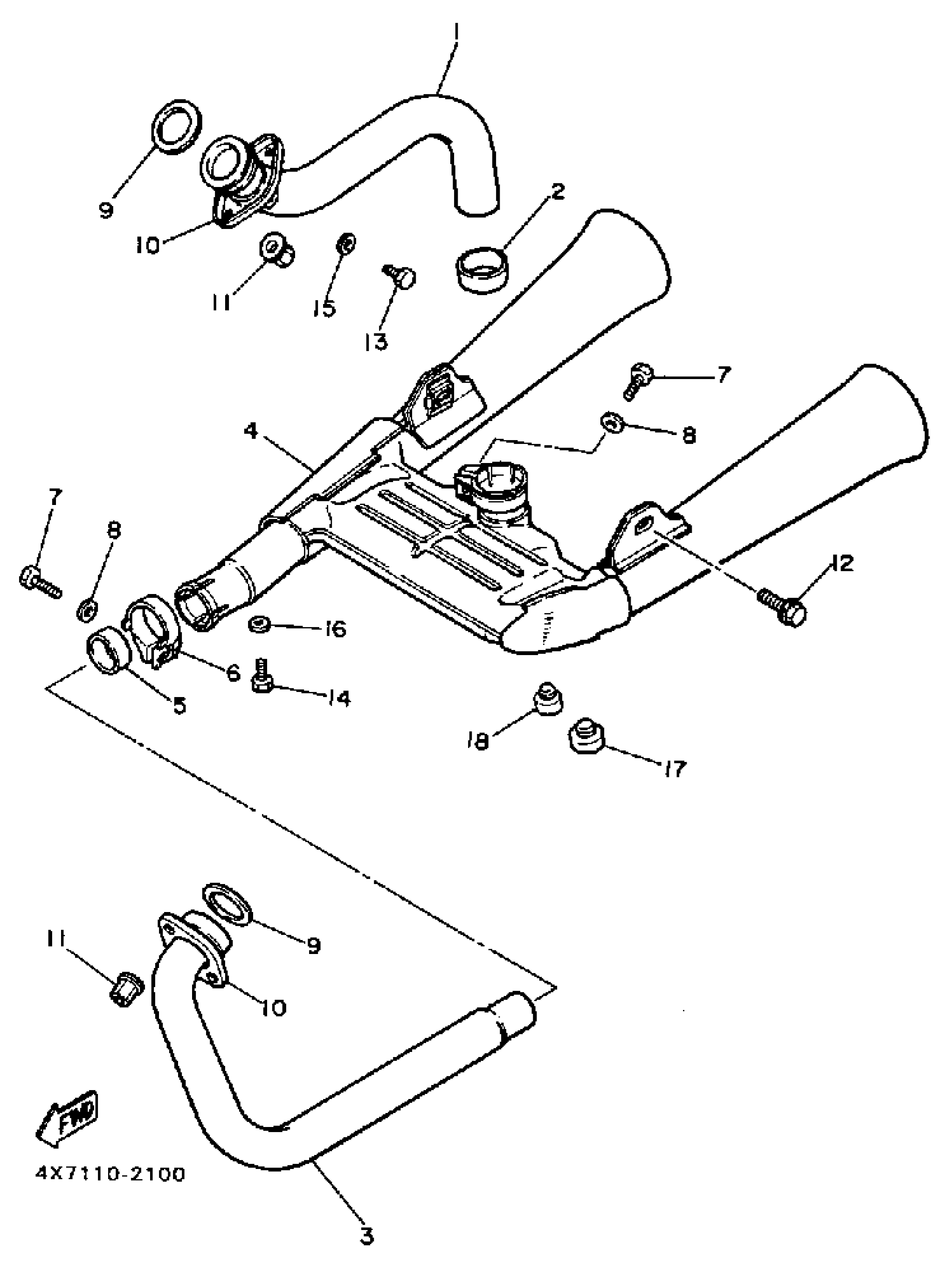

Yamaha XV750MK (MIDNIGHT VIRAGO 750) 1983 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST L

4X7-14611-01-00

Unavailable

2

GASKET, MUFFLER

3EG-14714-00-00

$66.42

3

PIPE, EXHAUST R

20X-14621-00-00

Unavailable

4

MUFFLER L

20X-14711-10-00

Unavailable

5

GASKET, MUFF

1J7-14714-10-00

Unavailable

6

BAND, MUFFLER

4H3-14725-00-00

Unavailable

7

BOLT, HEXAGON

97017-08025-00

$6.95

8

WASHER(6TA)

92907-08600-00

$2.34

9

GASKET, EXHAUST PIPE

3EG-14613-00-00

$18.82

10

NUT, RING

20X-14612-00-00

Unavailable

11

NUT, SPEC''L SHAPE

90179-08389-00

Unavailable

12

BOLT, FLANGE

95817-10035-00

$6.11

13

BOLT (11T)

90101-06576-00

$6.03

14

BOLT (11T)

90101-06576-00

$6.03

15

WASHER(6TA)

92907-06600-00

$0.73

16

WASHER(6TA)

92907-06600-00

$0.73

17

STOPPER, MAIN STAND

116-27114-00-00

Unavailable

18

STOPPER

341-27314-02-00

Unavailable
