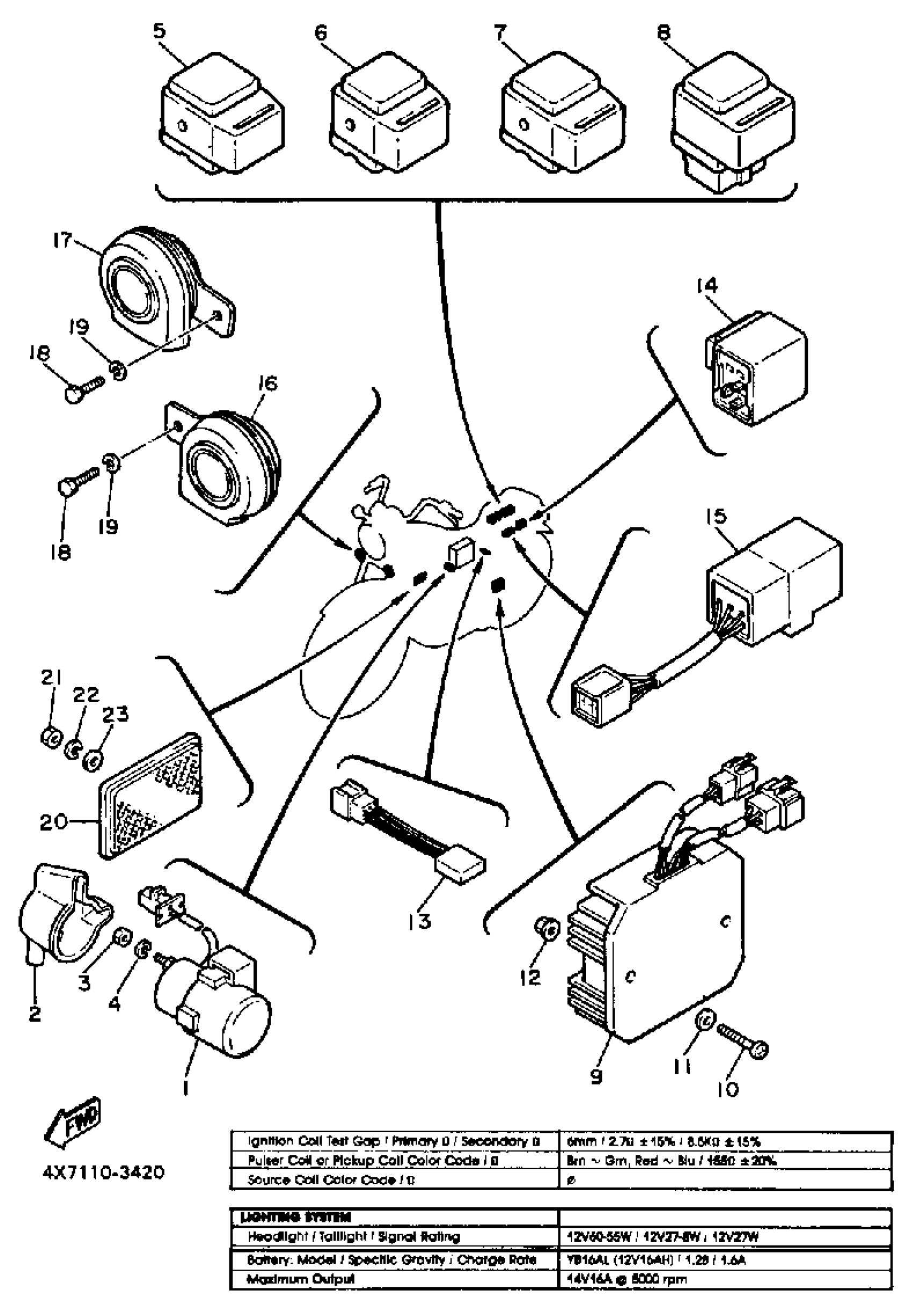

Yamaha XV750MK (MIDNIGHT VIRAGO 750) 1983 ELECTRICAL 2 Diagram

#

Description
Price

1

STARTER RELAY ASSY (MS5D-331)

4X7-81940-10-00

Unavailable

2

COVER

4X7-81942-00-00

Unavailable

3

NUT(650)

95380-06700-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

RELAY ASSY (3H5-00)

3H5-81950-00-00

Unavailable

6

RELAY ASSY

4U8-81950-03-00

Unavailable

7

RELAY ASSY

4U8-81950-03-00

Unavailable

8

RELAY ASSY

12R-81950-02-00

$70.99

9

RECTIFIER/REG ASSEMBLY

4X7-81960-A0-00

Unavailable

10

SCREW, PAN

98507-06035-00

$8.49

11

WASHER, PLATE

90201-06380-00

$0.60

12

NUT, FLANGE(4MV)

95707-06500-00

$1.23

13

RECTIFIER 2

4U8-81980-M0-00

Unavailable

14

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

15

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

16

HORN

24M-83371-20-00

Unavailable

17

HORN

24M-83371-30-00

Unavailable

18

BOLT, HEXAGON

97017-08016-00

Unavailable

19

WASHER(JN5)

92907-08100-00

Unavailable

20

FRONT REFLECTOR ASSY

23V-85110-00-00

Unavailable

21

FRONT REFLECTOR ASSY

23V-85110-00-00

Unavailable

22

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

23

. WASHER, PLAIN

92990-05200-00

Unavailable
