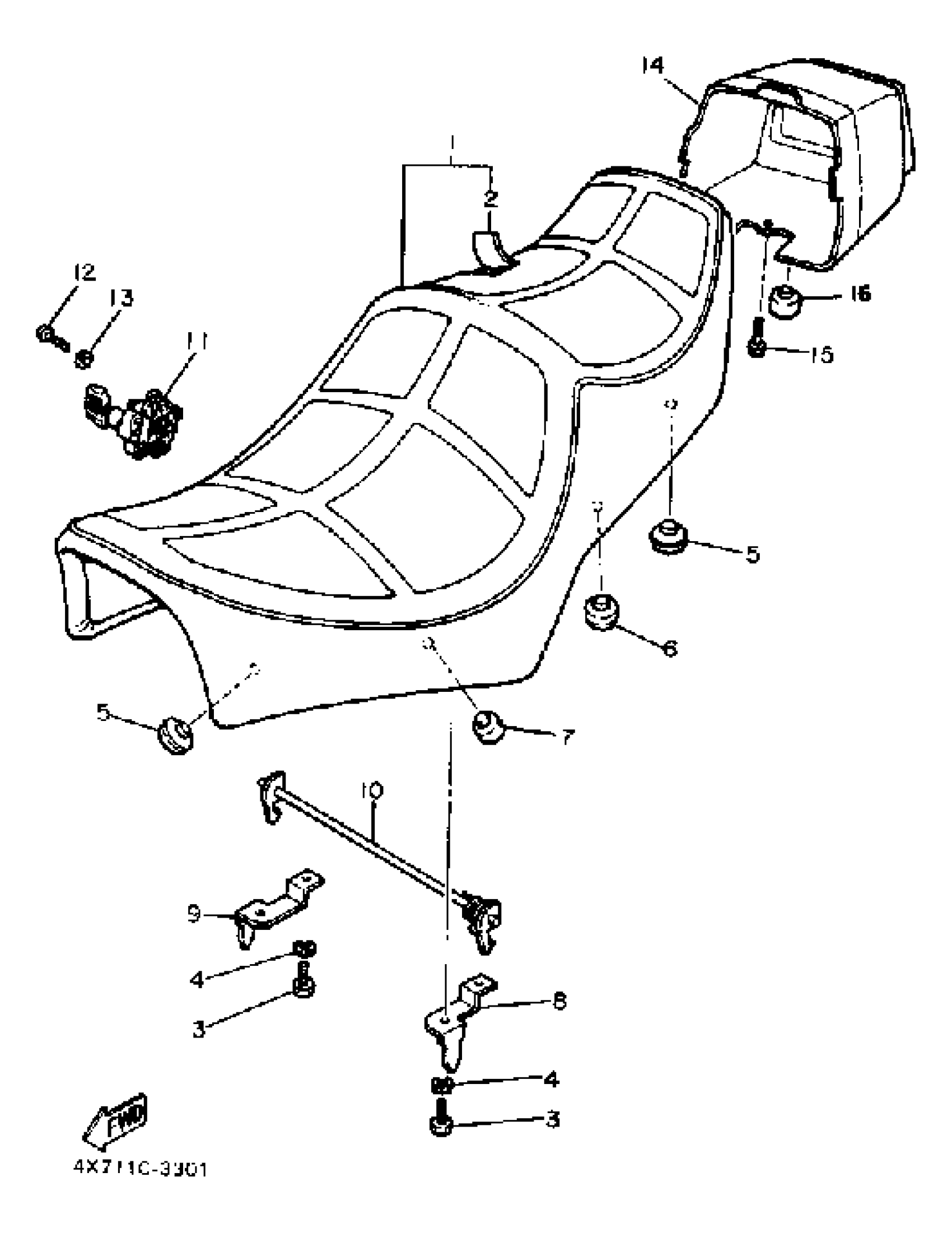

Yamaha XV750K (VIRAGO 750) 1983 SEAT Diagram
#
Description
Price
1
DOUBLE SEAT ASSEMBLY
4X7-W2472-A1-00
Unavailable
2
COVER, DOUBLE SEAT
(4X7-24731-A1-00)
Unavailable
4
WASHER, SPRING
92995-06100-00
Unavailable
6
PAD, SEAT
1T4-24741-00-00
Unavailable
8
BRACKET, SEAT
4X7-24728-00-00
Unavailable
9
BRACKET, SEAT
4X7-24738-00-00
Unavailable
10
LEVER, SEAT
4X7-24776-01-00
Unavailable
11
SEAT LOCK ASSEMBLY
4X7-24705-00-00
Unavailable
14
SEAT BOX ASSEMBLY
4X7-2475A-00-00
Unavailable
15
SCREW, OVAL FLSTR
(90146-06001-00)
Unavailable
