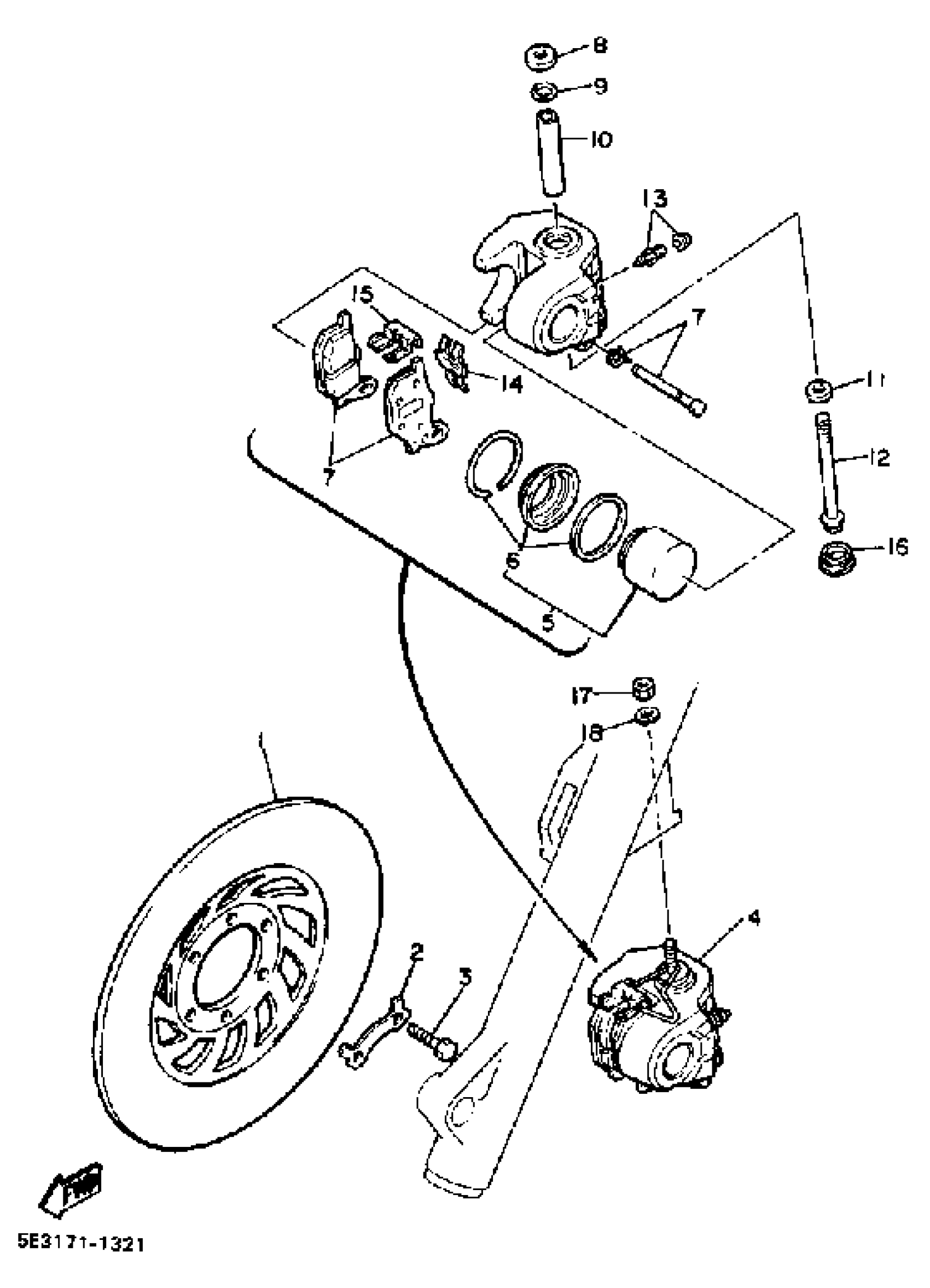

Yamaha XV750K (VIRAGO 750) 1983 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

DISC, BRAKE

(1J3-25831-00-00)

Unavailable

2

WASHER, LOCK

1J3-25834-01-00

$6.99

3

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

4

CALIPER ASSEMBLY LH (LEFT) (4H7-25810-11)

4H7-25810-12-00

Unavailable

5

. PISTON ASSEMBLY, CALIPER

2G2-W0057-00-00

Unavailable

6

CALIPER SEAL KIT

2G2-W0047-03-00

$40.99

7

BRK PD KT FRT

4H7-W0045-09-00

Unavailable

8

. WASHER, PLATE

90201-08689-00

Unavailable

9

. O-RING KIT, CALIPER

2G2-W0044-00-00

Unavailable

10

. SLEEVE, CALIPER

2G2-25838-00-00

Unavailable

11

. WASHER, PLATE

90201-09690-00

Unavailable

12

. BOLT 1

2G2-25821-00-00

Unavailable

13

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

14

. SUPPORT, PAD

2G2-25919-00-00

Unavailable

15

. RETAINER, CALIPER

2G2-25849-01-00

Unavailable

16

. PLUG

2G2-25916-00-00

Unavailable

17

NUT(6L2)

95333-08600-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
