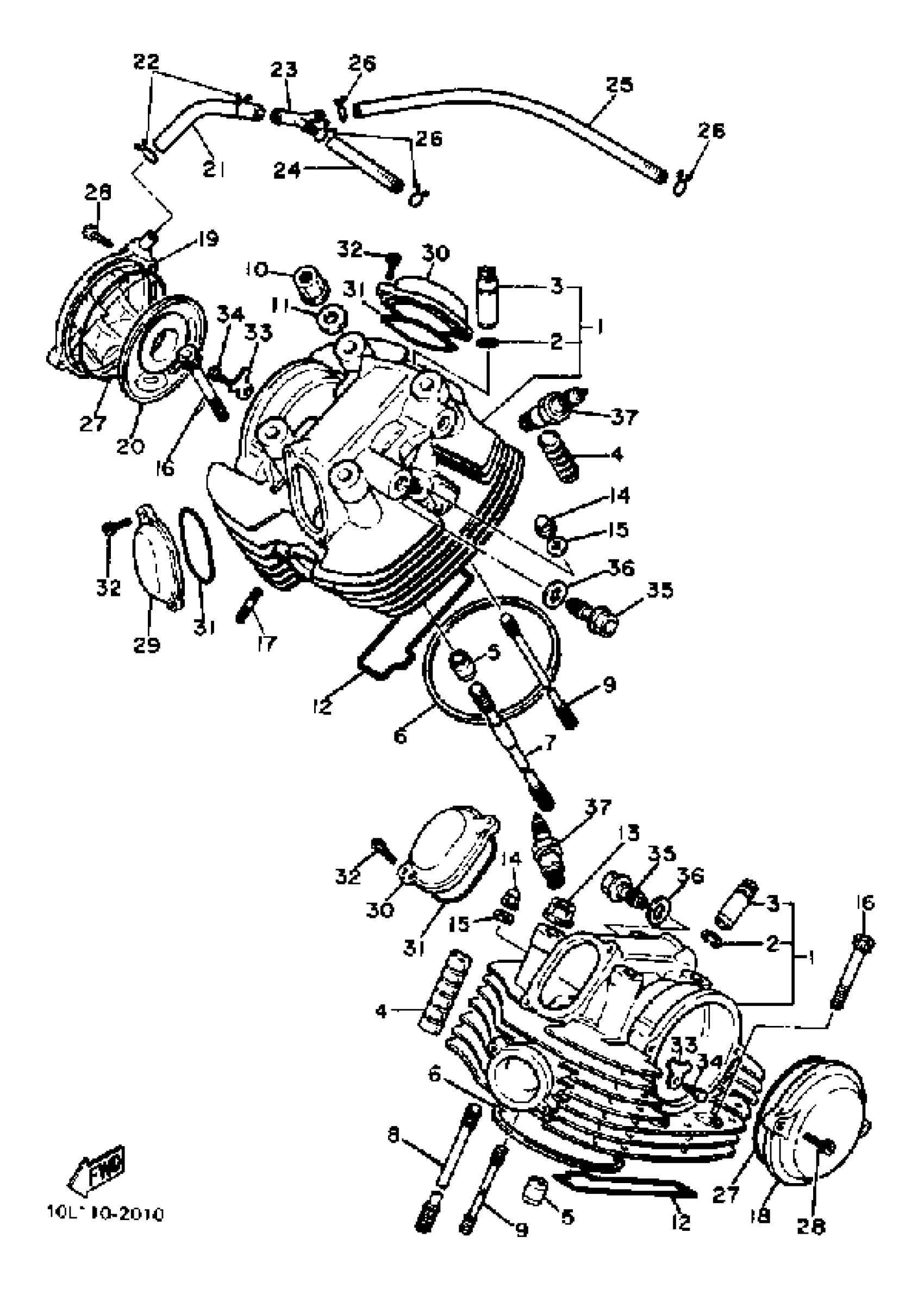

Yamaha XV750K (VIRAGO 750) 1983 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY (4X7-11110-00)

4X7-11110-01-00

Unavailable

2

CIRCLIP (4X7)

93440-14086-00

$9.49

3

GUIDE, INTAKE VALVE (1ST O/S)

4X7-11133-10-00

$69.99

4

ABSORBER 1

4X7-11161-00-00

Unavailable

5

PIN, DOWEL(3EF)

91817-30011-00

$12.49

6

GASKET, CYLINDER HEAD 1

4X7-11181-00-00

$31.99

7

BOLT, CYLINDER HOLDING 3

4X7-11363-01-00

Unavailable

8

BOLT,STUD

90116-12350-00

Unavailable

9

BOLT, STUD (4X7)

90116-10344-00

$13.99

10

NUT (4X7)

90179-12326-00

$10.49

11

WASHER, PLATE (5E3)

90201-125A3-00

$2.17

12

SEAL, CYLINDER 1

4X7-11355-00-00

Unavailable

13

NUT (4X7)

90179-12325-00

$5.60

14

NUT, CROWN(2GG)

90176-10075-00

$8.49

15

WASHER, PLATE (26H)

90201-102G9-00

$9.49

16

BOLT, SOCKET

91314-08050-00

Unavailable

17

BOLT, STUD 3

95617-08625-00

Unavailable

18

COVER, CYLINDER HEAD SIDE 1

42X-11185-01-00

Unavailable

19

COVER, CYLINDER.HEAD 4

24M-1111H-00-00

Unavailable

20

PLATE, BREATHER

42X-11165-00-00

Unavailable

21

HOSE (L60)

90445-16641-00

Unavailable

22

CLIP (371)

90467-14015-00

Unavailable

23

JOINT 1

10L-1131H-00-00

Unavailable

24

HOSE

90445-10365-00

Unavailable

25

HOSE (L450)

90445-10144-00

Unavailable

26

CLIP

90467-090A2-00

Unavailable

27

O-RING (4X7)

93210-92448-00

Unavailable

28

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

29

COVER, CYLINDER.HEAD 2

4X7-11186-00-00

Unavailable

30

COVER, CYLINDER HEAD SIDE 3

4X7-11187-02-00

Unavailable

31

O-RING (4X7)

93210-62446-00

Unavailable

32

BOLT, SOCKET

91314-06016-00

Unavailable

33

PLATE

4X7-1111F-00-00

Unavailable

34

BOLT, HEXAGON

97013-08020-00

Unavailable

35

BOLT, UNION

90401-16065-00

Unavailable

36

GASKET (4X7)

90430-17168-00

Unavailable

37

BPR7ES NGK - 4/PACK

BPR-7ES00-40-00

Unavailable
