- XV750K (VIRAGO 750) 1983
CARBURETOR

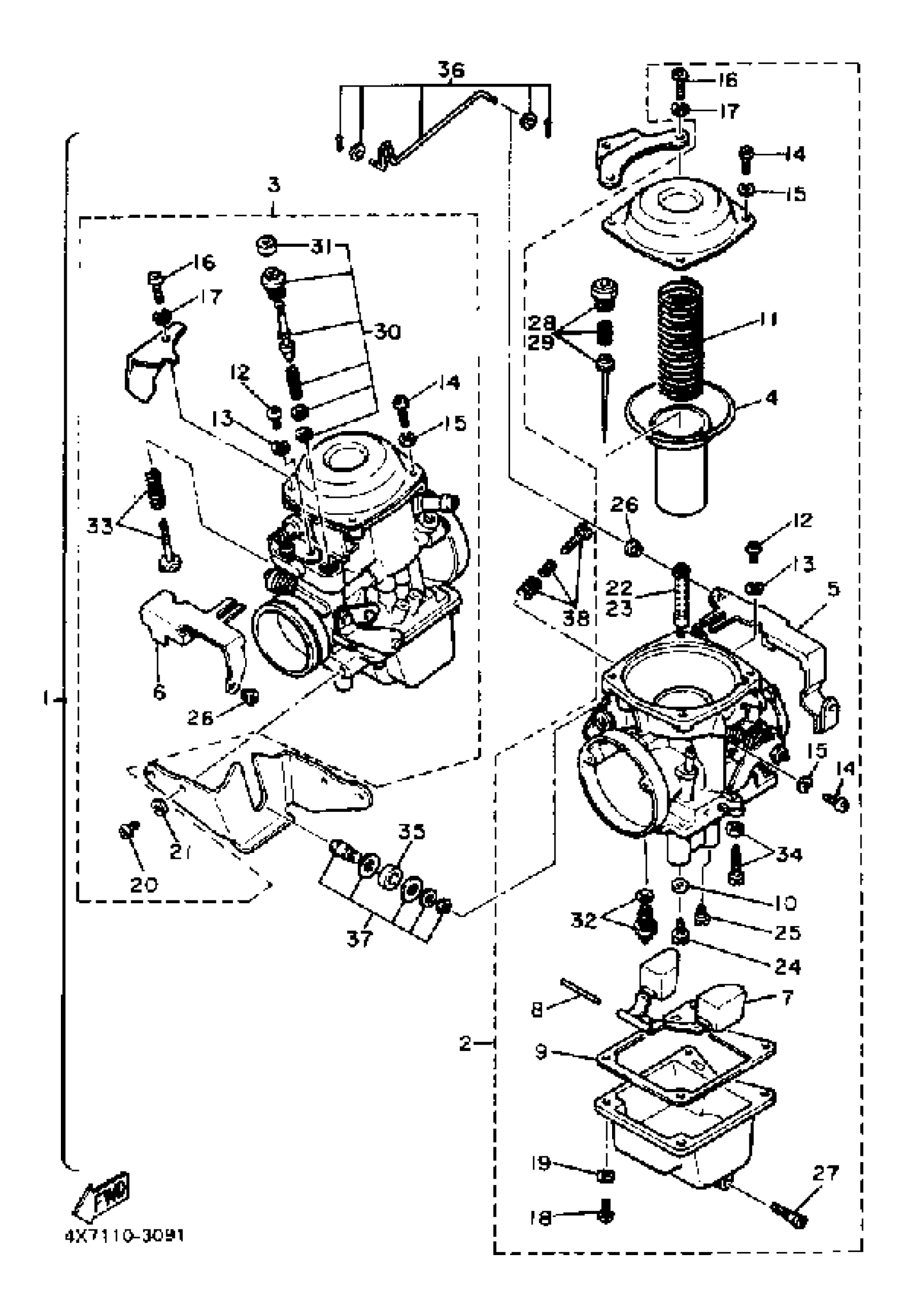

Yamaha XV750K (VIRAGO 750) 1983 CARBURETOR Diagram
#
1
UNAVAILABLE IN PRICE BOOK
(4X7-14900-01-00)
Unavailable
2
. CARBURETOR ASSEMBLY 1
4X7-14901-01-00
Unavailable
3
CARBURETOR ASY 2
4X7-14902-01-00
Unavailable
4
.. DIAPHRAGM ASSEMBLY
4X7-14940-01-00
Unavailable
5
LEVER, STARTER 1
(4X7-14975-00-00)
Unavailable
6
.. LEVER, STARTER 2
4X7-14976-00-00
Unavailable
7
.. FLOAT
10L-14985-01-00
Unavailable
8
.. PIN, FLOAT
4H7-14186-00-00
Unavailable
9
.. GASKET, FLOAT CHAMBER
4X7-14984-01-00
Unavailable
10
.. WASHER, MAIN JET
4H7-14945-00-00
Unavailable
11
SPRING, DIAPHRAGM
(4X7-14933-00-00)
Unavailable
14
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
16
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
18
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
20
SCREW, PAN
98507-06014-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
.. NOZZLE, MAIN
4X7-14921-07-00
Unavailable
23
.. NOZZLE, MAIN
4X7-14921-32-00
Unavailable
24
.. JET, MAIN (#122)
4X7-14925-22-00
Unavailable
25
.. JET
4X7-14948-41-00
Unavailable
26
BUSH
(4X7-14998-00-00)
Unavailable
27
.. PLUG, DRAIN
4X7-14191-01-00
Unavailable
28
.. NEEDLE
4X7-14916-23-00
Unavailable
29
.. NEEDLE
4X7-14916-22-00
Unavailable
30
.. PLUNGER, STARTER
4X7-14371-01-00
Unavailable
31
.. COVER, PLUNGER CAP
4H7-14173-00-00
Unavailable
32
.. NEEDLE VALVE ASSY
10L-14390-02-00
Unavailable
33
.. SCREW, THROTTLE STOP SPRING 1
4X7-14121-01-00
Unavailable
34
.. SCREW, THROTTLE
4X7-14321-01-00
Unavailable
35
. ROLLER
4X7-14267-00-00
Unavailable
36
. CONNECTOR
4X7-14188-00-00
Unavailable
37
. WASHER
4X7-14962-00-00
Unavailable
38
.. SCREW, ADJUST
4X7-14522-01-00
Unavailable
