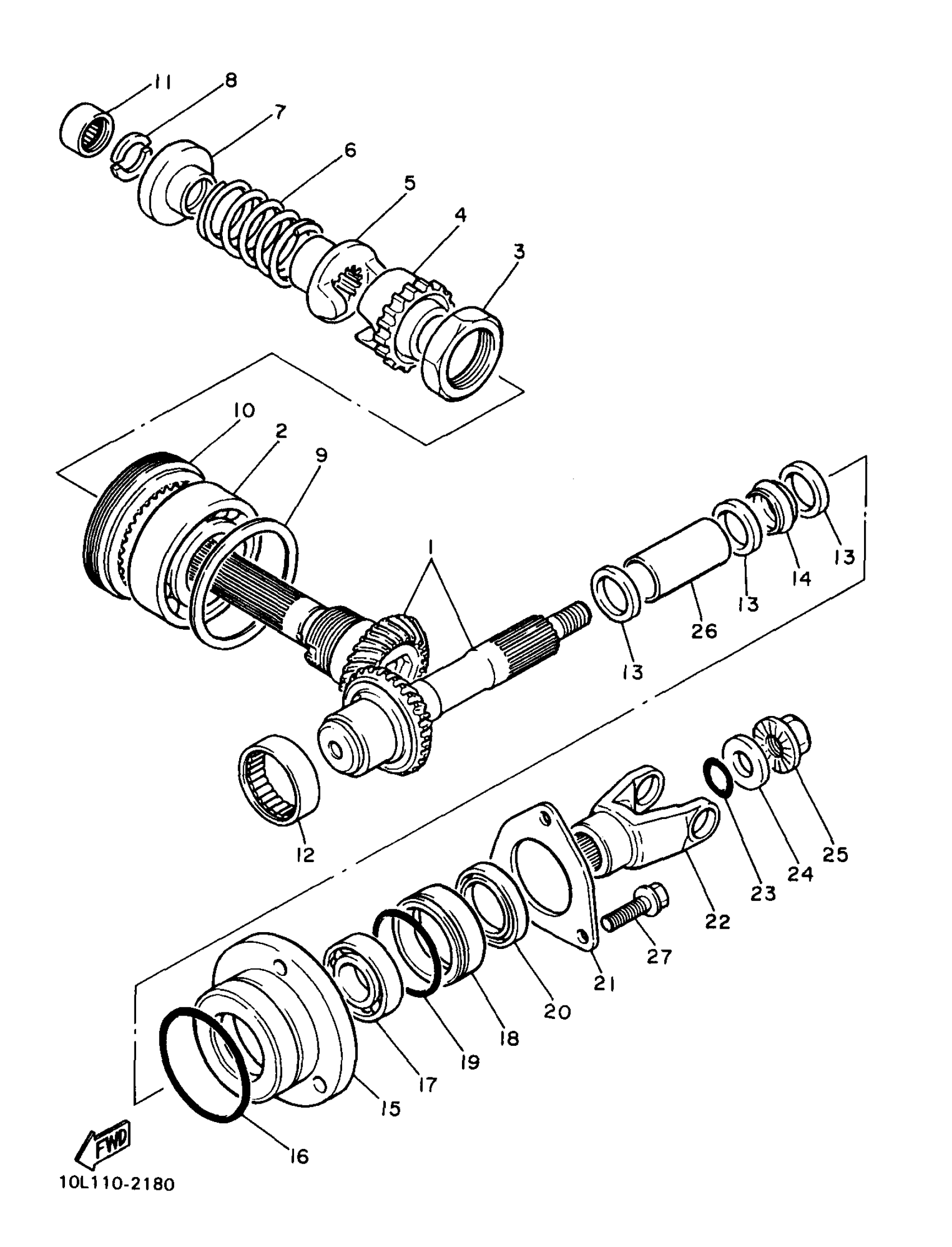

Yamaha XV750JC1 (VIRAGO 750 CA) 1997 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

MIDDLE GEAR

1TA-Y1757-00-00

Unavailable

2

BRG,R-B 6209RSH2-C2 85MM 412G

93306-20901-00

Unavailable

3

NUT (4X7)

90179-44328-00

Unavailable

4

CAM, DRIVE

42X-17526-01-00

Unavailable

5

CAM, DRIVEN

31A-17527-00-00

$59.99

6

SPRING, COMPRESSION (31A)

90501-70762-00

$26.99

7

HOLDER

4X7-17524-00-00

$23.99

8

WASHER, THRUST

3H5-17529-00-00

$7.99

9

SHIM, PINION

4X7-17531-00-15

$3.54

9

SHIM, PINION

4X7-17531-00-30

$4.94

9

SHIM, PINION

4X7-17531-00-50

$4.78

10

NUT (4X7)

90179-88336-00

Unavailable

11

BEARING, CYLINDRICAL (4X7)

93317-22021-00

Unavailable

12

BEARING, CYLINDRICAL

93311-34050-00

Unavailable

13

WASHER, PLATE (4X7)

90201-255A6-00

$12.49

14

SPACER, EXPANSION

1J7-46129-Y1-00

Unavailable

15

HOUSING, BEARING

11H-17551-00-00

Unavailable

16

O-RING (2H7)

93210-71360-00

Unavailable

17

BRG,R-B 6205RC2 52MM 124G KY

93306-20548-00

Unavailable

18

RETAINER, BEARING

4X7-17554-00-00

Unavailable

19

O-RING (4X7)

93210-52449-00

Unavailable

20

OIL SEAL (4X7)

93101-35099-00

Unavailable

21

PLATE, BEARING

4X7-17558-00-00

Unavailable

22

YOKE, JOINT

5EL-17556-00-00

Unavailable

23

O-RING (2H7)

93210-14359-00

Unavailable

24

WASHER, PLATE (1J7)

90201-14633-00

Unavailable

25

NUT

90179-14317-00

Unavailable

26

COLLAR

90387-251E1-00

Unavailable

27

BOLT, FLANGE(6TA)

95817-08030-00

Unavailable
