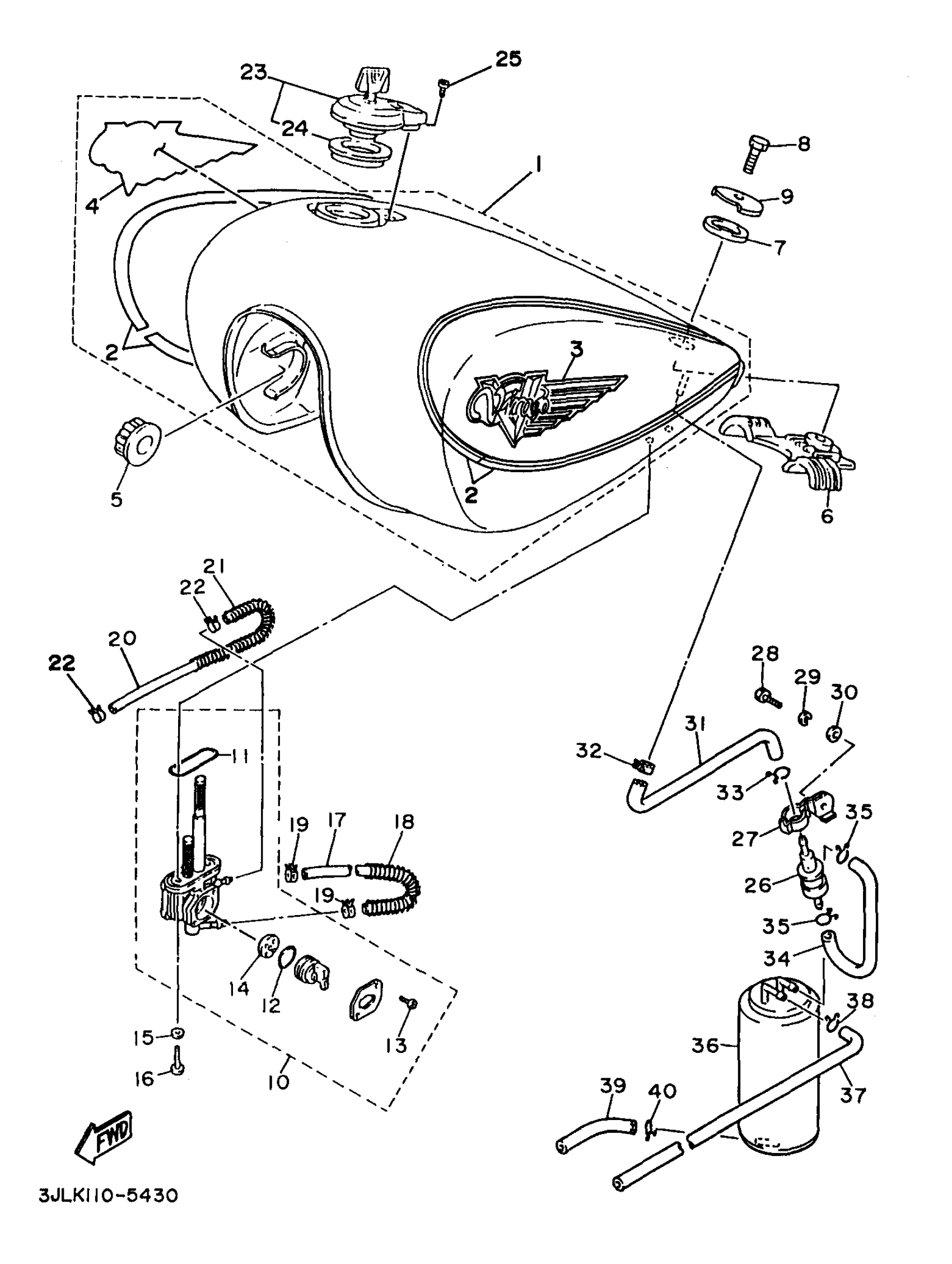

Yamaha XV750JC1 (VIRAGO 750 CA) 1997 FUEL TANK Diagram
#
1
FUEL TANK COMP. (VIVID RED COCKTAIL 1) (DEEP RED COCKTAIL 2)
1RM-24110-G0-06
Unavailable
1
FUEL TANK COMP. (GREENISH BLACK) (NEW PEARL WHITE)
1RM-24110-G0-07
Unavailable
1
FUEL TANK COMP. (VIVID RED COCKTAIL 1) (DEEP RED COCKTAIL 2)
1RV-24110-00-W3
Unavailable
1
FUEL TANK COMP.
1RV-24110-00-W4
Unavailable
2
. GRAPHIC SET (BLACK GOLD)
3JL-24240-C0-00
Unavailable
2
. GRAPHIC SET (DEEP RED COCKTAIL 2)
3JL-24240-F0-00
Unavailable
3
. EMBLEM 1 (GREENISH BLACK)
3JL-24161-60-00
Unavailable
3
. EMBLEM 1 (DEEP RED COCKTAIL 2)
3JL-24161-70-00
Unavailable
4
. EMBLEM 2 (GREENISH BLACK)
3JL-24162-60-00
Unavailable
4
. EMBLEM 2 (DEEP RED COCKTAIL 2)
3JL-24162-70-00
Unavailable
6
DAMPER, LOCATING 2
42X-24182-00-00
Unavailable
10
FUEL COCK ASSY 1
3AL-24500-00-00
Unavailable
11
O-RING
4X8-24512-00-00
Unavailable
12
SEAL, COCK
1JK-24534-00-00
Unavailable
13
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
14
VALVE, FUEL COCK
3H3-24523-00-00
Unavailable
15
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
16
SCREW 256241430000
90149-06011-00
Unavailable
17
PIPE 10
3AL-24321-00-00
Unavailable
18
SPRING, COMPRESSION (27Y)
90501-08728-00
Unavailable
19
CLIP(3BM)
90467-10135-00
Unavailable
20
HOSE
42X-2416A-00-00
Unavailable
21
SPRING, COMPRESSION
90501-085L6-00
Unavailable
22
CLIP(41W)
90467-08092-00
Unavailable
23
CAP ASSY
20K-24602-10-00
Unavailable
23
CAP ASSY
4X7-24602-10-00
Unavailable
24
GASKET, TANK CAP
4X7-24612-00-00
Unavailable
25
BOLT, SOCKET
91317-05010-00
Unavailable
26
ROLL OVER VALVE ASSY
25H-24180-00-00
Unavailable
27
HOLDER
42X-2419A-00-00
Unavailable
28
BOLT, HEXAGON
97017-06012-00
Unavailable
29
WASHER, SPRING
92907-06100-00
Unavailable
30
WASHER(6TA)
92907-06600-00
Unavailable
31
PIPE, JOINT 1
42X-24376-00-00
Unavailable
32
CLIP(41W)
90467-08092-00
Unavailable
33
CLIP
90467-090A2-00
Unavailable
34
PIPE, JOINT 3
42X-24377-00-00
Unavailable
35
CLIP
90476-09006-00
Unavailable
36
CANISTER ASSEMBLY
42H-24170-00-00
Unavailable
37
HOSE (L730)
90445-105K7-00
Unavailable
38
CLIP
90467-090A2-00
Unavailable
39
HOSE (L198)
90445-11293-00
Unavailable
40
CLIP(1JH)
90467-11106-00
Unavailable
