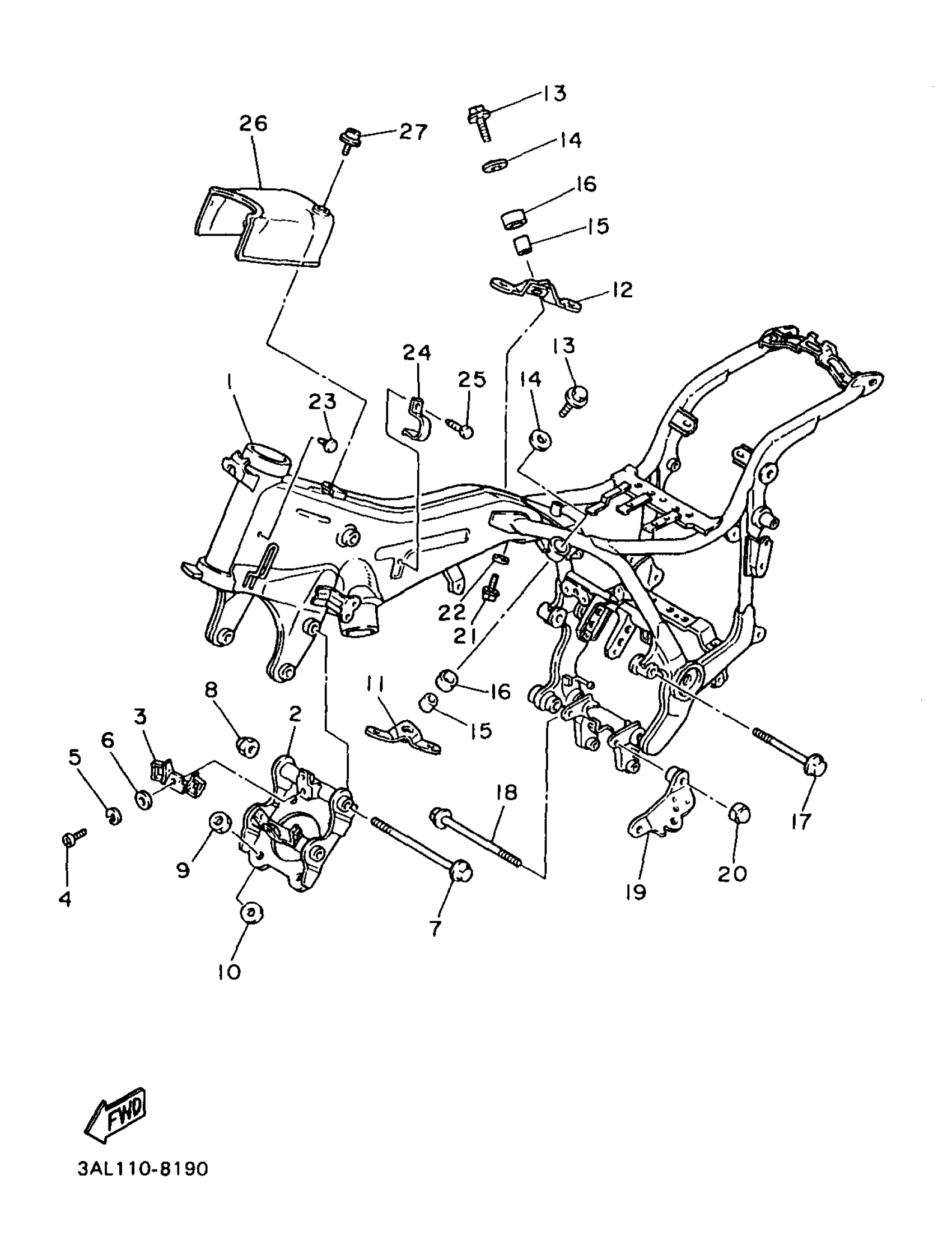

Yamaha XV750JC1 (VIRAGO 750 CA) 1997 FRAME Diagram

#

Description
Price

1

FRAME COMP.

3CF-21110-00-33

Unavailable

2

STAY, ENGINE 4

42X-21317-00-00

Unavailable

3

BRACKET, COIL

42X-21359-00-00

Unavailable

4

SCREW, PAN

98517-06012-00

$3.78

5

WASHER, SPRING

92907-06100-00

$4.25

6

WASHER(6TA)

92907-06600-00

$2.72

7

BOLT, WASHER BASED(42X)

90105-10297-00

$13.99

8

NUT, CROWN(2GG)

90176-10075-00

$8.49

9

NUT(3EF)

90179-12657-00

$5.60

10

WASHER, PLATE (5E3)

90201-125A3-00

$2.17

11

STAY,ENGINE 2

42X-21315-01-00

Unavailable

12

STAY,ENGINE 3

42X-21316-01-00

Unavailable

13

BOLT, WASHER BASED

90105-10298-00

Unavailable

14

WASHER, PLATE(42X)

90201-105H3-00

$7.49

15

COLLAR (5E3)

90387-100E2-00

Unavailable

16

DAMPER, RUBBER 1

4X7-21485-00-00

Unavailable

17

BOLT, WASHER BASED (2H7)

90105-10105-00

Unavailable

18

BOLT, WASHER BASED(42X)

90105-10300-00

Unavailable

19

BRACKET, SIDE STAND

42X-21458-01-00

Unavailable

20

NUT, CROWN(2GG)

90176-10075-00

$8.49

21

BOLT, WASHER BASED HEXAGON 1L9

90105-06069-00

Unavailable

22

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

23

PLUG 288833190000

90338-07043-00

Unavailable

24

CLAMP

90462-08138-00

Unavailable

25

SCREW, PAN TAP.2

97707-50508-00

Unavailable

26

COVER 2 (42X-2139R-00-00)

2AE-2139R-00-00

Unavailable

27

SCREW, WITH WASHER (3T2)

90159-06058-00

Unavailable
