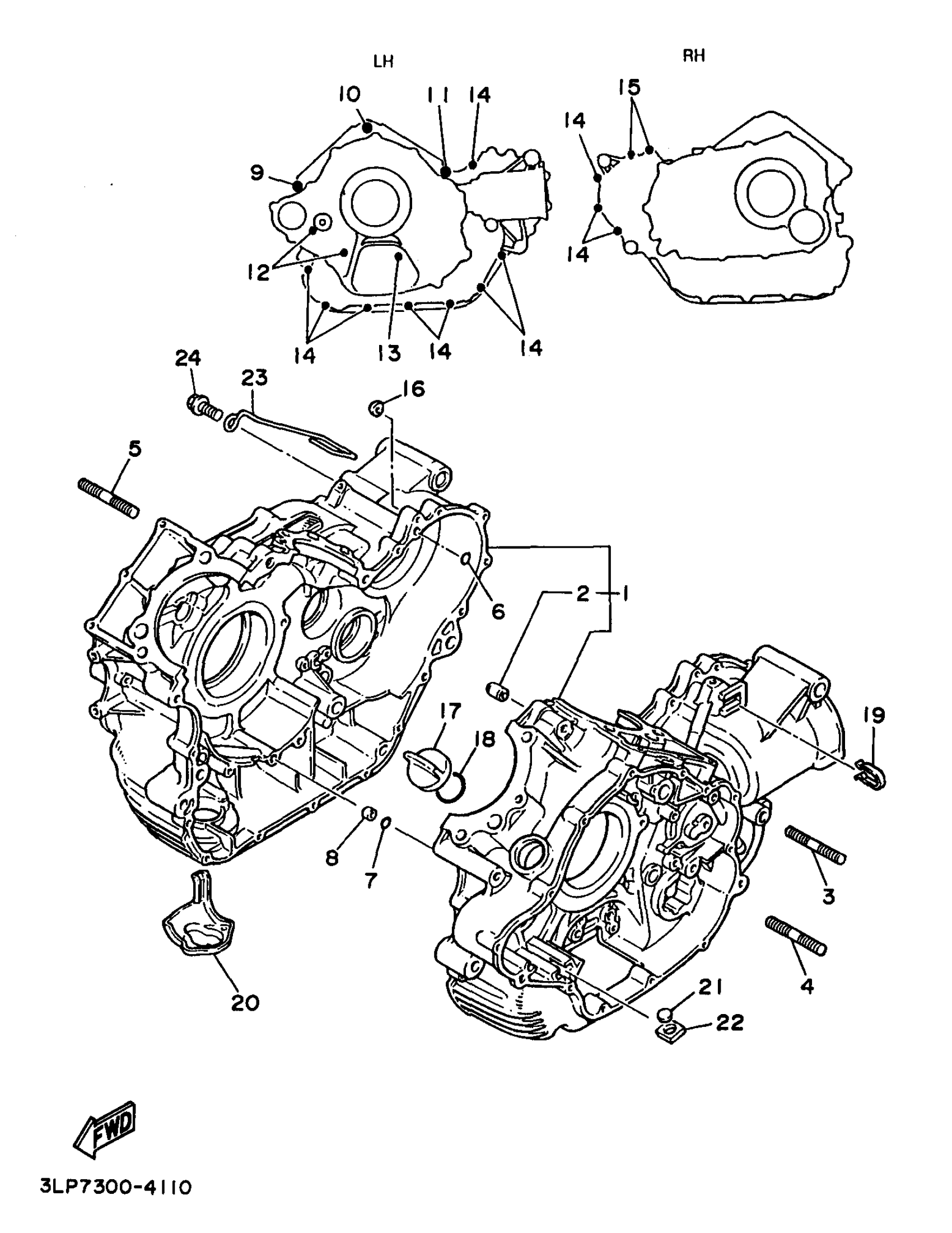

Yamaha XV750JC1 (VIRAGO 750 CA) 1997 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASY
4X7-15100-05-00
Unavailable
3
BOLT, STUD 3
95617-10620-00
Unavailable
4
BOLT, STUD 3
95617-10620-00
Unavailable
5
BOLT,STUD 3
95617-10670-00
Unavailable
8
COLLAR
90387-06704-00
Unavailable
10
BOLT,SOCKET
91317-10070-00
Unavailable
16
GASKET 256113960000
90430-06014-00
Unavailable
17
PLUG, OIL
57A-15363-11-00
Unavailable
18
O-RING (371)
93210-29198-00
Unavailable
19
CLAMP
90465-10168-00
Unavailable
20
PROTECTOR
4X7-15491-00-00
Unavailable
21
PLUG
4X7-13419-00-00
Unavailable
22
GROMMET
90480-20302-00
Unavailable
23
HOLDER, CABLE
42X-21164-00-00
Unavailable
24
BOLT, WASHER BASED
90105-10275-00
Unavailable
