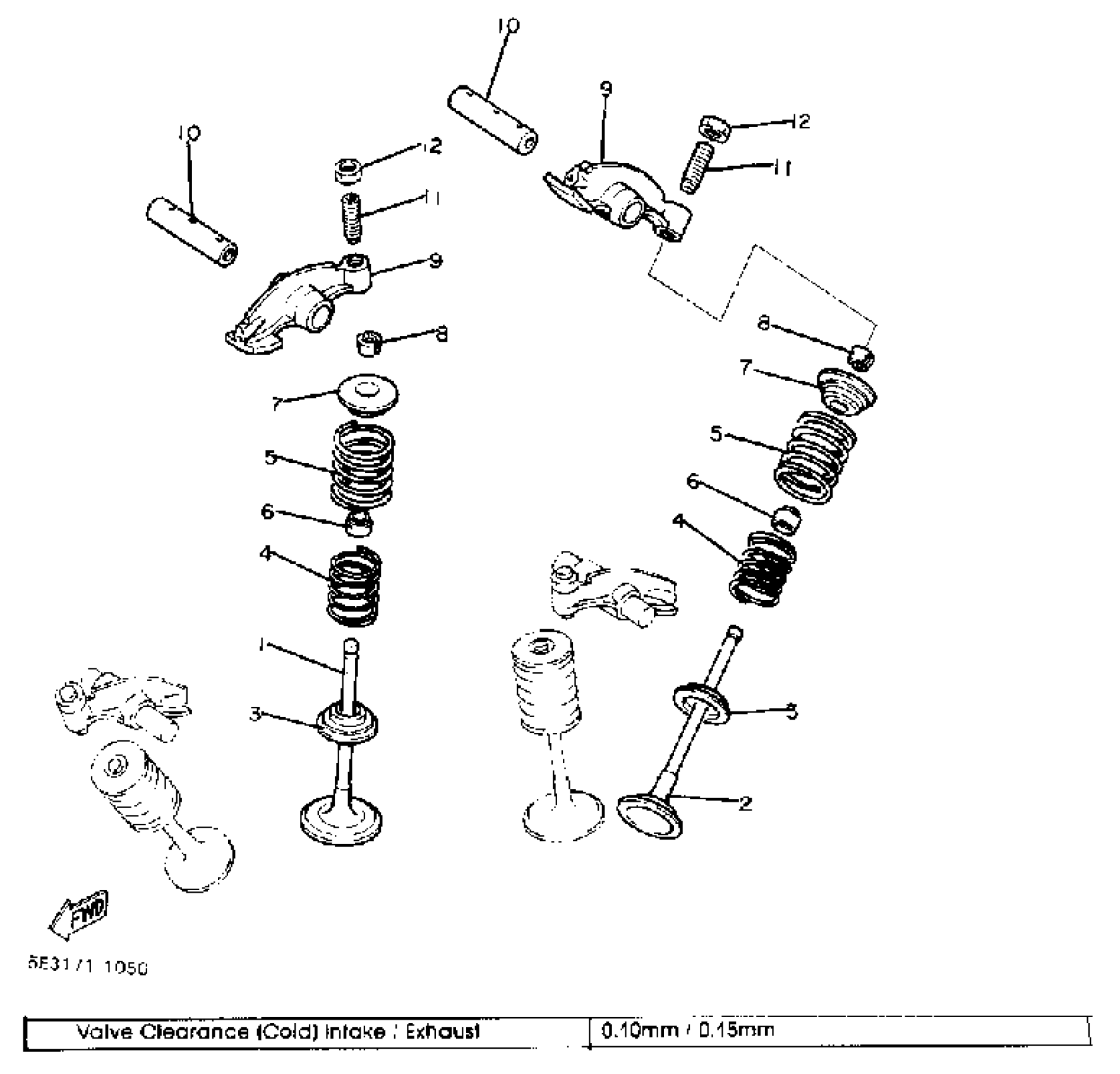

Yamaha XV750J (VIRAGO 750) 1982 VALVE Diagram

VALVE, INTAKE

4X7-12111-00-00

Unavailable

VALVE, EXHAUST

4X7-12121-00-00

Unavailable

SEAT, VALVE SPRING

4X7-12116-00-00

$14.49

SPRING, COMPRESSION (1T1)

90501-44455-00

$16.99

SEAL, VALVE STEM OIL

341-12119-02-00

$18.49

RETAINER, VALVE SPRING

4X7-12117-00-00

$33.99

COTTER, VALVE

4X7-12118-00-00

$7.99

ARM, VALVE ROCKER

42X-12151-00-00

$109.99

SHAFT, ROCKER 2

4X7-12156-02-00

$23.99

SCREW, VALVE ADJUSTING

4X7-12159-00-00

Unavailable

NUT, HEXAGON

90170-08173-00

$8.49
