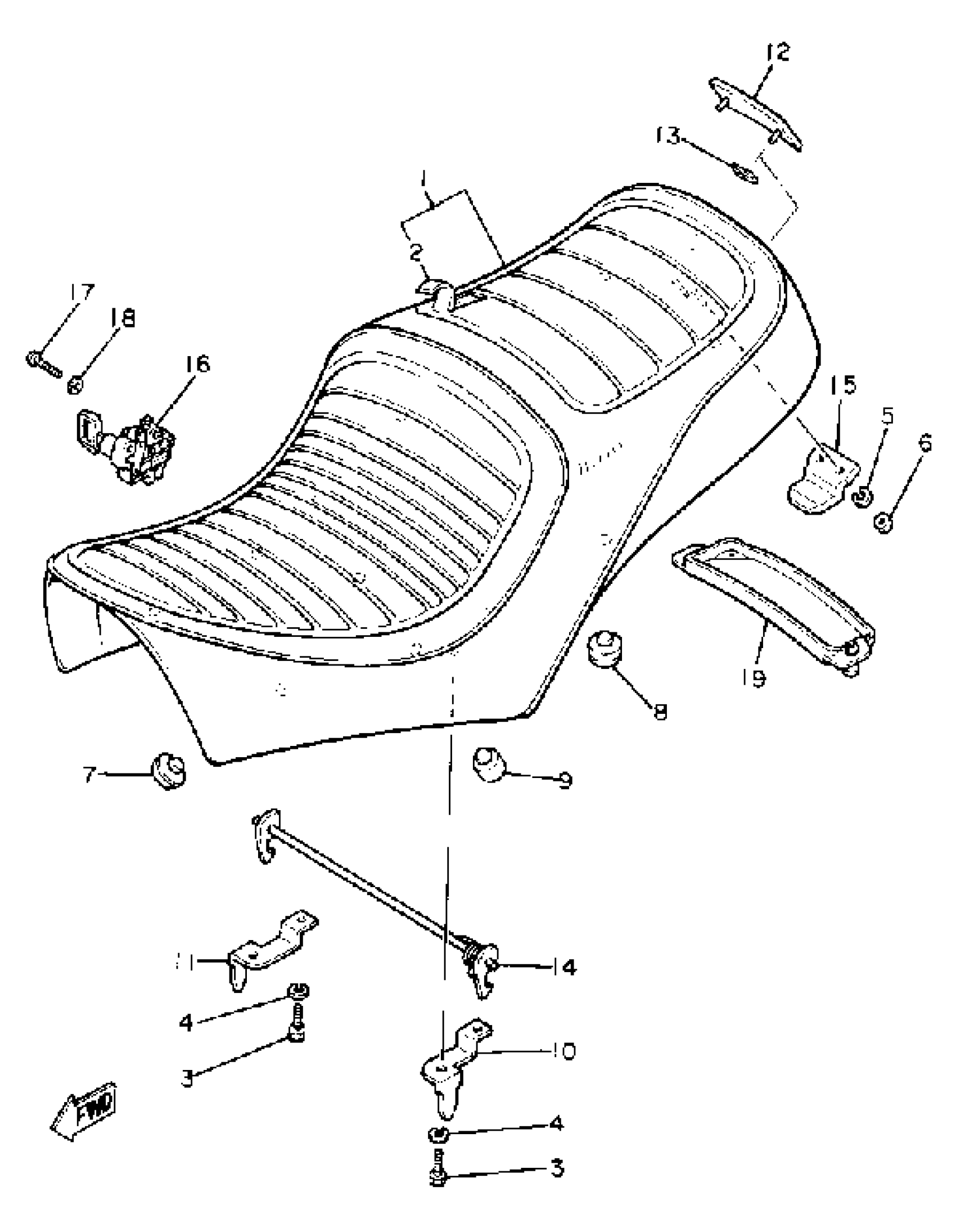

Yamaha XV750H (VIRAGO 750) 1981 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY (4X7-W2472-00)

5G5-W2472-00-00

Unavailable

2

. COVER, DOUBLE SEAT

4X7-24731-00-00

Unavailable

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER, SPRING

92995-06100-00

Unavailable

6

NUT, HEXAGON

95380-06600-00

Unavailable

7

PAD, SEAT

1L9-24741-00-00

$9.99

8

PAD, SEAT

1T4-24741-00-00

Unavailable

9

STOPPER, MAIN STAND

371-27114-00-00

$7.99

10

BRACKET, SEAT

4X7-24728-00-00

Unavailable

11

BRACKET, SEAT

4X7-24738-00-00

Unavailable

12

EMBLEM

25G-24786-00-00

Unavailable

13

NUT SPRING 116283170100

90183-04005-00

$10.49

14

LEVER, SEAT

4X7-24776-01-00

Unavailable

15

BRACKET, SEAT

4X7-24748-00-00

Unavailable

16

SEAT LOCK ASSEMBLY

4X7-24705-00-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable

19

LID 1

4X7-2473T-02-00

Unavailable
