FRONT FORK

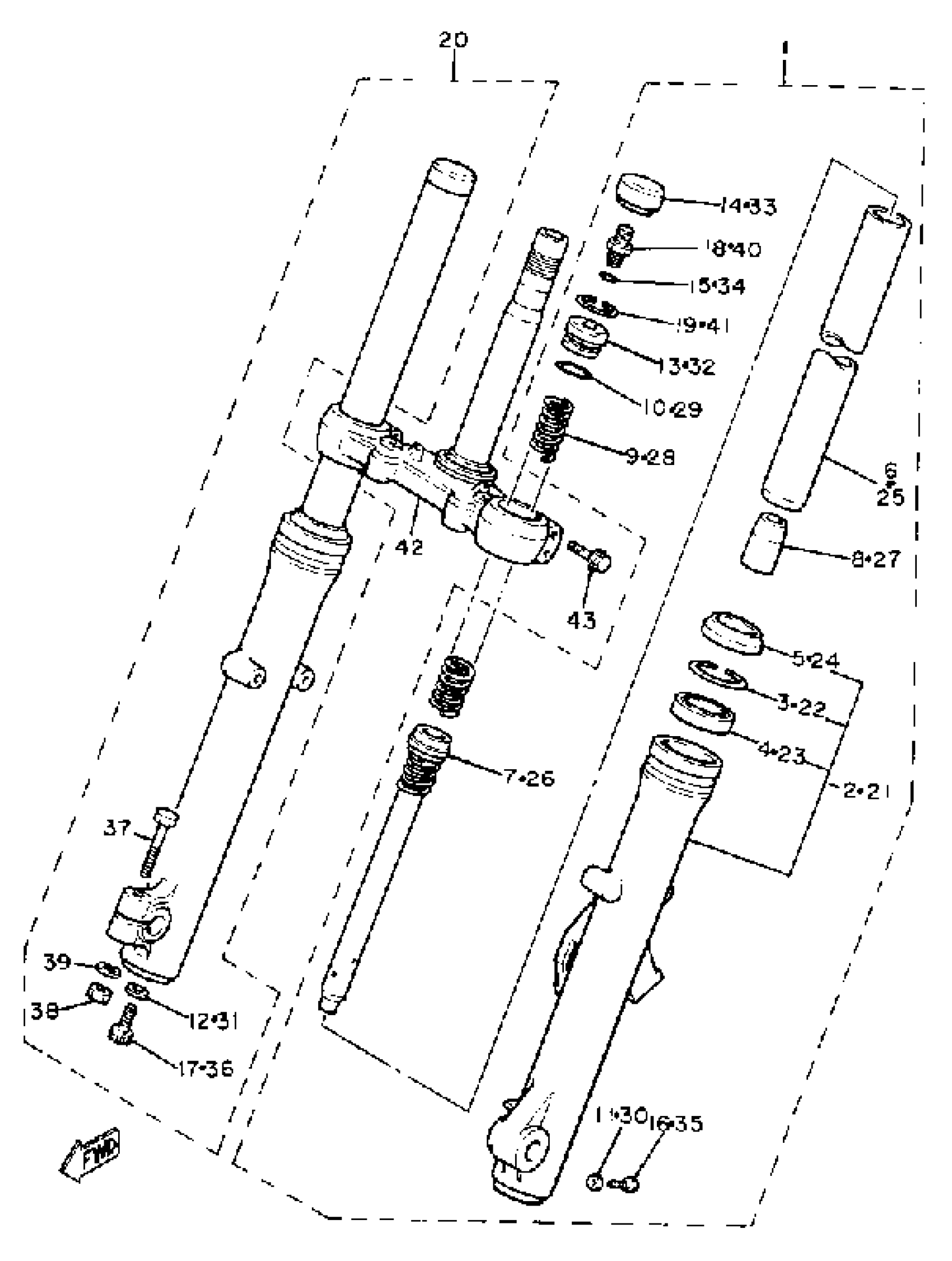

Yamaha XV750H (VIRAGO 750) 1981 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY L
(4X7-23102-00-00)
Unavailable
2
. TUBE, OUTER 1
4H7-23126-00-00
Unavailable
6
. INNER TUBE 1
4X7-23110-00-00
Unavailable
7
. CYLINDER, FRTFRK
4K0-23170-00-00
Unavailable
9
SPRING, FRONT FORK
(4X7-23141-00-00)
Unavailable
13
. BOLT, CAP
3J2-23111-00-00
Unavailable
14
. CAP, FRONT FORK
4X7-23168-00-00
Unavailable
16
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
17
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
18
AIR VALVE COMP.
4V4-23190-L0-00
Unavailable
19
RING, SNAP
3J2-23183-00-00
Unavailable
20
FRONT FORK ASSEMBLY R
4X7-23103-00-00
Unavailable
21
. TUBE, OUTER 2
22U-23136-01-38
Unavailable
25
. INNER TUBE 1
4X7-23110-00-00
Unavailable
26
. CYLINDER, FRTFRK
4K0-23170-00-00
Unavailable
28
SPRING, FRONT FORK
(4X7-23141-00-00)
Unavailable
32
. BOLT, CAP
3J2-23111-00-00
Unavailable
33
. CAP, FRONT FORK
4X7-23168-00-00
Unavailable
35
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
36
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
37
BOLT
97013-08045-00
Unavailable
38
NUT(6L2)
95333-08600-00
Unavailable
39
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
40
AIR VALVE COMP.
4V4-23190-L0-00
Unavailable
41
RING, SNAP
3J2-23183-00-00
Unavailable
42
UNDER BRACKET (4X7-23340-00-33)
5G5-23340-00-33
Unavailable
43
BOLT, AXLE HOLDER
18G-23128-00-00
Unavailable
