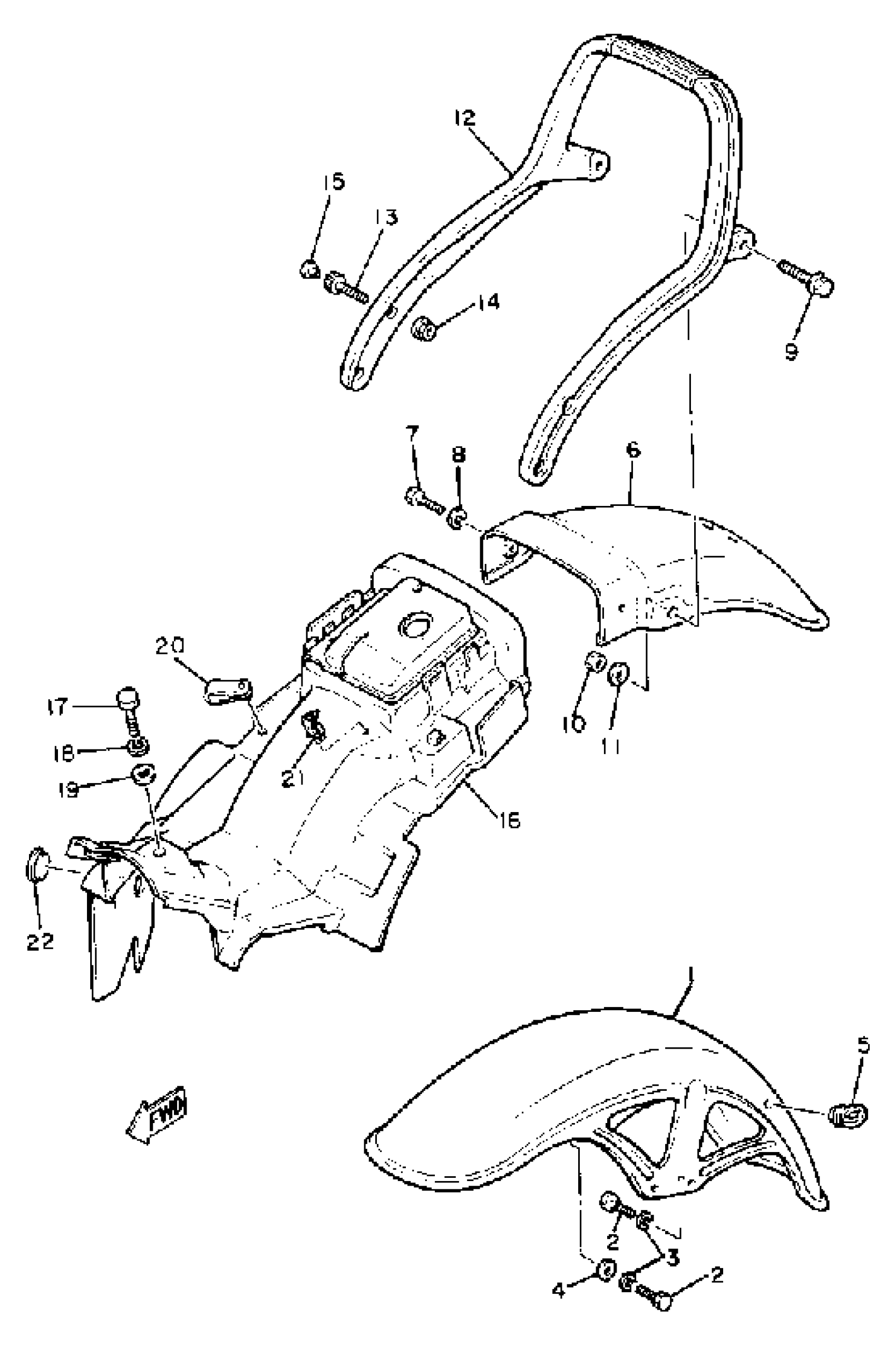

Yamaha XV750H (VIRAGO 750) 1981 FENDER Diagram
#
Description
Price
1
FENDER, FRONT
4X7-21501-00-93
Unavailable
4
WASHER, PLAIN
92990-08200-00
Unavailable
5
HOLDER, WIRE
1A0-21518-00-00
Unavailable
6
FENDER, REAR
4X7-21610-01-93
Unavailable
8
WASHER, SPRING
92995-06100-00
Unavailable
12
STAY, REAR
4X7-21645-00-00
Unavailable
16
GUARD, MUD
4X7-21620-00-00
Unavailable
17
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
19
WASHER, PLATE
90201-06380-00
Unavailable
20
CLAMP (2H7)
90464-12027-00
Unavailable
21
CLAMP (1J7)
90464-16025-00
Unavailable
22
GROMMET (2A6)
90480-30167-00
Unavailable
