- XV750H (VIRAGO 750) 1981
ELECTRICAL 1

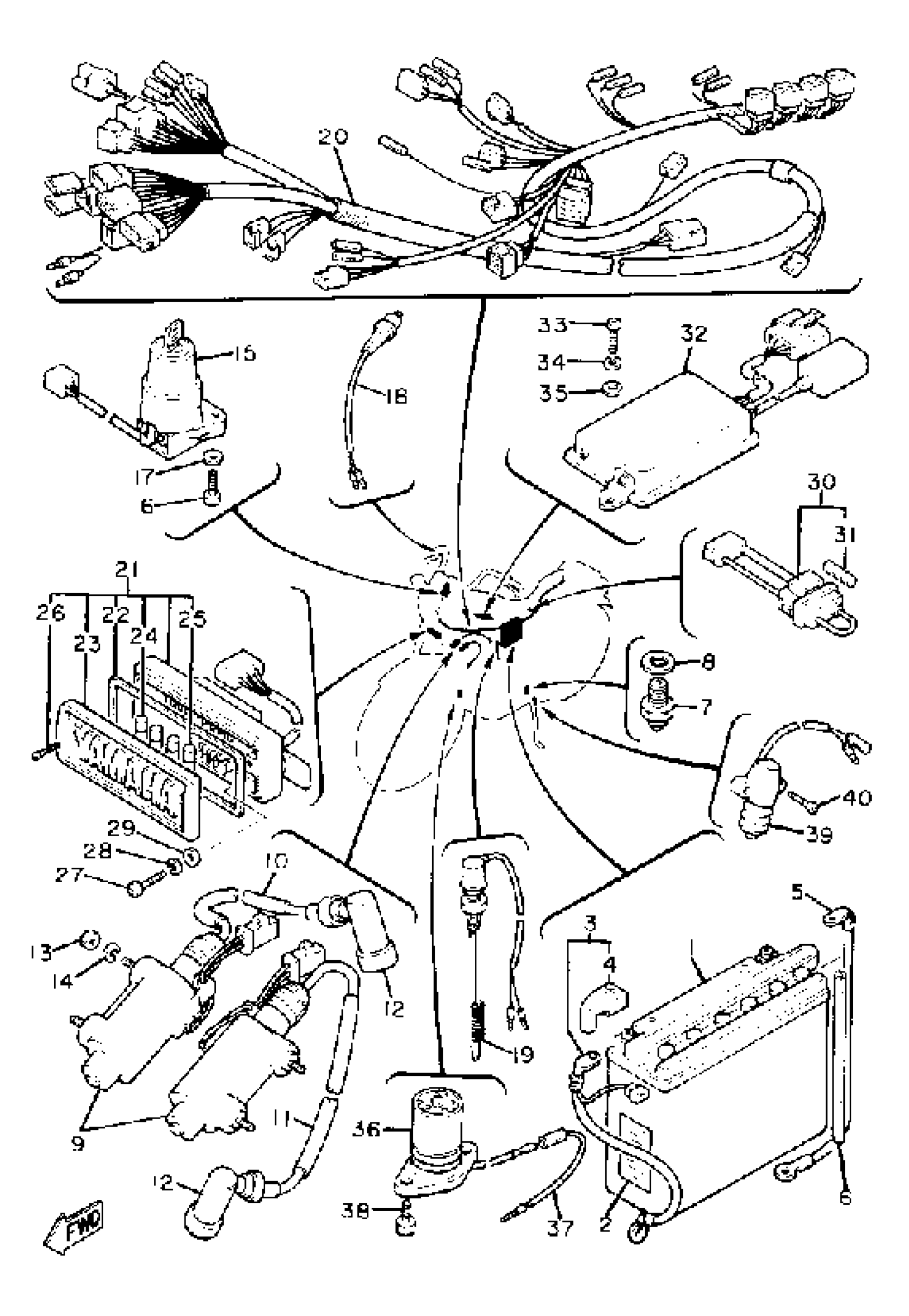

Yamaha XV750H (VIRAGO 750) 1981 ELECTRICAL 1 Diagram
#
1
YB16ALA2 YUASA BATTERY
YB1-6ALA2-00-00
Unavailable
2
LABEL, BATTERY
40A-82141-G0-00
Unavailable
3
WIRE, PLUS LEAD
4X7-82115-00-00
Unavailable
4
. COVER, LEAD WIRE
4X7-82119-00-00
Unavailable
5
WIRE, MINUS LEAD
4X7-82116-01-00
Unavailable
9
IGNITION COIL ASSEMBLY
4X7-82310-70-00
Unavailable
12
PLUG CAP ASSY
1J7-82370-00-00
Unavailable
12
PLUG CAP ASSY
1J7-82370-00-00
Unavailable
13
NUT, HEXAGON
95380-06600-00
Unavailable
14
WASHER, SPRING
92995-06100-00
Unavailable
15
MAIN SWITCH STEERING LOCK
3JV-82501-00-00
Unavailable
16
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
17
WASHER, PLAIN (646)
92990-06600-00
Unavailable
18
FRONT STOP SWITCH ASSY
26H-83980-00-00
Unavailable
19
STOP SWITCH ASSEMBLY
4X7-82530-02-00
Unavailable
20
WIRE HARNESS ASSEMBLY (4X7-82590-50)
4X7-82590-51-00
Unavailable
21
. FUSE BOX ASSEMBLY
4X7-82170-00-00
Unavailable
22
GASKET
(4X7-82175-00-00)
Unavailable
23
. COVER, FUSE BOX
4X7-82172-00-00
Unavailable
24
FUSE (12V-15A)
4X7-82151-00-00
Unavailable
25
FUSE
1A0-82151-00-00
Unavailable
26
SCREW, FLAT
98707-04010-00
Unavailable
27
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
WASHER, PLATE
90201-06048-00
Unavailable
30
. FUSE HOLDER ASSEMBLY
4X7-82150-00-00
Unavailable
31
FUSE
1A0-82161-00-00
Unavailable
32
IGNITOR UNIT ASSEMBLY 1 (4X7-82305-20)
4X7-82305-21-00
Unavailable
33
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
34
WASHER, SPRING
92995-06100-00
Unavailable
35
WASHER, PLAIN (646)
92990-06600-00
Unavailable
36
OIL LEVEL GAUGE ASSEMBLY
3JK-85720-00-00
Unavailable
37
WIRE, LEAD
4X7-85721-00-00
Unavailable
38
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
39
SWITCH, SIDE STAND
33E-82566-00-00
Unavailable
40
SCREW, FLAT
98707-05016-00
Unavailable
