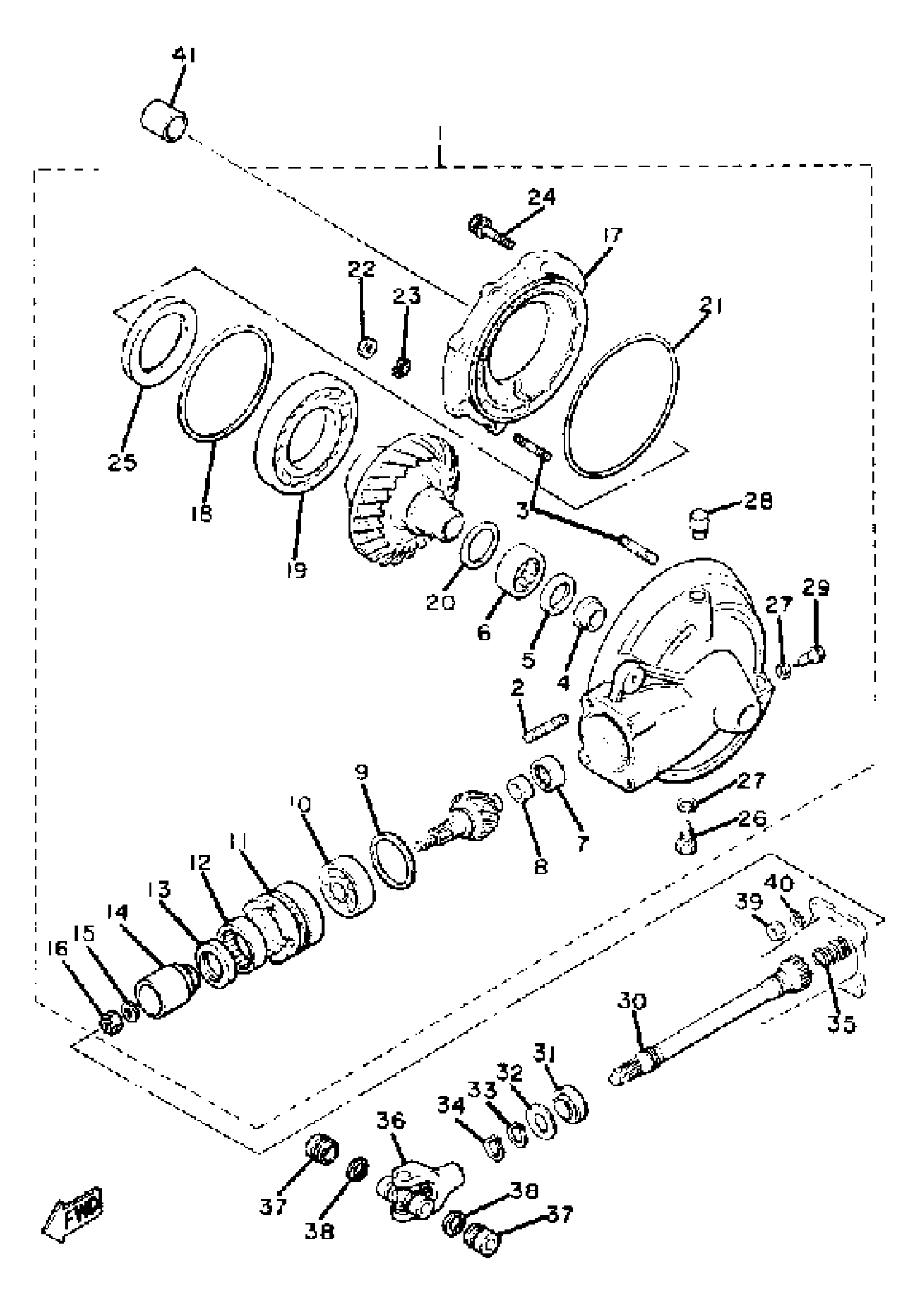

Yamaha XV750H (VIRAGO 750) 1981 DRIVE SHAFT Diagram

#

Description
Price

1

RR AXL GR CASE ASSEMBLY

(4X7-46101-01-00)

Unavailable

2

BOLT, STUD (5E5)

90116-10361-00

Unavailable

3

BOLT, STUD(2GG)

95617-08620-00

$7.49

4

COLLAR, GUIDE

4H7-46153-00-00

$27.99

5

OIL SEAL (30X42X7-1J7)

93101-30084-00

$18.99

6

BRG,CYL-CAL ROLLER 80G KY

93311-43729-00

Unavailable

7

BEARING ASSY

2H7-46102-00-00

$58.99

8

RACE, INNER

2H7-46122-00-00

$28.99

9

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

$4.47

9

SHIM, THRUST (0.40T)

1J7-17537-Y0-40

$4.47

9

SHIM, THRUST (0.50T)

1J7-17537-Y0-50

$4.47

10

BRG,R-B 6305RB1 62MM 245G KY

93306-30533-00

$137.99

11

RETAINER, BEARING

4H7-46125-00-00

$62.99

12

O-RING (4H7)

93210-60426-00

$10.49

13

OIL SEAL (4H7)

93101-38098-00

$17.99

14

COUPLING, GEAR

4H7-46123-01-00

Unavailable

15

WASHER, PLATE 11J7)

90201-14632-00

Unavailable

16

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

17

HOUSING, BEARING

4H7-46152-00-00

Unavailable

18

SHIM, RING GEAR (0.30T)

1J7-46117-Y0-30

Unavailable

18

. SHIM, RING GEAR (035T)

1J7-46117-Y0-35

Unavailable

18

SHIM, RING GEAR (0.40T)

1J7-46117-Y0-40

Unavailable

18

SHIM, RING GEAR (0.50T)

1J7-46117-Y0-50

Unavailable

19

BRG,R-B 16014C2 110MM 433G KY

93316-01403-00

Unavailable

20

. WASHER, THRUST

1J7-46118-Y0-18

Unavailable

20

. WASHER, THRUST

1J7-46118-Y0-19

Unavailable

20

. WASHER, THRUST

1J7-46118-Y0-20

Unavailable

20

. WASHER, THRUST

1J7-46118-Y0-21

Unavailable

20

. WASHER, THRUST

4H7-46118-00-14

Unavailable

20

. WASHER, THRUST

4H7-46118-00-15

Unavailable

20

. WASHER, THRUST

4H7-46118-00-16

Unavailable

20

. WASHER, THRUST

4H7-46118-00-17

Unavailable

20

. WASHER, THRUST

4H7-46118-00-22

Unavailable

20

. WASHER, THRUST

4H7-46118-00-23

Unavailable

21

O-RING (1J7)

93211-44348-00

Unavailable

22

NUT(6L2)

95333-08600-00

Unavailable

23

WASHER(6TA)

92907-08700-00

Unavailable

24

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

25

OIL SEAL (4H7)

93102-70167-00

Unavailable

26

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

27

GASKET

214-11198-01-00

Unavailable

28

BREATHER COMP.

2H7-17590-00-00

Unavailable

29

PLUG, STRAIGHT SCREW

90340-14004-00

Unavailable

30

SHAFT, DRIVE

4X7-46172-00-00

Unavailable

31

OIL SEAL(1FK)

93108-43013-00

Unavailable

32

WASHER, PLATE (4H7)

90201-231A2-00

Unavailable

33

CIRCLIP (4H7)

93410-23056-00

Unavailable

34

CIRCLIP (537)

93410-22039-00

Unavailable

35

SPRING, COMPRESSION (2H7)

90501-16491-00

Unavailable

36

CROSS JOINT COMP.

4X7-46180-00-00

Unavailable

37

BEARING(2HR)

93399-99926-00

Unavailable

38

CIRCLIP (4X7)

93440-20088-00

Unavailable

39

NUT(3BM)

95314-10600-00

Unavailable

40

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

41

COLLAR (4H7)

90387-172A5-00

Unavailable
