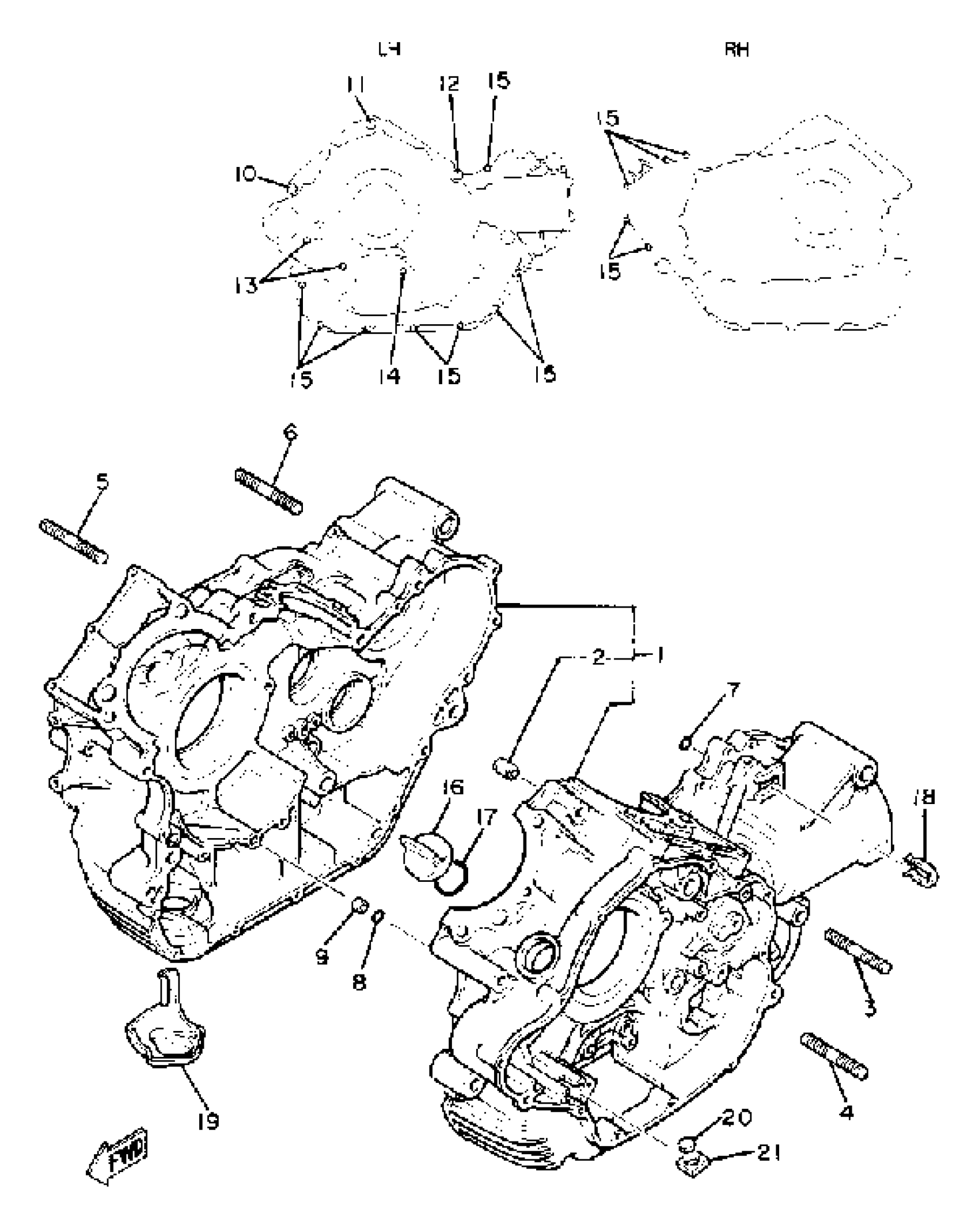

Yamaha XV750H (VIRAGO 750) 1981 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASY
4X7-15100-05-00
Unavailable
1
CRANKCASE ASY
4X7-15100-05-00
Unavailable
3
BOLT, STUD
(95611-10660-00)
Unavailable
4
BOLT, STUD
95617-10630-00
Unavailable
5
BOLT, STUD
95611-10690-00
Unavailable
6
BOLT, STUD
(95611-10635-00)
Unavailable
9
COLLAR
90387-06704-00
Unavailable
11
BOLT,SOCKET
91317-10070-00
Unavailable
12
BOLT,SOCKET
91314-10060-00
Unavailable
15
BOLT, SOCKET
91314-06030-00
Unavailable
16
PLUG, OIL
371-15363-00-00
Unavailable
17
O-RING (371)
93210-29198-00
Unavailable
18
CLAMP
90465-10168-00
Unavailable
19
PROTECTOR
4X7-15491-00-00
Unavailable
20
PLUG
4X7-13419-00-00
Unavailable
21
GROMMET
90480-20302-00
Unavailable
