- XV750H (VIRAGO 750) 1981
AIR FILTER

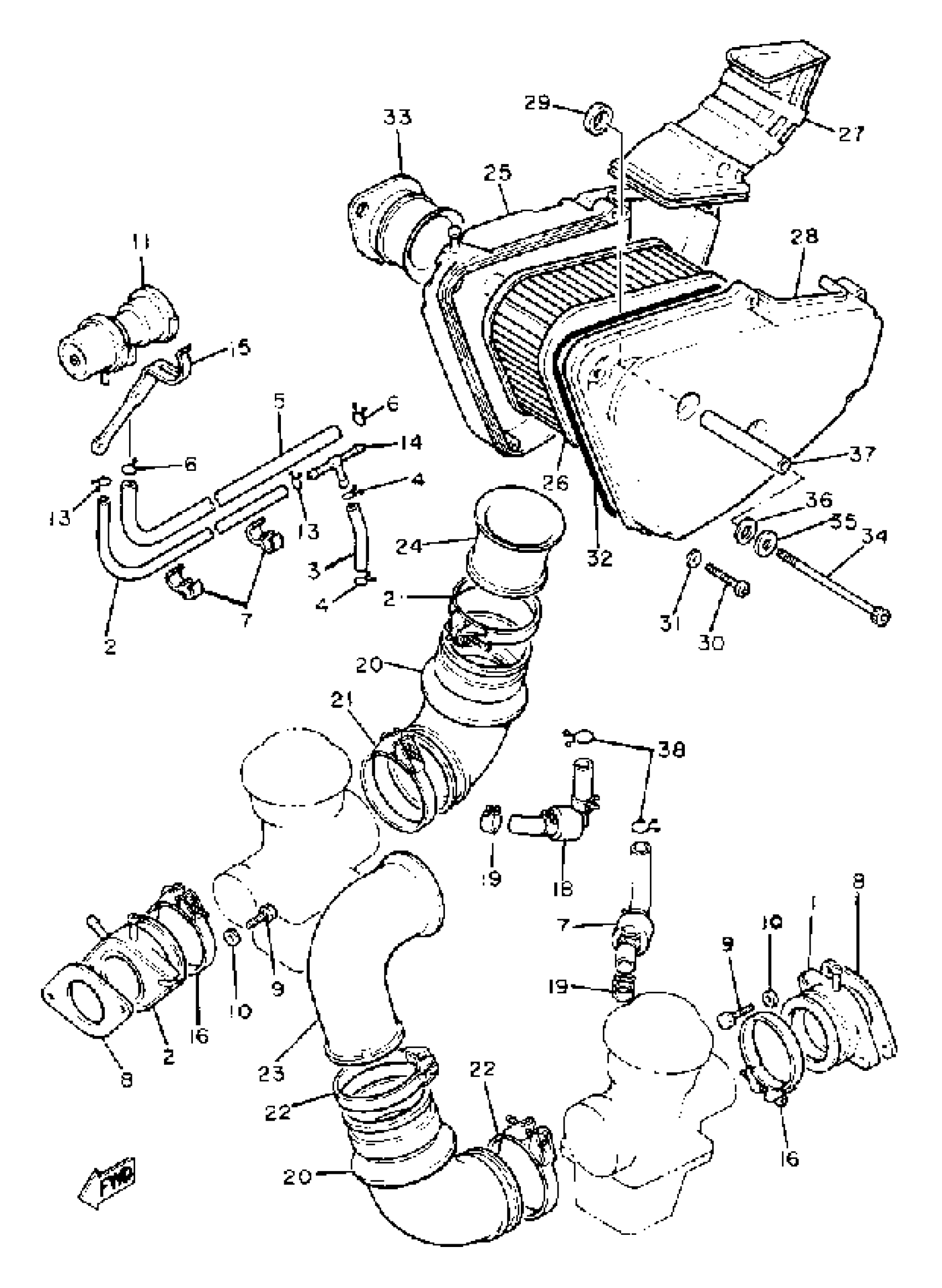

Yamaha XV750H (VIRAGO 750) 1981 AIR FILTER Diagram
#
1
. JOINT, CARBURETOR 1
10L-13586-01-00
Unavailable
1
JOINT, CARB (LH-4X7) (10L-13586-00)
99999-01416-00
Unavailable
2
. JOINT, CARBURETOR 2
10L-13596-01-00
Unavailable
2
JOINT, CARB (RH-4X7) (10L-13596-00)
99999-01417-00
Unavailable
3
. HOSE, VAC SENSING 2
4X7-13544-00-00
Unavailable
5
HOSE, AIR
4X7-13543-01-00
Unavailable
7
CLIP
90468-02111-00
Unavailable
10
WASHER, PLAIN (646)
92990-06600-00
Unavailable
11
VALVE, MIX CONTROL
4X7-13541-00-00
Unavailable
12
HOSE, VAC SENSING 1
4X7-13542-00-00
Unavailable
13
CLIP (1J7)
90467-07029-00
Unavailable
14
JOINT, CARBURETOR
4X7-13595-00-00
Unavailable
15
CLAMP
90462-08092-00
Unavailable
17
PIPE, AIRVENT
4X7-14197-02-00
Unavailable
18
HOSE
4X7-14987-02-00
Unavailable
19
CLIP (4X7)
90467-15054-00
Unavailable
20
JOINT, AIR CLEANER 1
4X7-14453-01-00
Unavailable
21
CLAMP, HOSE 1
1D6-11387-00-00
Unavailable
22
CLAMP, HOSE 1
1D6-11387-00-00
Unavailable
23
FUNNEL, AIR
4X7-14469-00-00
Unavailable
24
FUNNEL
4X7-14479-00-00
Unavailable
25
AIR CLEANER CASE ASSEMBLY
4X7-14401-00-00
Unavailable
26
ELEMENT, AIR CLEANER
4X7-14451-00-00
Unavailable
27
DUCT
4X7-14437-00-00
Unavailable
28
CAP, CLEANER CASE 2
4X7-14422-00-00
Unavailable
29
SEAL
4X7-14457-00-00
Unavailable
30
SCREW, PAN HEAD
98517-05030-00
Unavailable
31
WASHER, PLAIN (646)
92990-05600-00
Unavailable
32
SEAL
1VJ-14462-00-00
Unavailable
33
PIPE, SILENCER
4X7-1441J-00-00
Unavailable
34
BOLT,SOCKET HEAD
91311-06100-00
Unavailable
35
WASHER, PLATE
90201-06M02-00
Unavailable
36
WASHER, PLATE (5E3)
90202-10120-00
Unavailable
37
SPACER
90560-06203-00
Unavailable
38
CLIP (371)
90467-14015-00
Unavailable
