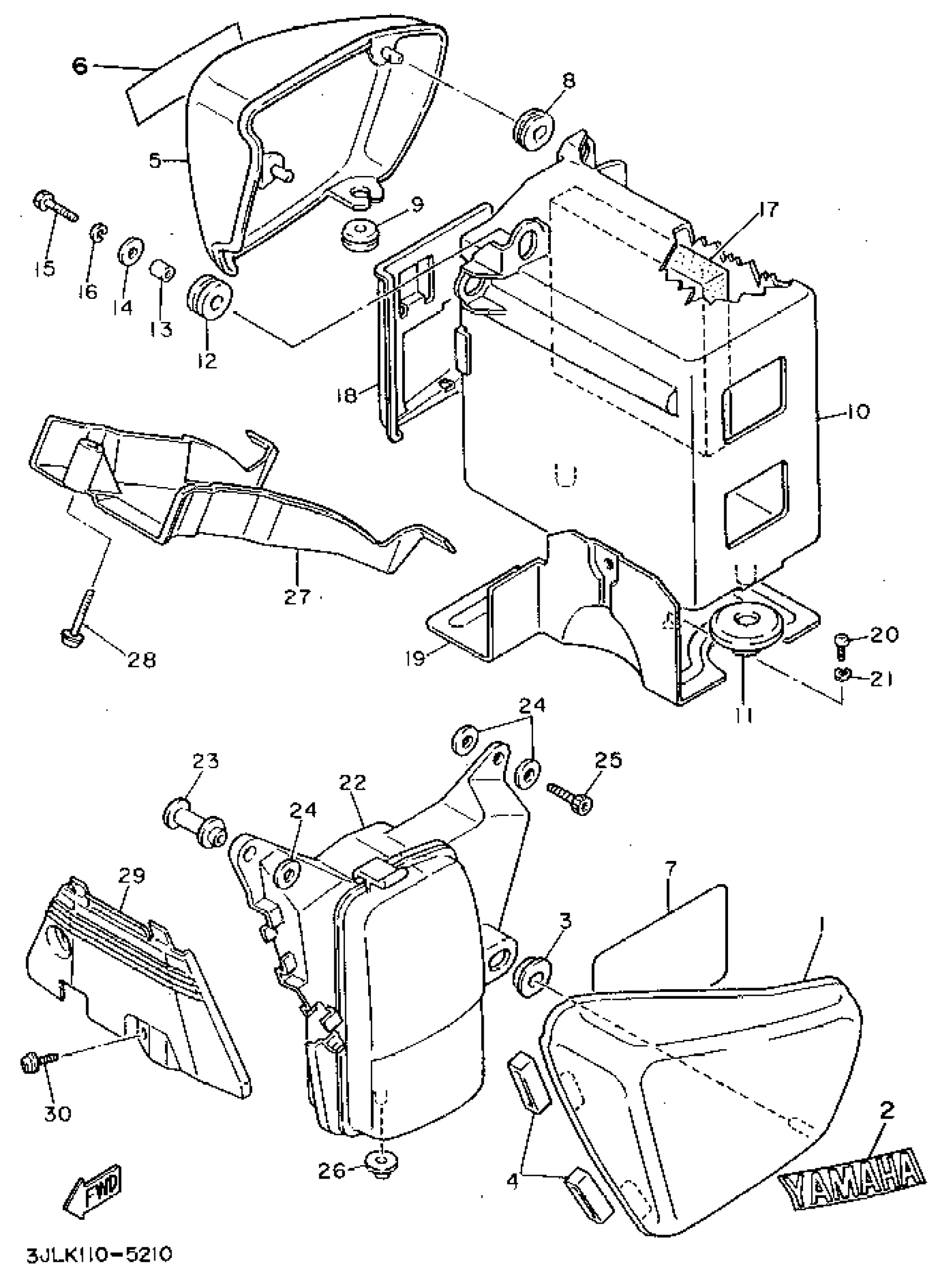

Yamaha XV750GC (VIRAGO 750 CA) 1995 SIDE COVER Diagram
#
Description
Price
1
COVER, SIDE 1
42X-21711-00-FE
Unavailable
1
COVER, SIDE 1
42X-21711-00-MK
Unavailable
5
COVER, SIDE 2
42X-21721-00-MK
Unavailable
7
PLATE, EPA 1
3JL-2179R-60-00
Unavailable
7
PLATE, EPA 1
3JL-2179V-60-00
Unavailable
10
BOX, TOOL
42X-21171-00-00
Unavailable
11
GROMMET(42X)
90480-20384-00
Unavailable
12
GROMMET (2N3)
90480-16233-00
Unavailable
13
COLLAR
90387-06113-00
Unavailable
14
WASHER, PLATE
90201-06380-00
Unavailable
15
BOLT, HEXAGON
97017-06020-00
Unavailable
16
WASHER, SPRING
92907-06100-00
Unavailable
17
DAMPER
42X-21746-00-00
Unavailable
18
LID
42X-28185-00-00
Unavailable
19
COVER
42X-2172W-02-00
Unavailable
20
SCREW, PAN
98507-06010-00
Unavailable
21
WASHER, SPRING
92907-06100-00
Unavailable
22
BOX
42X-2177A-01-00
Unavailable
23
SPACER
90560-06258-00
Unavailable
24
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
25
BOLT,SOCKET
91317-06012-00
Unavailable
26
GROMMET(42G)
90480-10408-00
Unavailable
27
PLATE
42X-2176E-00-00
Unavailable
28
SCREW, WITH WASHER
90159-06110-00
Unavailable
29
COVER
42X-2117F-00-00
Unavailable
30
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
