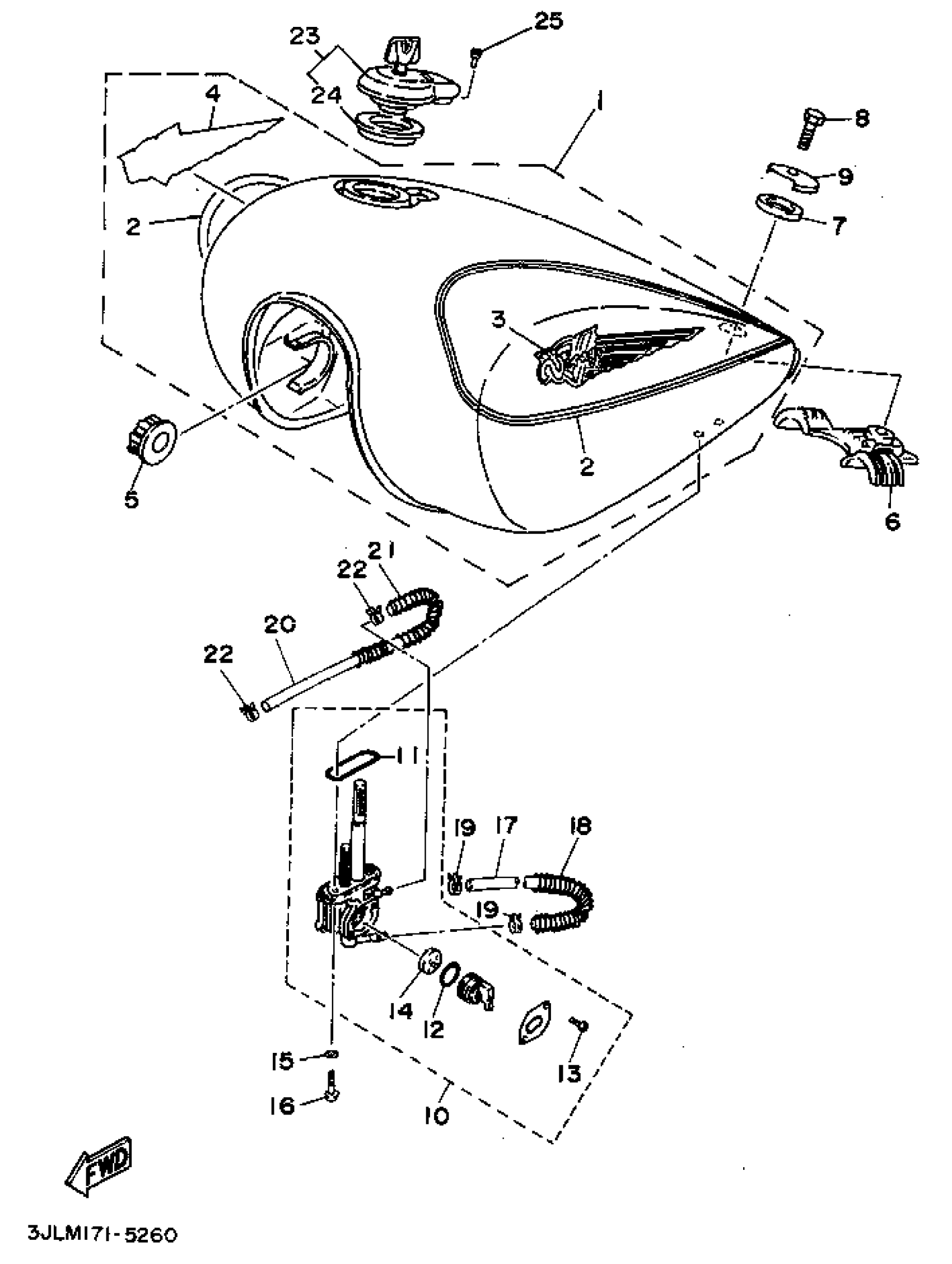

Yamaha XV750GC (VIRAGO 750 CA) 1995 FUEL TANK Diagram
#
Description
Price
1
FUEL TANK COMP.
1RM-24110-00-W1
Unavailable
1
FUEL TANK COMP.
1RM-24110-00-X9
Unavailable
2
. GRAPHIC SET (MATURE RED)
3JL-24240-70-00
Unavailable
2
. GRAPHIC SET (CUTE GREEN)
3JL-24240-80-00
Unavailable
3
. EMBLEM 1 (MATURE RED)
3JL-24161-10-00
Unavailable
3
. EMBLEM 1 (CUTE GREEN)
3JL-24161-20-00
Unavailable
4
. EMBLEM 2 (MATURE RED)
3JL-24162-10-00
Unavailable
4
. EMBLEM 2 (CUTE GREEN)
3JL-24162-20-00
Unavailable
6
DAMPER, LOCATING 2
42X-24182-00-00
Unavailable
12
SEAL, COCK
1JK-24534-00-00
Unavailable
13
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
14
VALVE, FUEL COCK
3H3-24523-00-00
Unavailable
15
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
16
SCREW 256241430000
90149-06011-00
Unavailable
17
PIPE 10
3AL-24321-00-00
Unavailable
18
SPRING, COMPRESSION (27Y)
90501-08728-00
Unavailable
19
CLIP(3BM)
90467-10135-00
Unavailable
20
HOSE
42X-2416A-00-00
Unavailable
21
SPRING, COMPRESSION
90501-085L6-00
Unavailable
22
CLIP(41W)
90467-08092-00
Unavailable
23
CAP ASSY
4X7-24602-10-00
Unavailable
24
GASKET, TANK CAP
4X7-24612-00-00
Unavailable
25
BOLT, SOCKET
91314-05010-00
Unavailable
