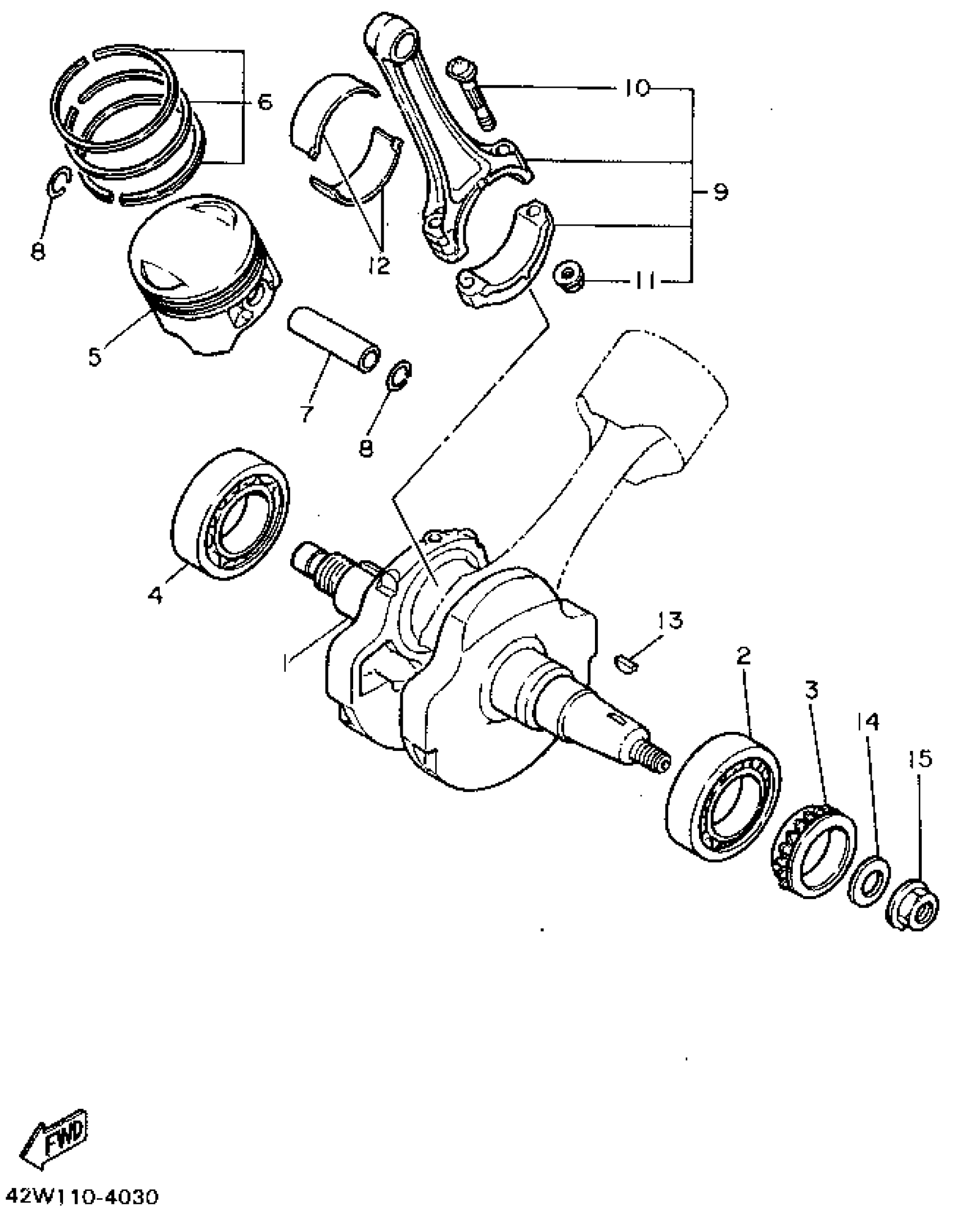

Yamaha XV750GC (VIRAGO 750 CA) 1995 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

4X7-11411-02-00

Unavailable

2

BEARING(3EF)

93306-30808-00

Unavailable

3

SPROCKET, DRIVE

4X7-13354-00-00

Unavailable

4

BEARING(3EF)

93306-30808-00

Unavailable

5

PISTON STD

42Y-11631-00-A0

Unavailable

5

PISTON 2 O/S 0.50

42Y-11636-00-00

Unavailable

5

PISTON 4 O/S 1.00

42Y-11638-00-00

Unavailable

6

PISTON RING SET (STD)

4GB-11610-00-00

$67.99

6

PISTON RING SET (0.50MM O/S)

4GB-11610-20-00

Unavailable

6

PISTON RING SET (1.00MM O/S)

4GB-11610-40-00

Unavailable

7

PIN, PISTON

4X7-11633-00-00

Unavailable

8

CIRCLIP 341116340000

93450-22027-00

$7.49

9

CONNECTING ROD ASSEMBLY

4X7-11650-00-00

Unavailable

10

BOLT, CONNECTING ROD

4X7-11654-01-00

$6.99

11

NUT (11H)

90179-09379-00

$8.49

12

PLANE BEARING, CONNECTING ROD

4X7-11656-00-00

Unavailable

12

PLANE BEARING, CONNECTING ROD

4X7-11656-10-00

Unavailable

12

PLANE BEARING, CONNECTING ROD

4X7-11656-20-00

Unavailable

12

PLANE BEARING, CONNECTING ROD

4X7-11656-30-00

Unavailable

12

PLANE BEARING, CONNECTING ROD

4X7-11656-40-00

Unavailable

13

KEY, WOODRUFF

90280-05001-00

Unavailable

14

WASHER, PLATE(10L)

90201-165H4-00

Unavailable

15

NUT(10L)

90179-16448-00

Unavailable
