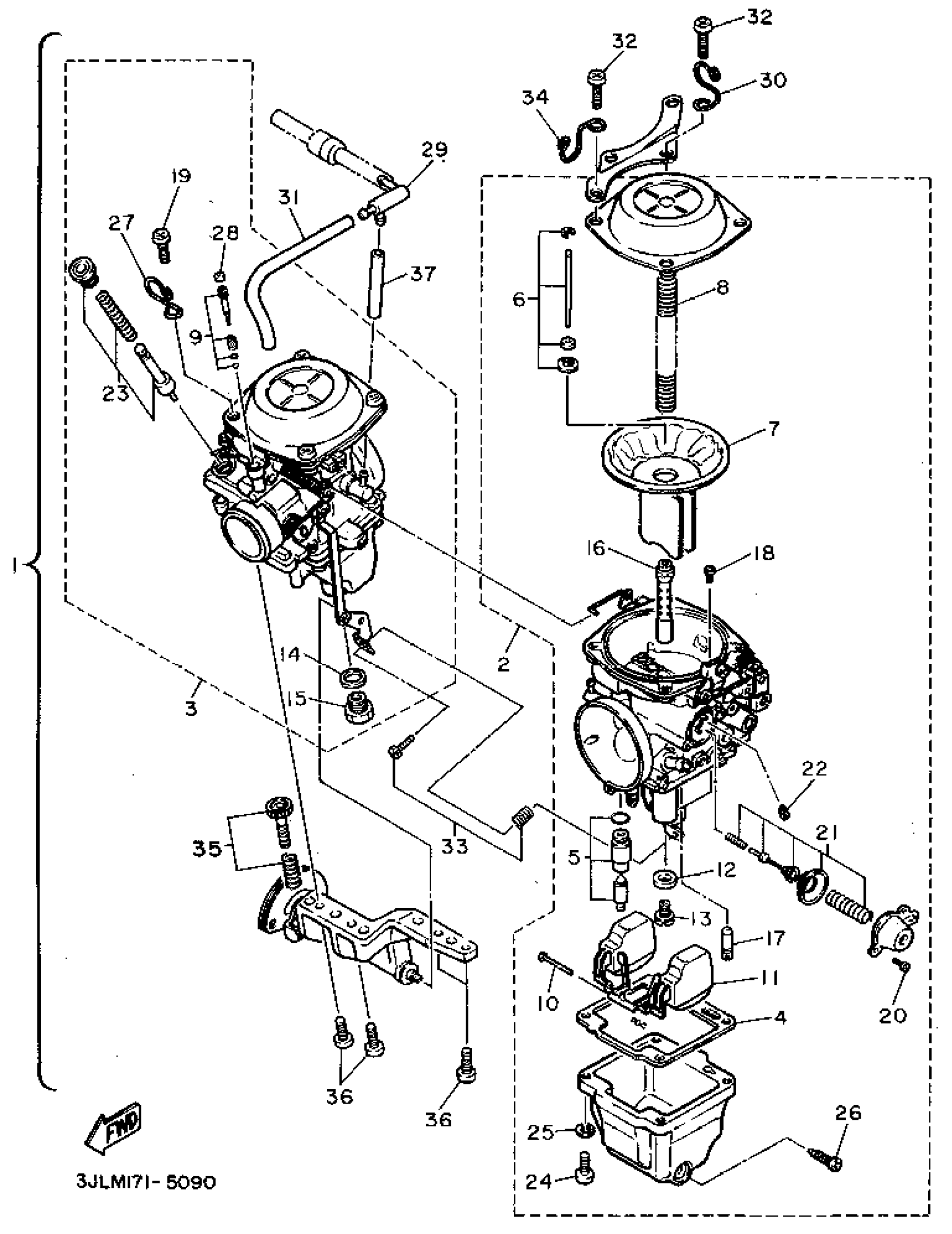

Yamaha XV750GC (VIRAGO 750 CA) 1995 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY
3AL-14900-02-00
Unavailable
1
CARBURETOR ASSEMBLY
3CM-14900-01-00
Unavailable
2
. CARBURETOR ASSEMBLY 1
3CM-14901-01-00
Unavailable
2
. CARBURETOR ASSEMBLY 1
3CM-14901-01-00
Unavailable
3
CARBURETOR ASY 2
3CM-14902-01-00
Unavailable
3
CARBURETOR ASY 2
3CM-14902-01-00
Unavailable
4
GASKET, FLOAT CHAMBER
3CF-14984-01-00
Unavailable
7
DIAPHRAGM ASSY
3CF-14940-00-00
Unavailable
8
.. SPRING, DIAPHRAGM
3CF-14933-00-00
Unavailable
13
.. SCREW
3CF-14991-00-00
Unavailable
14
WASHER
256-14954-00-00
Unavailable
15
JET,MAIN #122.5
620-1423A-75-00
Unavailable
16
NOZZLE, MAIN
3CF-14141-94-00
Unavailable
17
JET, PILOT (# 40)
4G0-14142-40-00
Unavailable
18
JET, MAIN (# 60)
3G2-14231-12-00
Unavailable
19
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
20
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
21
.. DIAPHRAGM SET 5
3CF-1490H-00-00
Unavailable
22
JET, MAIN (#140)
1HX-14231-28-00
Unavailable
23
STARTER SET
3CF-1410A-00-00
Unavailable
24
SCREW, PAN HEAD(3YL)
98580-05014-00
Unavailable
25
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
26
PLUG, DRAIN
12R-14191-00-00
Unavailable
27
.. CLIP
2JU-14937-00-00
Unavailable
28
CAP
3F9-14118-00-00
Unavailable
29
. NIPPLE
3CF-14251-00-00
Unavailable
30
. CLIP
3CF-14937-00-00
Unavailable
31
PIPE,AIRVENT
3CG-14197-00-00
Unavailable
32
SCREW, PAN
98517-05012-00
Unavailable
33
. STOP SCREW SET
3CF-1490K-00-00
Unavailable
34
. CLIP
3CF-14919-00-00
Unavailable
35
THROTTLE SCREW SET
3CF-14103-01-00
Unavailable
36
SCREW, PAN HEAD(3YL)
98580-05014-00
Unavailable
37
. PIPE
3CF-14197-00-00
Unavailable
