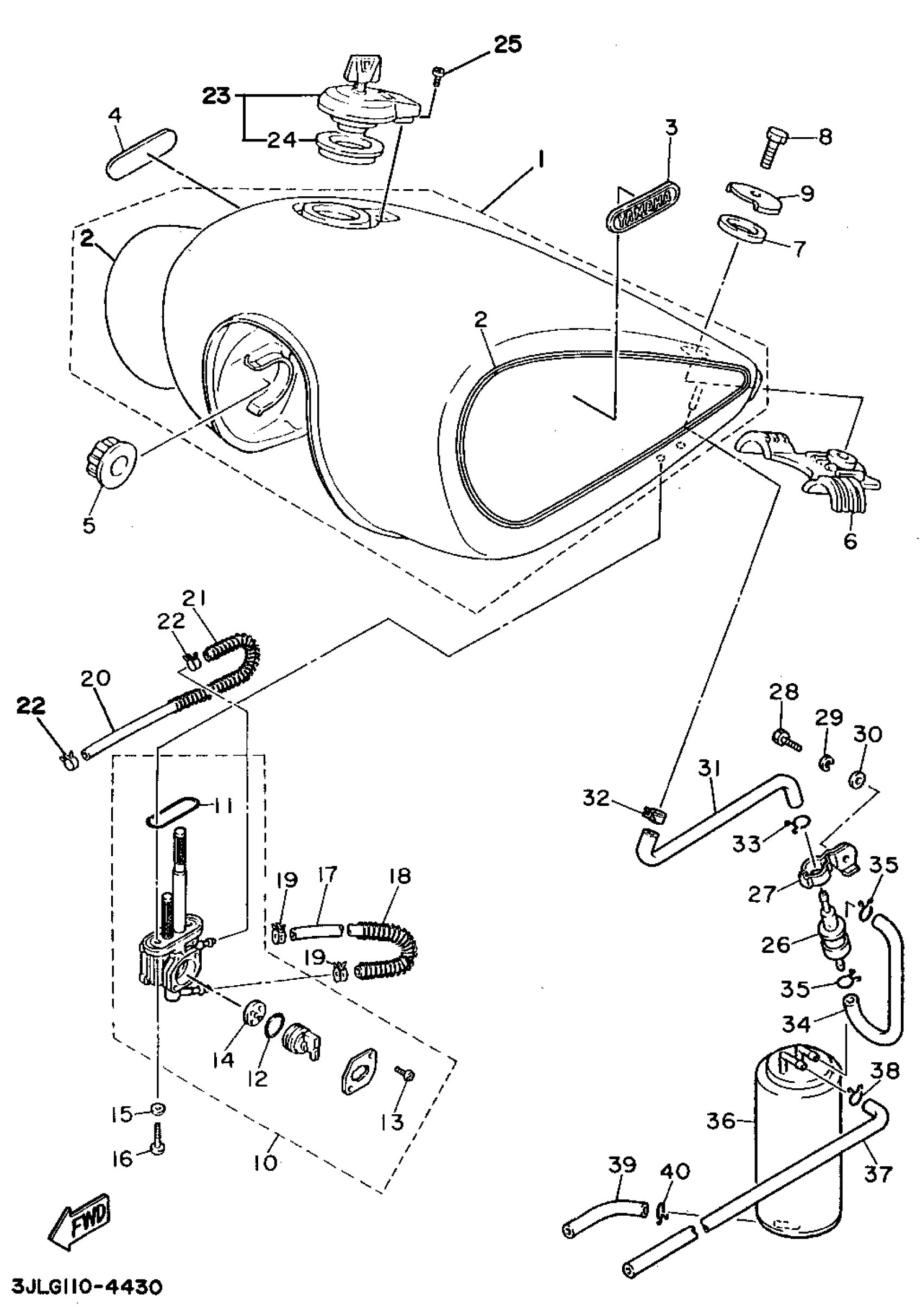

Yamaha XV750FC (VIRAGO 750 CA) 1994 FUEL TANK CALIFORNIA ONLY Diagram

FUEL TANK COMP.

1RV-24110-00-X6

Unavailable

. GRAPHIC SET

3JL-24240-50-00

Unavailable

EMBLEM 1 (ORION SILVER) (DEEP VIOLET)

1RM-24161-00-00

Unavailable

EMBLEM 2 (ORION SILVER) (DEEP VIOLET)

1RM-24162-00-00

Unavailable

DAMPER, LOCATING

4H7-24181-00-00

$6.99

DAMPER, LOCATING 2

42X-24182-00-00

Unavailable

DAMPER, LOCATING 3

42X-24183-00-00

$7.99

BOLT, HEXAGON

97013-08016-00

$1.01

WASHER, SPECIAL

42X-24186-00-00

$9.99

FUEL COCK ASSY 1

3AL-24500-00-00

$140.99

O-RING

4X8-24512-00-00

$8.99

SEAL, COCK

1JK-24534-00-00

$8.99

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

VALVE, FUEL COCK

3H3-24523-00-00

$31.99

WASHER, PLATE(3MB)

90202-05187-00

$1.38

SCREW 256241430000

90149-06011-00

Unavailable

PIPE 10

3AL-24321-00-00

Unavailable

SPRING, COMPRESSION (27Y)

90501-08728-00

Unavailable

CLIP(3BM)

90467-10135-00

Unavailable

HOSE

42X-2416A-00-00

Unavailable

SPRING, COMPRESSION

90501-085L6-00

Unavailable

CLIP(41W)

90467-08092-00

Unavailable

CAP ASSY

20K-24602-10-00

Unavailable

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

BOLT, SOCKET

91314-05010-00

Unavailable

ROLL OVER VALVE ASSY

25H-24180-00-00

Unavailable

HOLDER

42X-2419A-00-00

Unavailable

BOLT, HEXAGON

97017-06012-00

Unavailable

WASHER, SPRING

92907-06100-00

Unavailable

WASHER(6TA)

92907-06600-00

Unavailable

PIPE, JOINT 1

42X-24376-00-00

Unavailable

CLIP(41W)

90467-08092-00

Unavailable

CLIP

90467-090A2-00

Unavailable

PIPE, JOINT 3

42X-24377-00-00

Unavailable

CLIP

90467-090A2-00

Unavailable

CANISTER ASSEMBLY

42H-24170-00-00

Unavailable

HOSE (L730)

90445-105K7-00

Unavailable

CLIP

90467-090A2-00

Unavailable

HOSE (L198)

90445-11293-00

Unavailable

CLIP(1JH)

90467-11106-00

Unavailable
