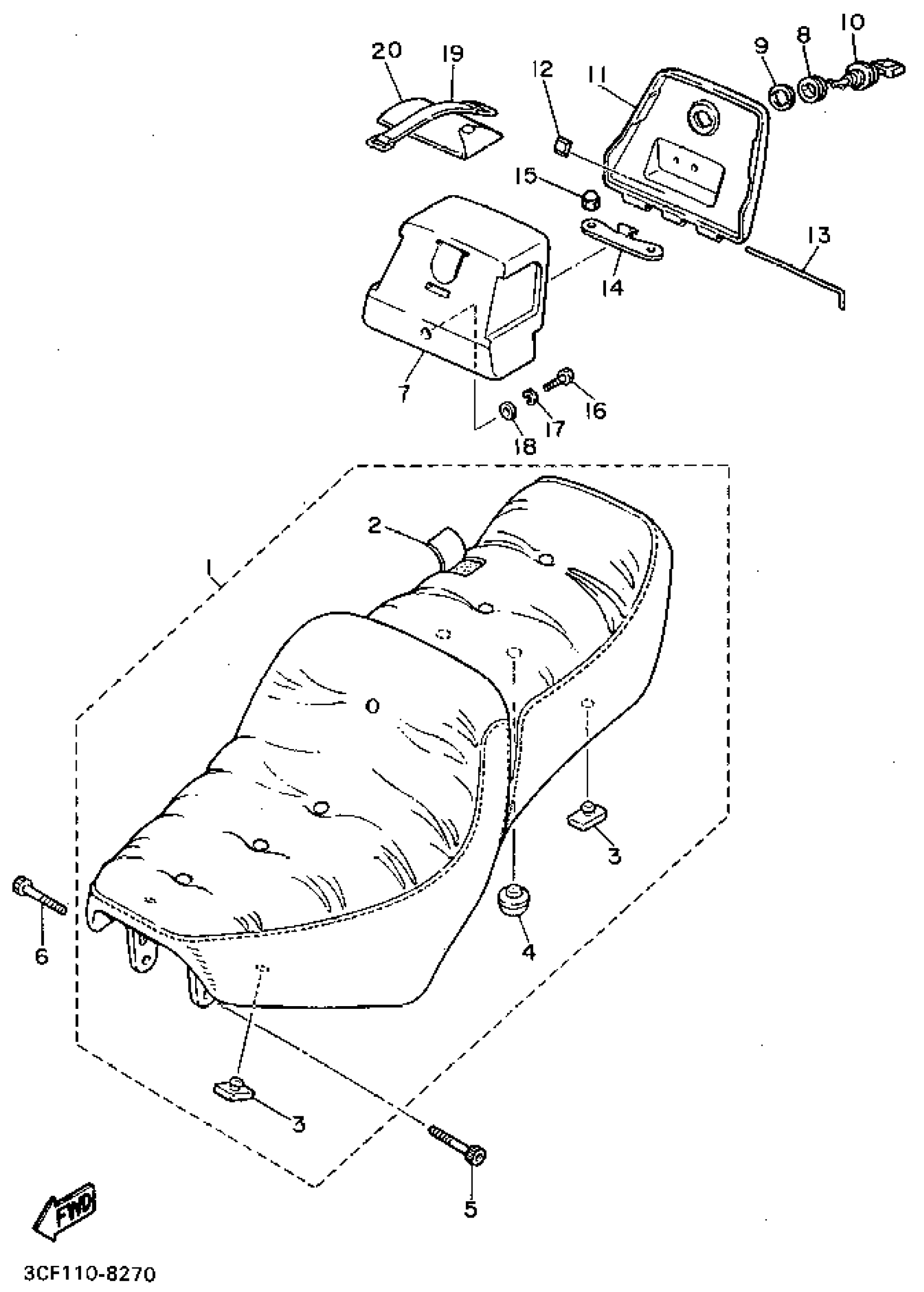

Yamaha XV750DC (VIRAGO 750 CA) 1992 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

3CF-24730-10-00

Unavailable

2

COVER, DOUBLE SEAT

3CF-24731-10-00

Unavailable

3

DAMPER, SEAT

509-24724-00-00

$9.02

4

PAD, SEAT

1L9-24741-00-00

$8.49

5

BOLT,SOCKET

91317-06016-00

$1.49

6

BOLT,SOCKET

91317-06055-00

$3.39

7

BOX 1

42X-2473R-00-00

Unavailable

8

GROMMET (1E6)

90480-24186-00

$6.35

9

WASHER, PLATE (8L8)

90201-225A4-00

$7.47

10

SIDE COVER LOCK ASSY

5A8-21708-00-00

Unavailable

11

LID 1

42X-2473T-00-00

Unavailable

12

DAMPER, SEAT

3CF-24723-00-00

Unavailable

13

PIN, HINGE

42X-2177K-00-00

Unavailable

14

PLATE 1

1RM-2162G-00-00

Unavailable

15

NUT, CROWN (21G)

90176-06041-00

$2.61

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

17

WASHER, SPRING

92995-06100-00

$2.83

18

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

19

BAND, TOOL

5H9-21376-00-00

Unavailable

20

TOOL KIT

5A8-W2810-01-00

Unavailable
