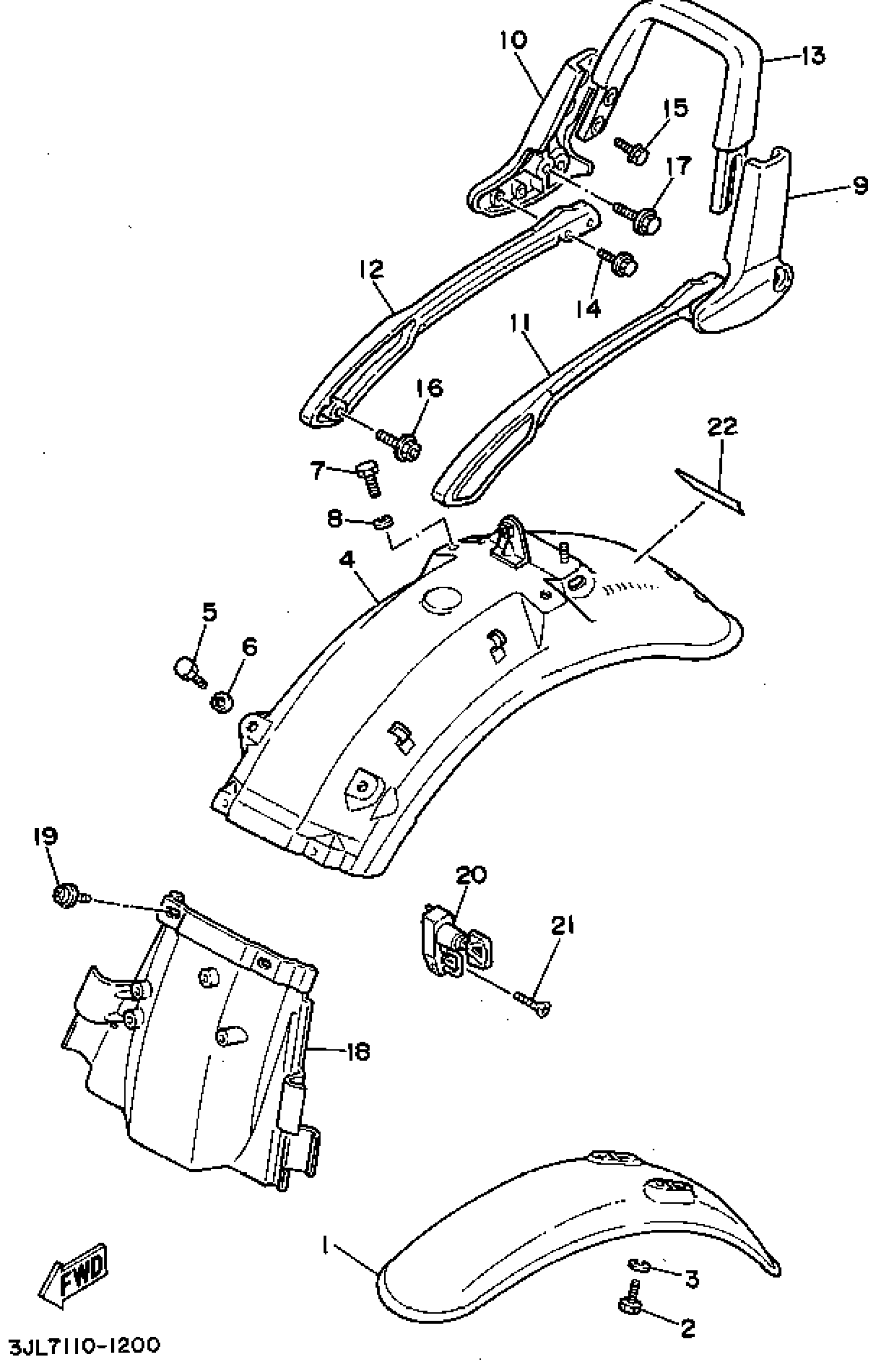

Yamaha XV750DC (VIRAGO 750 CA) 1992 FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP
1MY-21510-00-R0
Unavailable
3
WASHER, SPRING
92995-06100-00
Unavailable
4
REAR FENDER COMP
1RM-21610-01-R0
Unavailable
6
WASHER, SPRING
92995-06100-00
Unavailable
9
STAY 1
1RM-2164F-00-00
Unavailable
10
STAY 2
1RM-2164G-00-00
Unavailable
11
STAY 3
1RM-2164H-00-00
Unavailable
12
STAY 4
1RM-2164J-00-00
Unavailable
13
GRIP 1
55R-2164A-02-00
Unavailable
16
SCREW
90149-08225-00
Unavailable
17
BOLT, FLANGE
90105-10153-00
Unavailable
18
GUARD, MUD
42X-21629-00-00
Unavailable
19
SCREW, WITH WASHER
90159-06128-00
Unavailable
20
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
21
SCREW (4G1)
90149-06154-00
Unavailable
22
EMBLEM, YAMAHA
99246-00080-00
Unavailable
