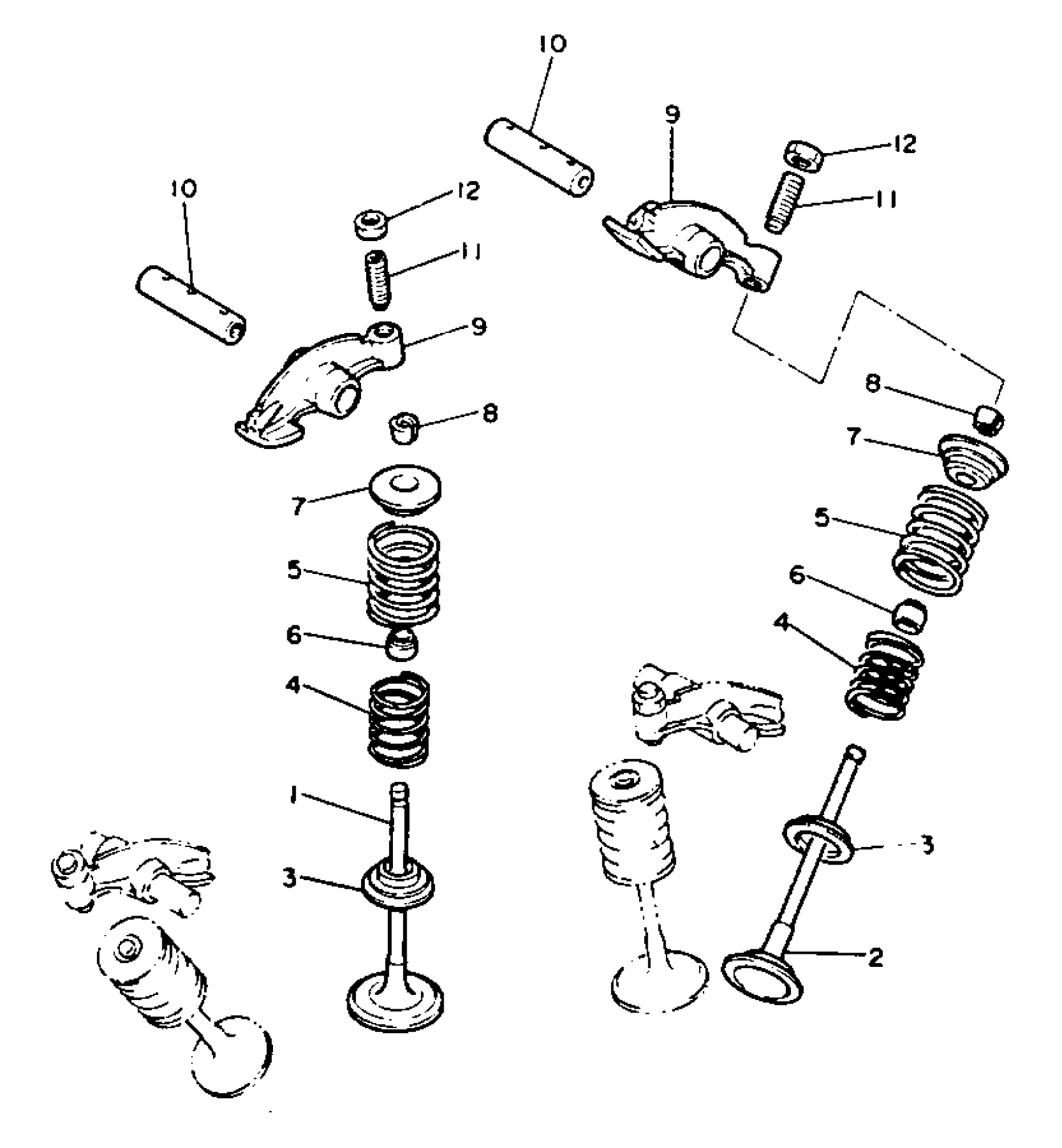

Yamaha XV750BC (VIRAGO 750 CA) 1991 VALVE Diagram

VALVE, INTAKE

4X7-12111-00-00

Unavailable

VALVE, EXHAUST

4X7-12121-00-00

Unavailable

SEAT, VALVE SPRING

4X7-12116-00-00

$11.48

SPRING, COMPRESSION (1T1)

90501-31454-00

$10.96

SPRING, COMPRESSION (1T1)

90501-44455-00

$13.44

SEAL, VALVE STEM OIL

341-12119-02-00

$13.26

RETAINER, VALVE SPRING

4X7-12117-00-00

$28.64

COTTER, VALVE

4X7-12118-00-00

$6.15

ARM, VALVE ROCKER

42X-12151-00-00

$46.67

SHAFT, ROCKER 2

4X7-12156-02-00

$14.29

SCREW, VALVE ADJUSTING

4X7-12159-00-00

Unavailable

NUT, HEXAGON

90170-08173-00

$6.26
