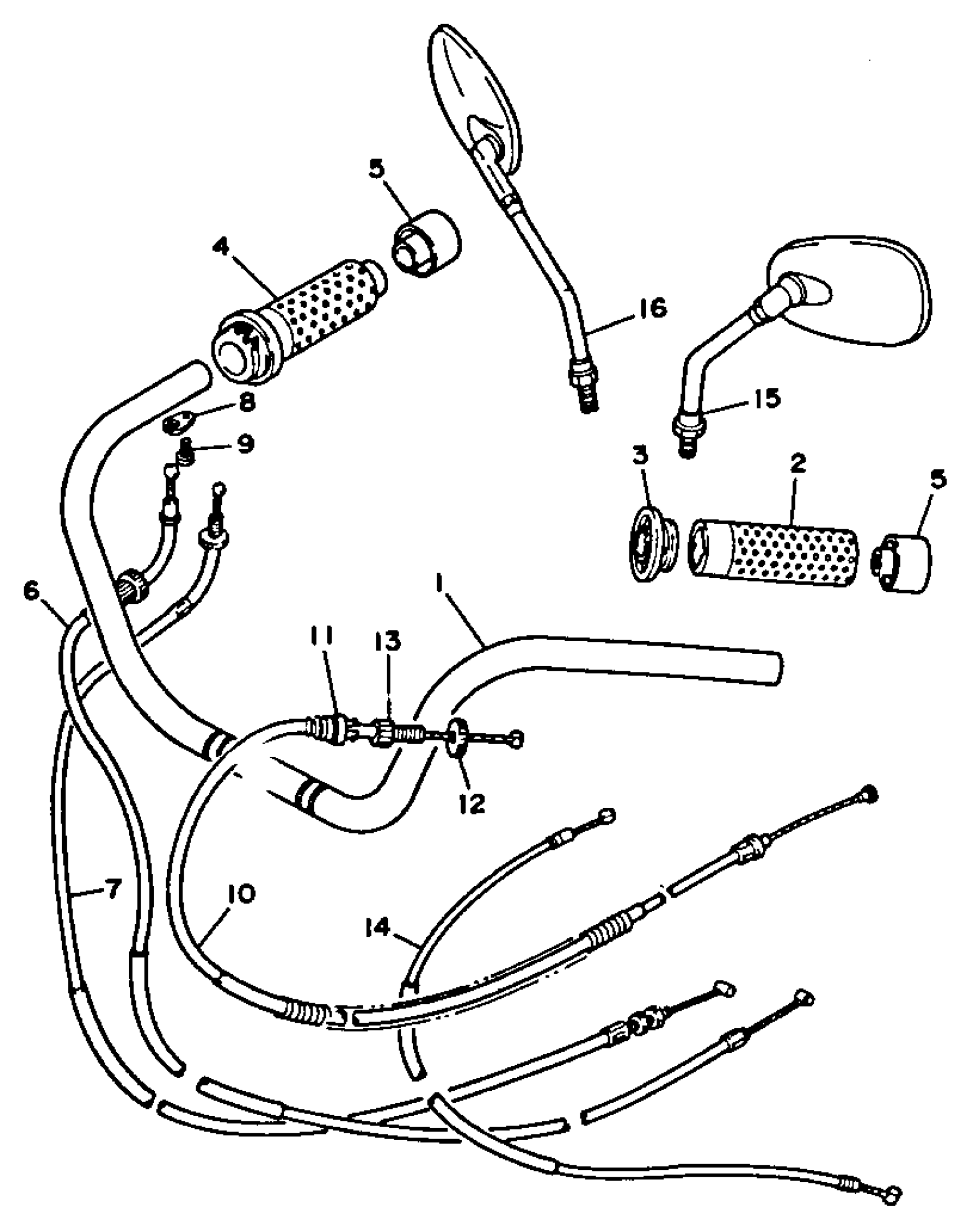

Yamaha XV750BC (VIRAGO 750 CA) 1991 HANDLEBAR CABLE Diagram

Description

Price

HANDLEBAR (3AL-W2611-10-00)

3AL-W2611-00-00

Unavailable

GRIP

3JB-26241-00-00

$49.99

ROTOR

3JB-26273-00-00

$59.99

GRIP ASSY

3JB-26240-00-00

$94.99

CAP, GRIP

3JB-2628J-00-00

$14.49

CABLE, THROTTLE 1

3CF-26311-00-00

$57.99

CABLE, THROTTLE 2

3CF-26312-00-00

$57.99

HOLDER

5H0-26393-00-00

$7.99

GASKET, EXHAUST

98507-05008-00

$3.55

CABLE, CLUTCH

57A-26335-00-00

$65.99

BOOT, WIRE

1E6-26342-00-00

$30.99

NUT

90179-08030-00

$5.49

BOLT

90123-08002-00

$10.49

CABLE, STARTER 1

3CF-26331-01-00

$25.99

REAR VIEW MIRROR ASSY (LEFT)

1AA-26280-10-00

$134.99

REAR VIEW MIRROR ASSY (RIGHT)

1AA-26290-10-00

Unavailable
