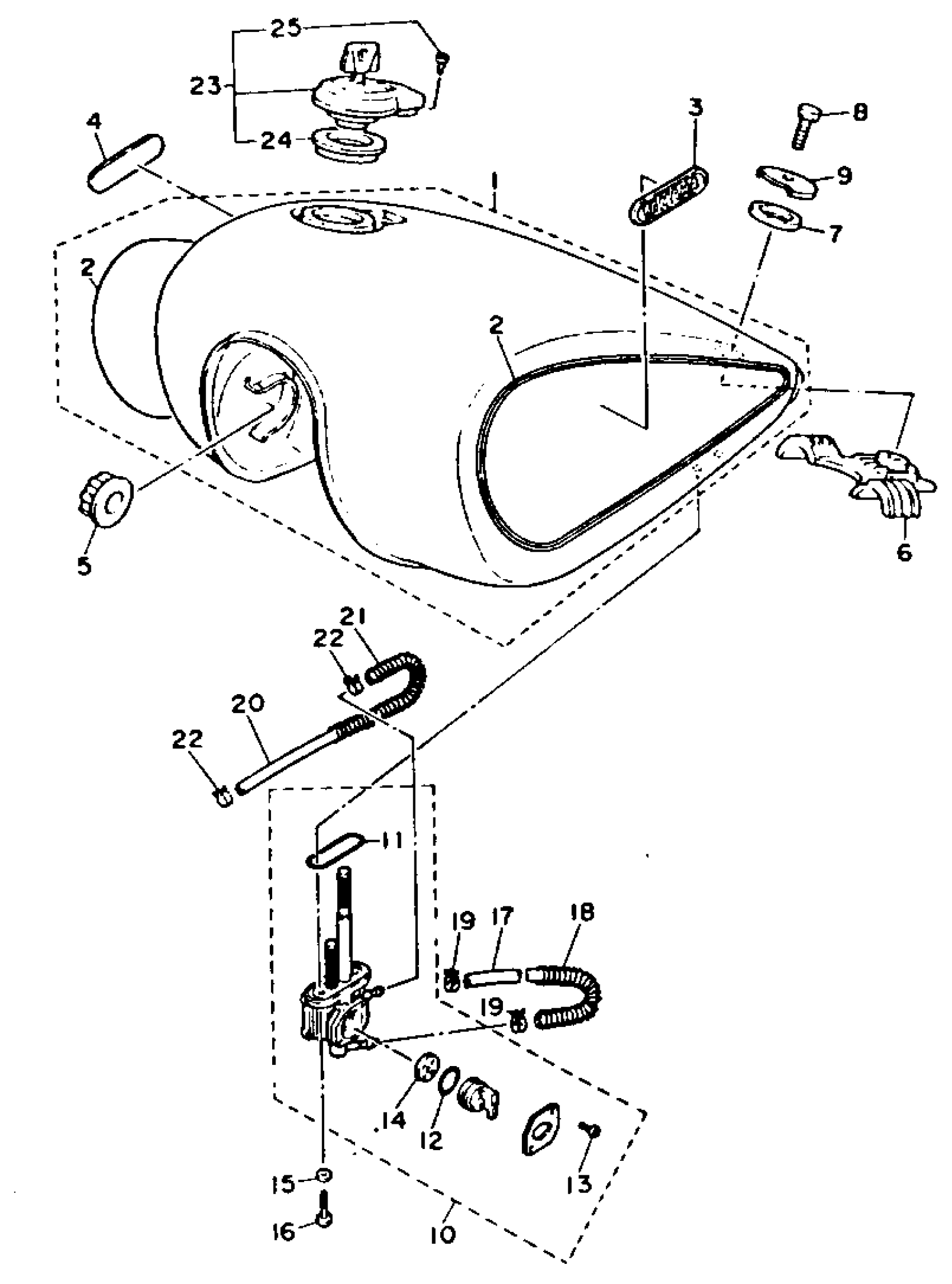

Yamaha XV750BC (VIRAGO 750 CA) 1991 FUEL TANK NON CALIFORNIA MODEL Diagram

#

Description
Price

1

FUEL TANK

1RM-24110-G0-01

Unavailable

2

. GRAPHIC SET

3JL-24240-20-00

Unavailable

3

EMBLEM 1 (ORION SILVER) (DEEP VIOLET)

1RM-24161-00-00

Unavailable

4

EMBLEM 2 (ORION SILVER) (DEEP VIOLET)

1RM-24162-00-00

Unavailable

5

DAMPER, LOCATING

4H7-24181-00-00

$6.99

6

DAMPER, LOCATING 2

42X-24182-00-00

Unavailable

7

DAMPER, LOCATING 3

42X-24183-00-00

$7.99

8

BOLT, HEXAGON

97013-08016-00

$1.01

9

WASHER, SPECIAL

42X-24186-00-00

$9.99

10

FUEL COCK ASSY 1

3AL-24500-00-00

$140.99

11

O-RING

4X8-24512-00-00

$8.99

12

SEAL, COCK

1JK-24534-00-00

$8.99

13

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

14

VALVE, FUEL COCK

3H3-24523-00-00

$31.99

15

WASHER, PLATE(3MB)

90202-05187-00

$1.38

16

SCREW 256241430000

90149-06011-00

Unavailable

17

PIPE 10

3AL-24321-00-00

Unavailable

18

SPRING, COMPRESSION (27Y)

90501-08728-00

Unavailable

19

CLIP(42X)

90467-10091-00

Unavailable

20

HOSE

42X-2416A-00-00

Unavailable

21

SPRING, COMPRESSION

90501-085L6-00

Unavailable

22

CLIP(41W)

90467-08092-00

Unavailable

23

CAP ASSY

4X7-24602-10-00

Unavailable

24

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

25

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable
