Description

Price

1

SOLENOID

5A8-86110-50-00

Unavailable

2

RELAY ASSY

25G-81950-02-00

$47.99

3

CORD, STARTER MOTOR

3JK-81815-00-00

Unavailable

4

NUT(650)

95380-06700-00

$8.49

5

WASHER, SPRING

92995-06100-00

Unavailable

6

. NUT

95380-08700-00

Unavailable

7

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

RECTIFIER & REGULATOR ASSY

42X-81960-A1-00

$336.99

9

SCREW, PAN HEAD

98580-06016-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

CLAMP

90465-10264-00

Unavailable

13

RECTIFIER 2

4U8-81980-M0-00

Unavailable

14

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

15

HORN

1RM-83371-00-00

Unavailable

16

HORN

4NK-83371-00-00

Unavailable

17

BOLT,SOCKET

91317-06012-00

Unavailable

18

REFLECTOR ASSEMBLY

42X-85110-00-00

Unavailable

19

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

20

SENDER UNIT ASSEMBLY, FUEL METER

42X-85752-01-00

Unavailable

21

GASKET, SENDER UNIT

42X-85753-00-00

Unavailable

22

SCREW 256241430000

90149-06011-00

Unavailable

23

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

24

REAR REFLECTOR ASY

2EN-85130-00-00

Unavailable

25

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

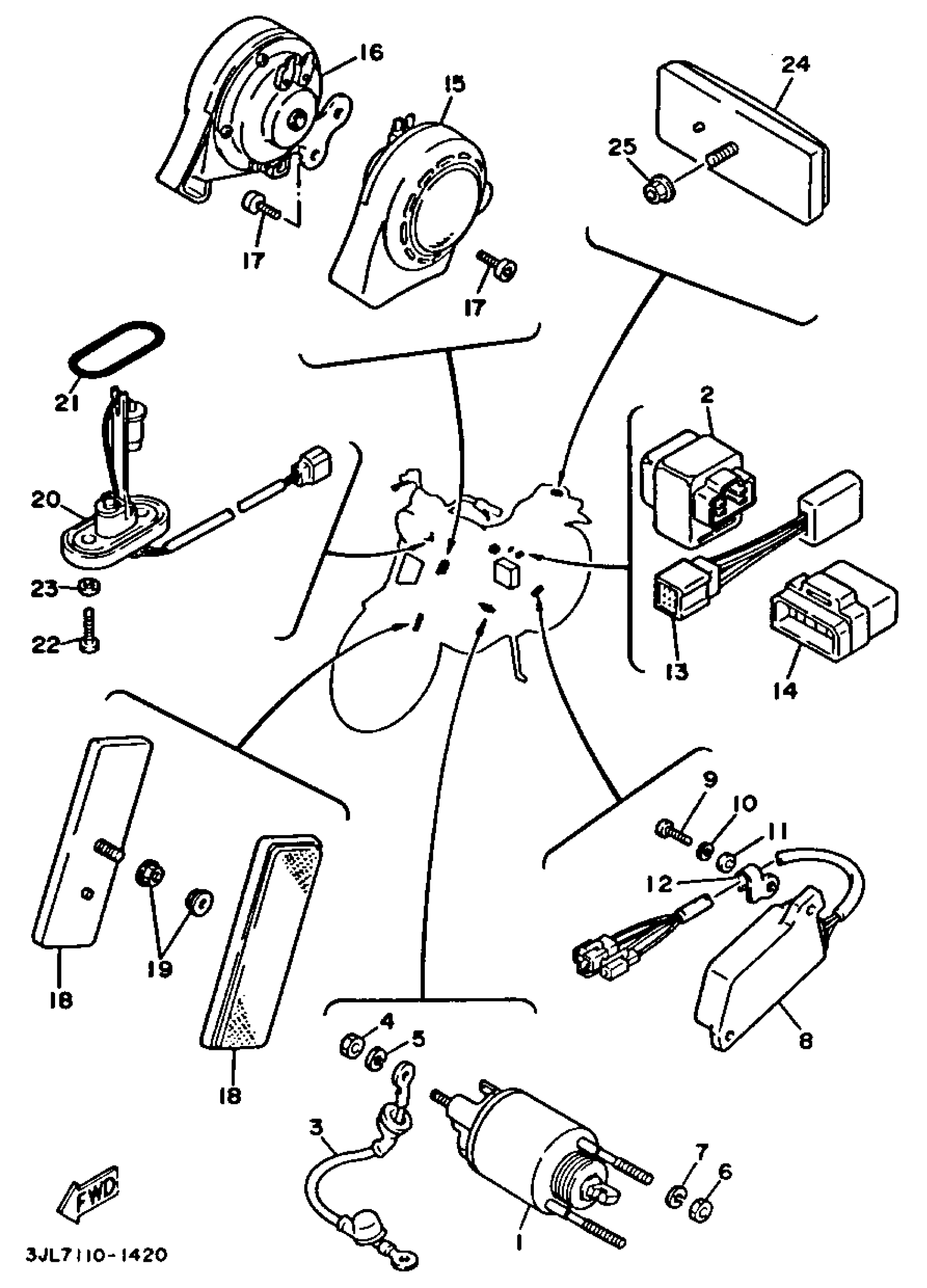

Yamaha XV750BC (VIRAGO 750 CA) 1991 ELECTRICAL 2 Diagram

SOLENOID

RELAY ASSY

CORD, STARTER MOTOR

NUT(650)

WASHER, SPRING

. NUT

YBS67-8 WASHER, SPRING

RECTIFIER & REGULATOR ASSY

SCREW, PAN HEAD

WASHER, SPRING

WASHER, PLAIN (646)

CLAMP

RECTIFIER 2

FLASHER RELAY ASSY

HORN

HORN

BOLT,SOCKET

REFLECTOR ASSEMBLY

NUT, FLANGE(3GM)

SENDER UNIT ASSEMBLY, FUEL METER

GASKET, SENDER UNIT

SCREW 256241430000

WASHER, PLATE(3MB)

REAR REFLECTOR ASY

NUT, FLANGE(3GM)
