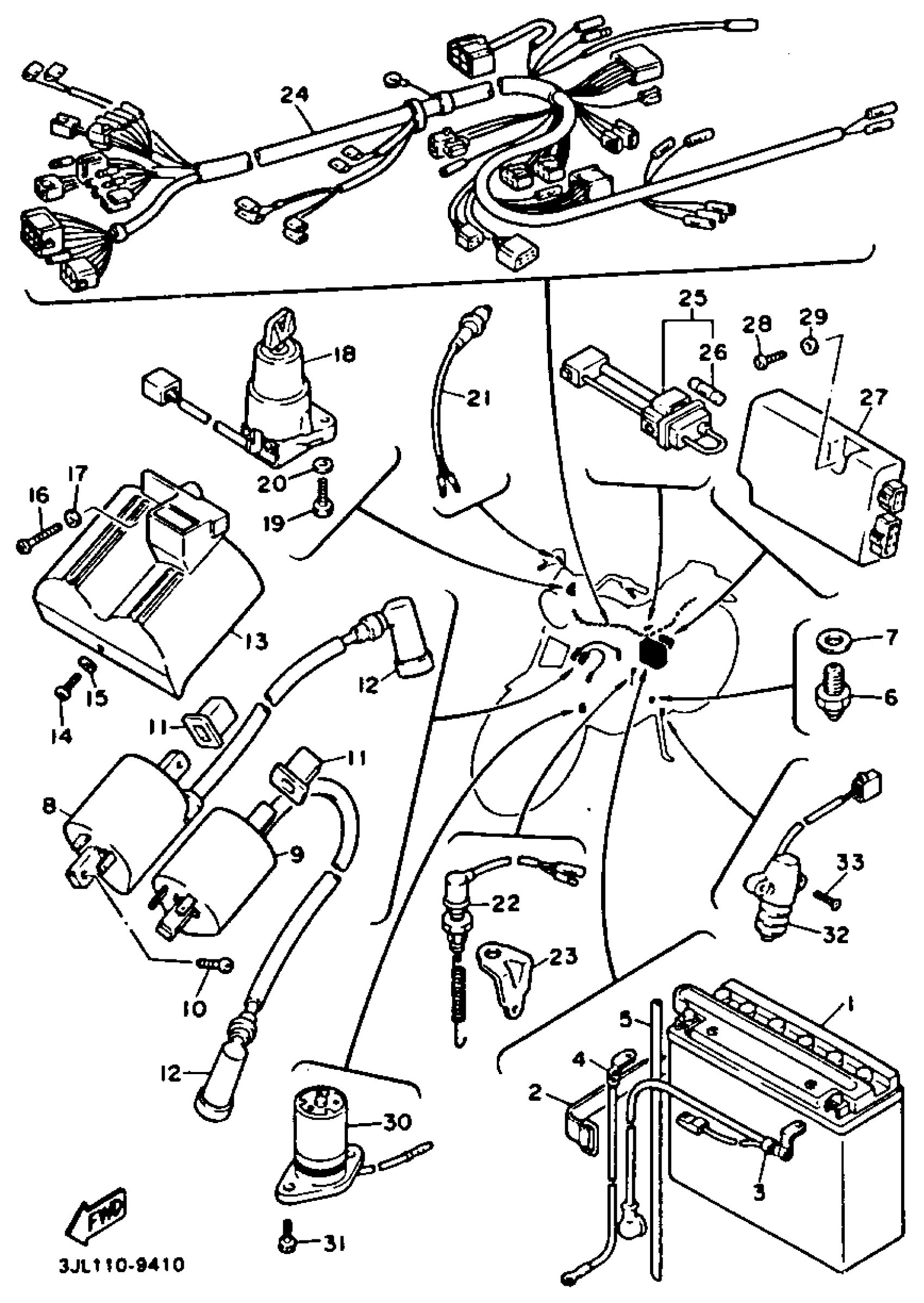

Yamaha XV750BC (VIRAGO 750 CA) 1991 ELECTRICAL 1 Diagram

#

Description
Price

1

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

Unavailable

2

BAND, BATTERY

1E6-82131-00-00

$27.99

3

WIRE, PLUS LEAD

42H-82115-01-00

Unavailable

4

WIRE, MINUS LEAD

42X-82116-00-00

Unavailable

5

HOSE (L1500)

90445-084J0-00

$18.99

6

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

7

GASKET (5R6)

90430-10171-00

$3.18

8

IGNITION COIL ASSEMBLY

42X-82310-70-00

Unavailable

9

IGNITION COIL ASSEMBLY

42X-82320-70-00

Unavailable

10

SCREW, PAN HEAD

90157-05M19-00

Unavailable

11

DAMPER, IGNITION COIL

42X-82317-00-00

Unavailable

12

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

13

COVER,IGNITN COIL

42X-82314-01-00

Unavailable

14

SCREW, PAN

98517-06012-00

$3.78

15

WASHER(6TA)

92907-06600-00

$2.72

16

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

17

WASHER(6TA)

92907-06600-00

$2.72

18

MAIN SWITCH STEERING LOCK

42X-82501-50-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable

22

STOP SWITCH ASSY

42X-82530-02-00

Unavailable

23

STAY, STOP SWITCH

1FK-82539-00-00

Unavailable

24

WIRE HARNESS ASS''Y

1RM-82590-00-00

Unavailable

25

. FUSE HOLDER ASSEMBLY

4X7-82150-00-00

Unavailable

26

FUSE

1A0-82161-00-00

Unavailable

27

IGNITOR UNIT ASSEMBLY

3JL-82305-00-00

Unavailable

28

SCREW, TAPPING(JA3)

97707-60520-00

Unavailable

29

WASHER, PLATE (4F4)

90201-063A5-00

Unavailable

30

OIL LEVEL GAUGE ASSEMBLY

3JK-85720-00-00

Unavailable

31

BOLT, SOCKET

91314-06016-00

Unavailable

32

SWITCH, SIDE STAND

33E-82566-00-00

Unavailable

33

SCREW, FLAT

98707-05016-00

Unavailable
