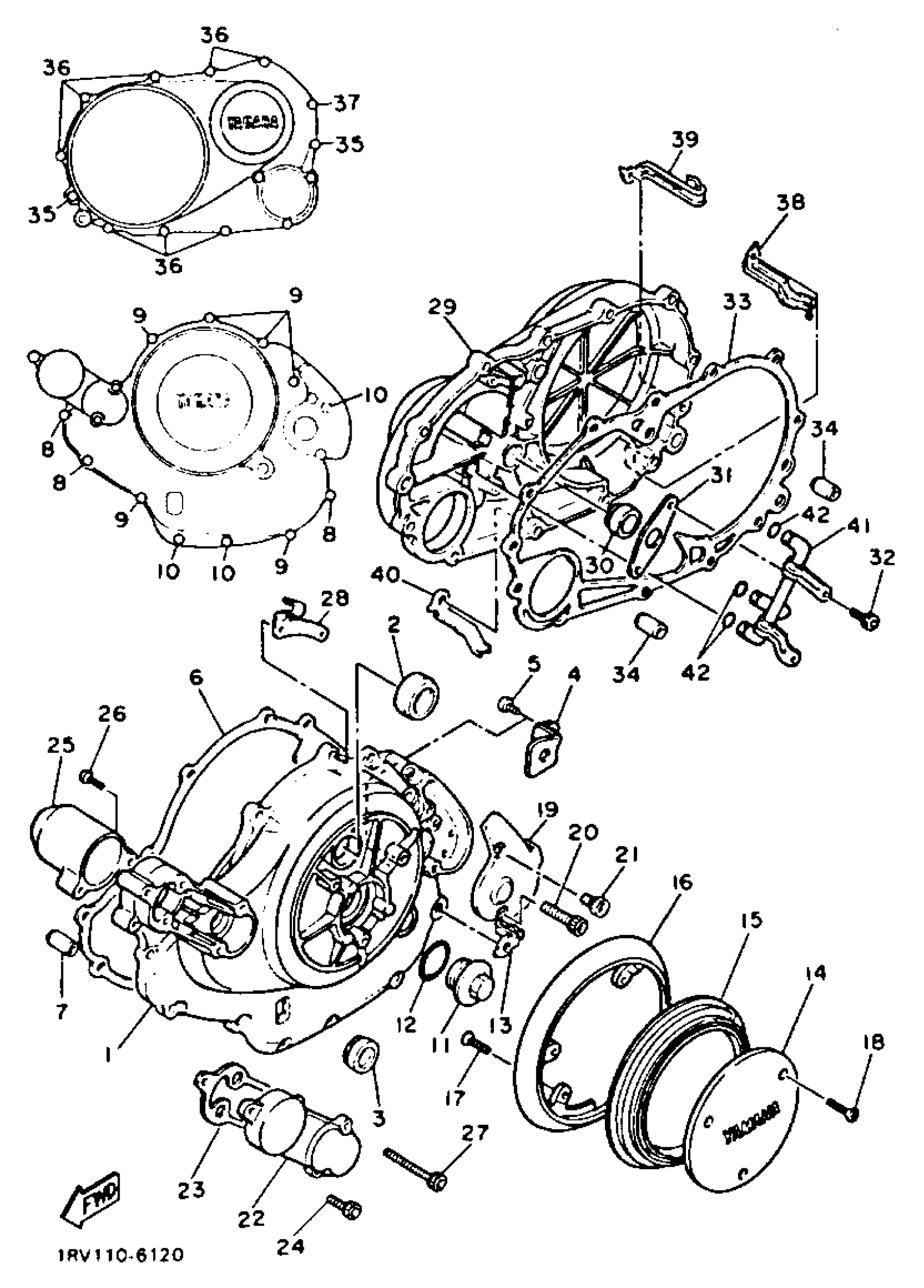

Yamaha XV750BC (VIRAGO 750 CA) 1991 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1RM-15411-01-00

Unavailable

2

GAUGE, LEVEL

4X7-15361-00-00

Unavailable

3

GAUGE, LEVEL

2H7-15361-00-00

$97.99

4

CLAMP

90465-08309-00

Unavailable

5

SCREW PAN HEAD

98580-06010-00

$8.49

6

GASKET, CRANKCASE COVER 1

3EG-15451-00-00

$64.99

7

PIN, DOWEL(3VD)

99530-10114-00

$2.55

8

BOLT, SOCKET

91314-06040-00

$8.49

9

BOLT, SOCKET

91314-06030-00

$8.49

10

BOLT,SOCKET HEAD

91314-06020-00

$1.49

11

COVER, CYLINDER HEAD SIDE

1L9-11186-00-00

$31.99

12

O-RING (341)

93210-32172-00

$7.49

13

CLAMP

90462-08076-00

Unavailable

14

COVER, GENERATOR

1RM-15415-01-00

Unavailable

15

GASKET 1

1RM-15455-00-00

Unavailable

16

COVER, GENERATOR R

1RM-15425-00-00

Unavailable

17

SCREW, FLAT HEAD

98780-06016-00

Unavailable

18

SCREW, FLAT

98707-06014-00

Unavailable

19

COVER, CAP

42X-15417-01-00

Unavailable

20

BOLT,SOCKET

91314-06055-00

Unavailable

21

BOLT, SOCKET

91314-06016-00

Unavailable

22

COVER, SHIFTER 1

1RM-15419-00-00

Unavailable

23

GASKET, SHIFTER COVER

3EG-15459-00-00

Unavailable

24

BOLT, SOCKET

91314-06016-00

Unavailable

25

COVER, SHIFTER

3CG-15429-00-00

Unavailable

26

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

27

BOLT, SOCKET

91314-06065-00

Unavailable

28

HOLDER, CLUTCH CABLE

42X-15441-00-00

Unavailable

29

COVER,CRANKCASE 3

1RM-W1542-01-00

Unavailable

30

OIL SEAL (4X7)

93101-14102-00

Unavailable

31

PLATE, BEARING COVER

4X7-15388-00-00

Unavailable

32

BOLT,SOCKET

91317-06016-00

Unavailable

33

GASKET, CRANKCASE COVER 3

3EG-15462-00-00

Unavailable

34

PIN, DOWEL(3BM)

99530-10120-00

Unavailable

35

BOLT, SOCKET

91314-06040-00

$8.49

36

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

37

BOLT, SOCKET

91314-06030-00

$8.49

38

CLAMP

90462-10143-00

Unavailable

39

CLAMP

90462-10003-00

Unavailable

40

CLAMP

90462-12142-00

Unavailable

41

PIPE, DELIVERY 1

1RM-13161-00-00

Unavailable

42

O-RING

93210-07438-00

Unavailable
