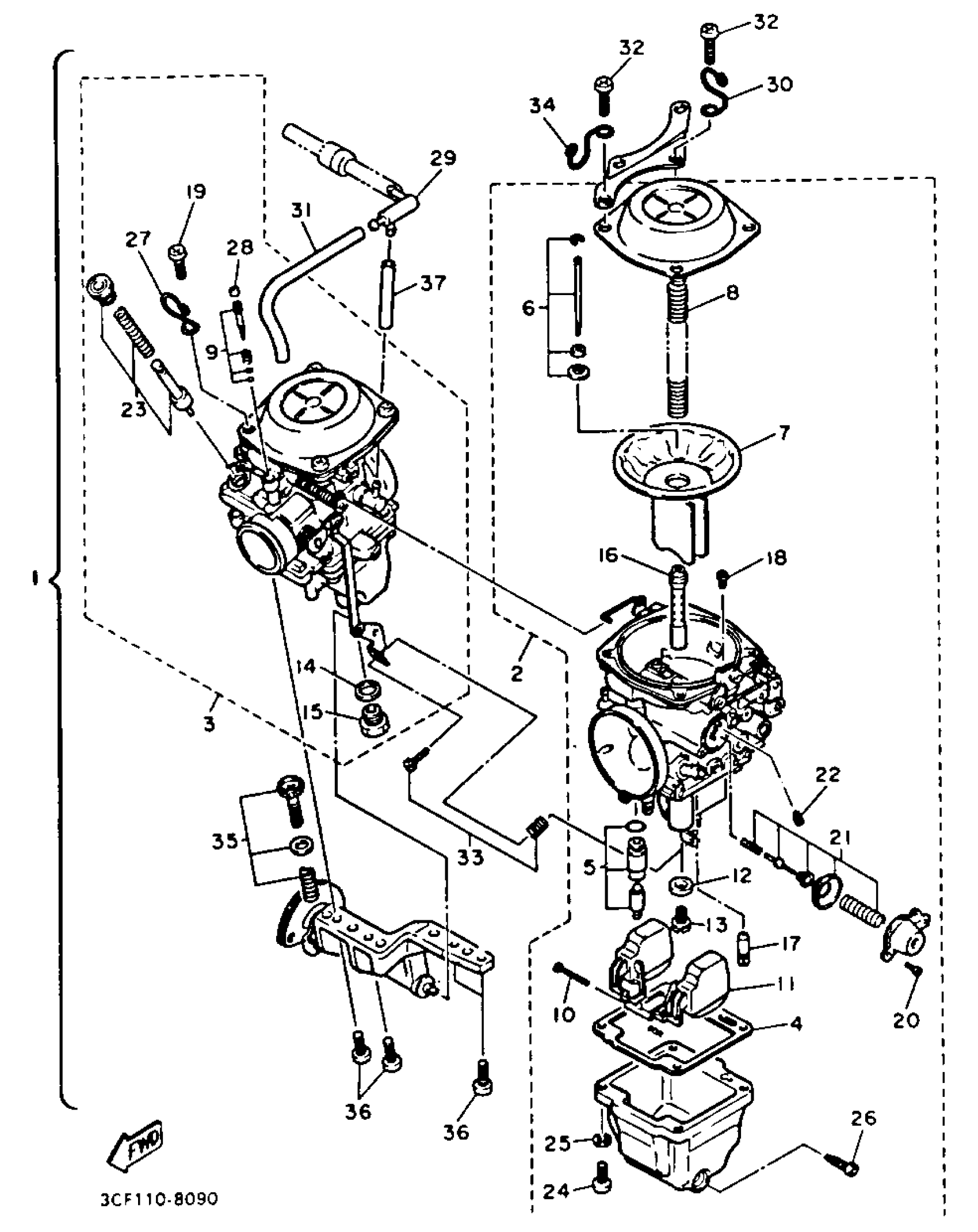

Yamaha XV750BC (VIRAGO 750 CA) 1991 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY
[3A-L1490-00-10
Unavailable
1
UNAVAILABLE IN PRICE BOOK
(3CM-14900-00-00
Unavailable
2
. CARBURETOR ASSEMBLY 1
3CM-14901-01-00
Unavailable
3
CARBURETOR ASY 2
3CM-14902-01-00
Unavailable
4
GASKET, FLOAT CHAMBER
3CF-14984-01-00
Unavailable
7
DIAPHRAGM ASSY
3CF-14940-00-00
Unavailable
8
.. SPRING, DIAPHRAGM
[3C-F1493-30-00
Unavailable
13
.. SCREW
3CF-14991-00-00
Unavailable
14
WASHER
256-14954-00-00
Unavailable
15
JET,MAIN #122.5
620-1423A-75-00
Unavailable
16
.. UNAVAILABLE IN PRICE BOOK
[3C-F1414-19-40
Unavailable
17
JET, PILOT (# 40)
4G0-14142-40-00
Unavailable
18
JET, MAIN (# 60)
3G2-14231-12-00
Unavailable
19
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
20
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
21
.. DIAPHRAGM SET 5
3CF-1490H-00-00
Unavailable
22
.. UNAVAILABLE IN PRICE BOOK (#140)
[1H-X1423-12-80
Unavailable
23
STARTER SET
3CF-1410A-00-00
Unavailable
24
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
25
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
26
PLUG, DRAIN
12R-14191-00-00
Unavailable
27
.. CLIP
[2J-U1493-70-00
Unavailable
28
CAP
3F9-14118-00-00
Unavailable
29
. UNAVAILABLE IN PRICE BOOK
[3C-F1425-10-00
Unavailable
30
CLIP
(3CF-14937-00-00)
Unavailable
31
PIPE,AIRVENT
3CG-14197-00-00
Unavailable
32
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
33
STOP SCREW SET
(3CF-1490K-00-00)
Unavailable
34
CLIP
(3CF-14919-00-00)
Unavailable
35
THROTTLE SCREW SET
3CF-14103-01-00
Unavailable
36
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
37
PIPE
(3CF-14197-00-00)
Unavailable
