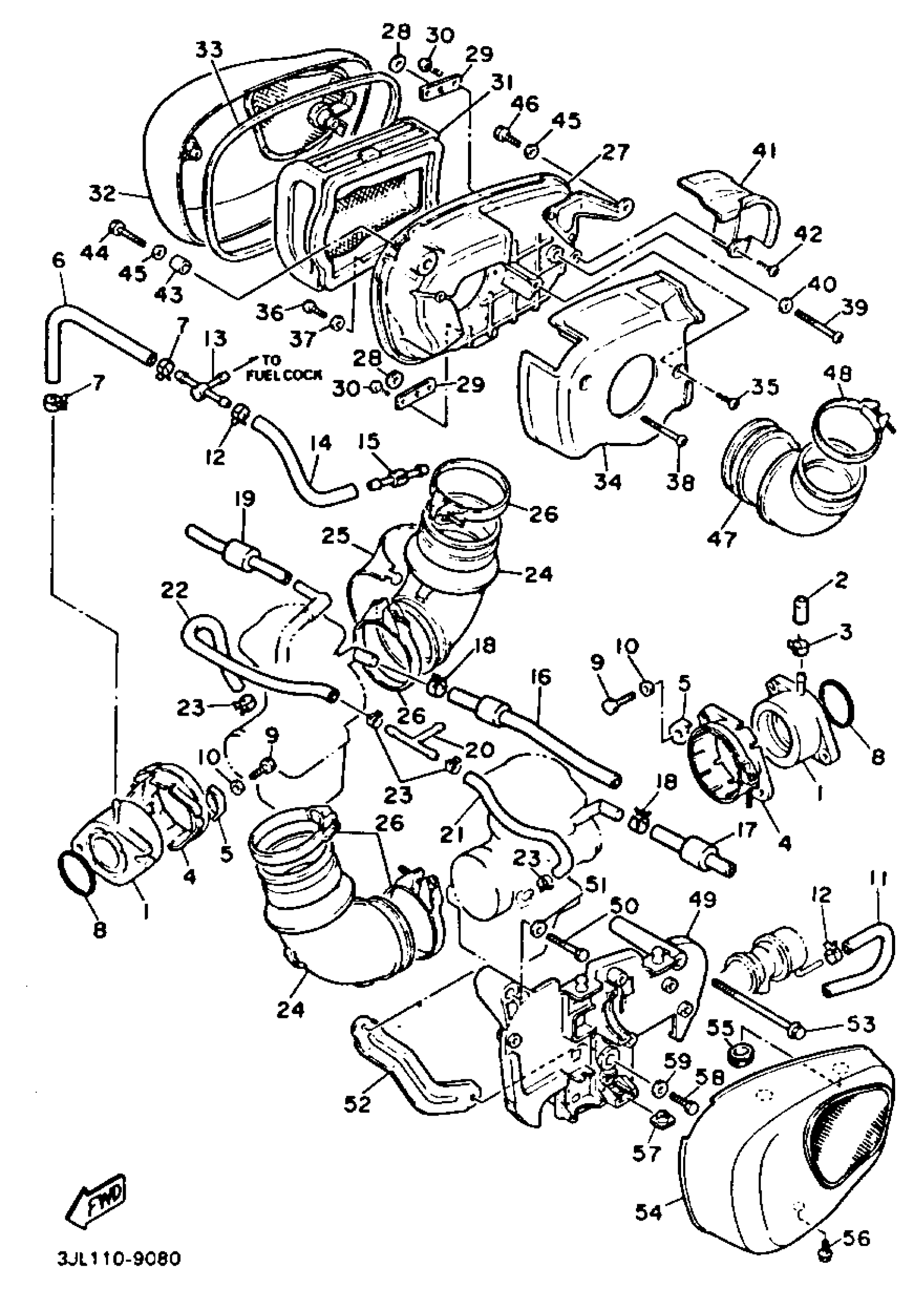

Yamaha XV750BC (VIRAGO 750 CA) 1991 AIR FILTER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

24M-13586-01-00

$129.99

2

PLUG, BLIND

16G-13569-00-00

$7.99

3

CLIP (3G0)

90467-10039-00

$9.49

4

COVER, MANIFOLD

42X-13564-01-00

Unavailable

5

WASHER

42X-13578-00-00

Unavailable

6

HOSE, VACUUM SENSING 2

42X-13544-00-00

Unavailable

7

CLIP(41W)

90467-08092-00

$9.49

8

O-RING (10L)

93210-44545-00

$13.49

9

BOLT, HEXAGON

97017-06020-00

$4.06

10

WASHER(6TA)

92907-06600-00

$2.72

11

HOSE, VACUUM SENSING 5

1TA-13534-00-00

Unavailable

12

CLIP(41W)

90467-08092-00

$9.49

13

JOINT

1RV-13595-00-00

Unavailable

14

HOSE, VACUUM SENSING 5

1TA-13535-00-00

Unavailable

15

NOZZLE

41R-14489-00-00

Unavailable

16

PIPE,AIRVENT

3CG-14197-00-00

Unavailable

17

PIPE,AIRVENT

3CG-14197-00-00

Unavailable

18

CLIP (5K4)

90467-14057-00

Unavailable

19

PIPE

3CG-14396-00-00

Unavailable

20

WAY 3(1AF)

90413-07023-00

Unavailable

21

PIPE

1TA-14349-00-00

Unavailable

22

PIPE 1

1TA-14348-00-00

Unavailable

23

CLIP(42X)

90467-10091-00

Unavailable

24

JOINT, AIR CLEANER 1

10L-14453-02-00

Unavailable

25

COVER, JOINT

10L-14407-00-00

Unavailable

26

CLAMP, HOSE 1

1D6-11387-00-00

Unavailable

27

AIR CLEANER CASE ASSEMBLY

42X-14401-01-00

Unavailable

28

WASHER, PLAIN (646)

92990-04600-00

Unavailable

29

PLATE

42X-14477-00-00

Unavailable

30

SCREW, OVAL HEAD TAPPING

97780-40112-00

Unavailable

31

ELEMENT, AIR CLEANER

42X-14451-00-00

Unavailable

32

CAP, CLEANER CASE 2

1RM-14422-00-00

Unavailable

33

SEAL

42X-14452-00-00

Unavailable

34

COVER, CLEANER CASE 1

1TA-1441A-00-00

Unavailable

35

SCREW, PAN TAP.2

97707-50508-00

Unavailable

36

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

37

WASHER, PLAIN (646)

92990-05600-00

Unavailable

38

SCREW, PAN

98507-06080-00

Unavailable

39

SCREW, PAN

98507-06050-00

Unavailable

40

WASHER(6TA)

92907-06600-00

$2.72

41

COVER, CLEANER CASE 2

1TA-1441E-00-00

Unavailable

42

SCREW, PAN TAP.2

97707-50508-00

Unavailable

43

COLLAR (1T2)

90387-07598-00

Unavailable

44

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

45

WASHER(6TA)

92907-06200-00

Unavailable

46

BOLT,SOCKET

91317-06012-00

Unavailable

47

PIPE, JOINT

42X-14485-00-00

Unavailable

48

CLAMP, HOSE 1

1D6-11387-00-00

Unavailable

49

PLATE, AIR CLEANER

42X-14663-02-00

Unavailable

50

BOLT, SOCKET

91314-06090-00

Unavailable

51

WASHER(6TA)

92907-06200-00

Unavailable

52

PLATE, CLEANER CASE FITTING

42X-14484-00-00

Unavailable

53

BOLT, FLANGE

95822-06025-00

Unavailable

54

COVER 1

1RM-14603-00-00

Unavailable

55

GROMMET 654427240000

90480-14074-00

Unavailable

56

BOLT, FLANGE

95817-06014-00

Unavailable

57

PLATE, CLEANER CASE FITTING

12R-14484-01-00

Unavailable

58

BOLT,SOCKET

91317-06035-00

Unavailable

59

WASHER(6TA)

92907-06200-00

Unavailable
