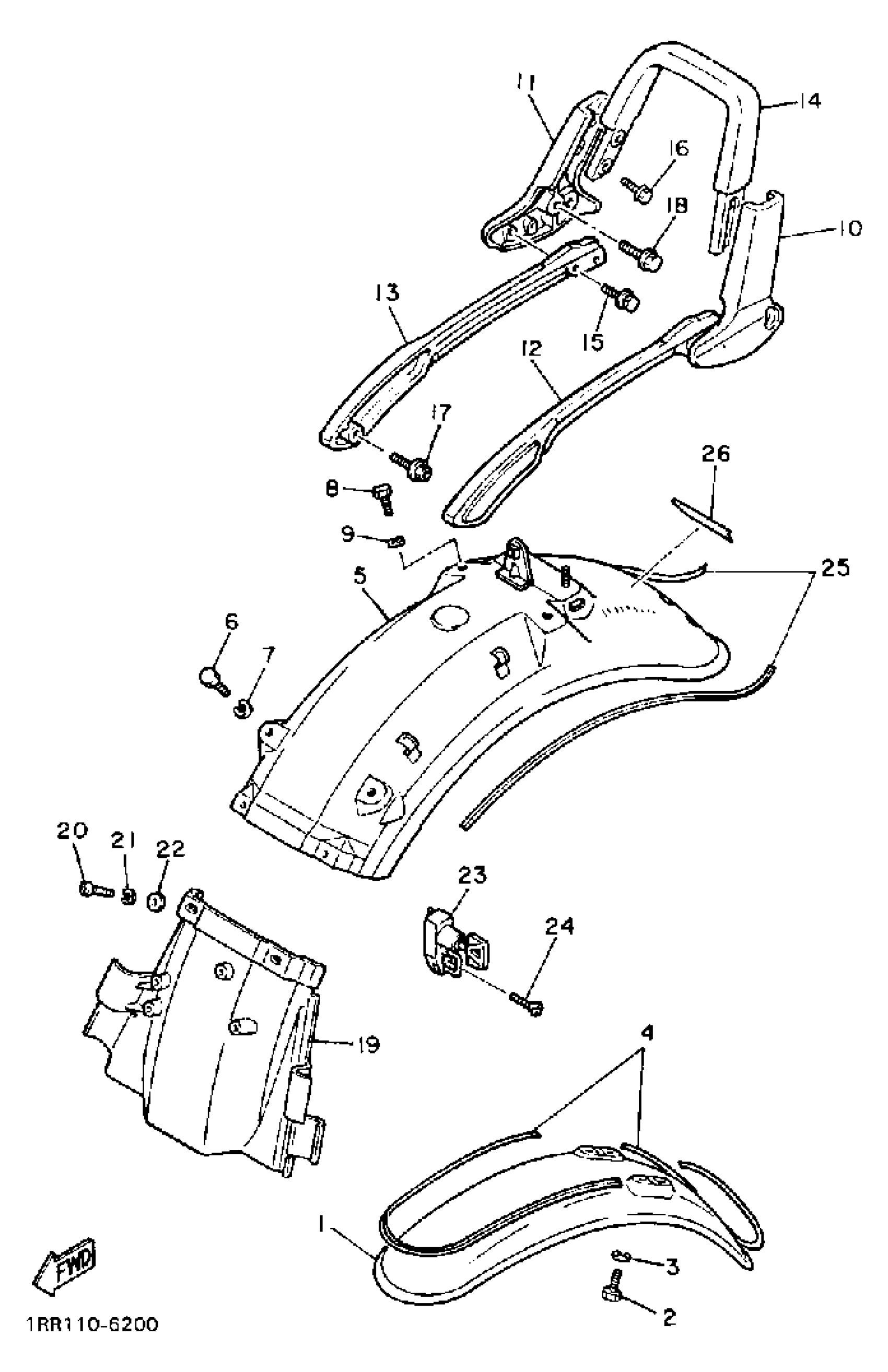

Yamaha XV700SSC (VIRAGO 700 CA) 1986 FENDER XV700SS SSC Diagram

#

Description
Price

1

FENDER,FRONT

1MY-21510-00-FF

Unavailable

2

BOLT (661)

97013-06012-00

$5.60

3

WASHER, SPRING

92995-06100-00

Unavailable

4

GRPHC SET, FRT FNDR

1RR-21570-00-00

Unavailable

5

FENDER, REAR (NEW WHITE)

1RM-21610-01-KM

Unavailable

6

BOLT (661)

97013-06012-00

$5.60

7

WASHER, SPRING

92995-06100-00

Unavailable

8

BOLT(62E)

97013-08012-00

Unavailable

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

STAY 1

1RM-2164F-00-00

Unavailable

11

STAY 2

1RM-2164G-00-00

Unavailable

12

STAY 3

1RM-2164H-00-00

Unavailable

13

STAY 4

1RM-2164J-00-00

Unavailable

14

GRIP 1

55R-2164A-02-00

Unavailable

15

BOLT, FLANGE

95817-06016-00

$2.75

16

BOLT, FLANGE

95817-06016-00

$2.75

17

SCREW

90149-08225-00

Unavailable

18

BOLT, FLANGE

95817-10020-00

Unavailable

19

GUARD, MUD

42X-21629-00-00

Unavailable

20

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

23

HELMET HANGER ASSY

26H-21308-01-00

Unavailable

24

SCREW, FLAT

98707-06030-00

Unavailable

25

GRAPHIC SET, R.FEND

1RR-2165A-00-00

Unavailable

26

EMBLEM, YAMAHA

99245-00080-00

Unavailable
