Description

Price

1

FRONT FLASHER LIGHT ASSY 1

42X-83310-K1-00

$57.99

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, FLASHER

42X-83312-09-00

$14.49

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

. LENS, RIM

42X-83363-00-00

Unavailable

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

WASHER, SPECIAL

3AA-84327-00-00

Unavailable

8

STAY, FLASHER 1

1AA-83318-00-00

$45.99

9

REAR FLASHER LIGHT ASSY 1

1AA-83330-K9-00

$117.99

10

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

11

LENS, FLASHER

42X-83312-09-00

$14.49

12

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

13

. LENS, RIM

42X-83363-00-00

Unavailable

14

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

15

WASHER, SPECIAL

3AA-84327-00-00

Unavailable

16

STAY, FLASHER 1

1AA-83318-00-00

$45.99

17

NUT(3GG)

90179-12588-00

Unavailable

18

BOLT, HEXAGON

97017-06030-00

Unavailable

19

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

20

STAY, FLASHER 2

42X-83328-00-00

Unavailable

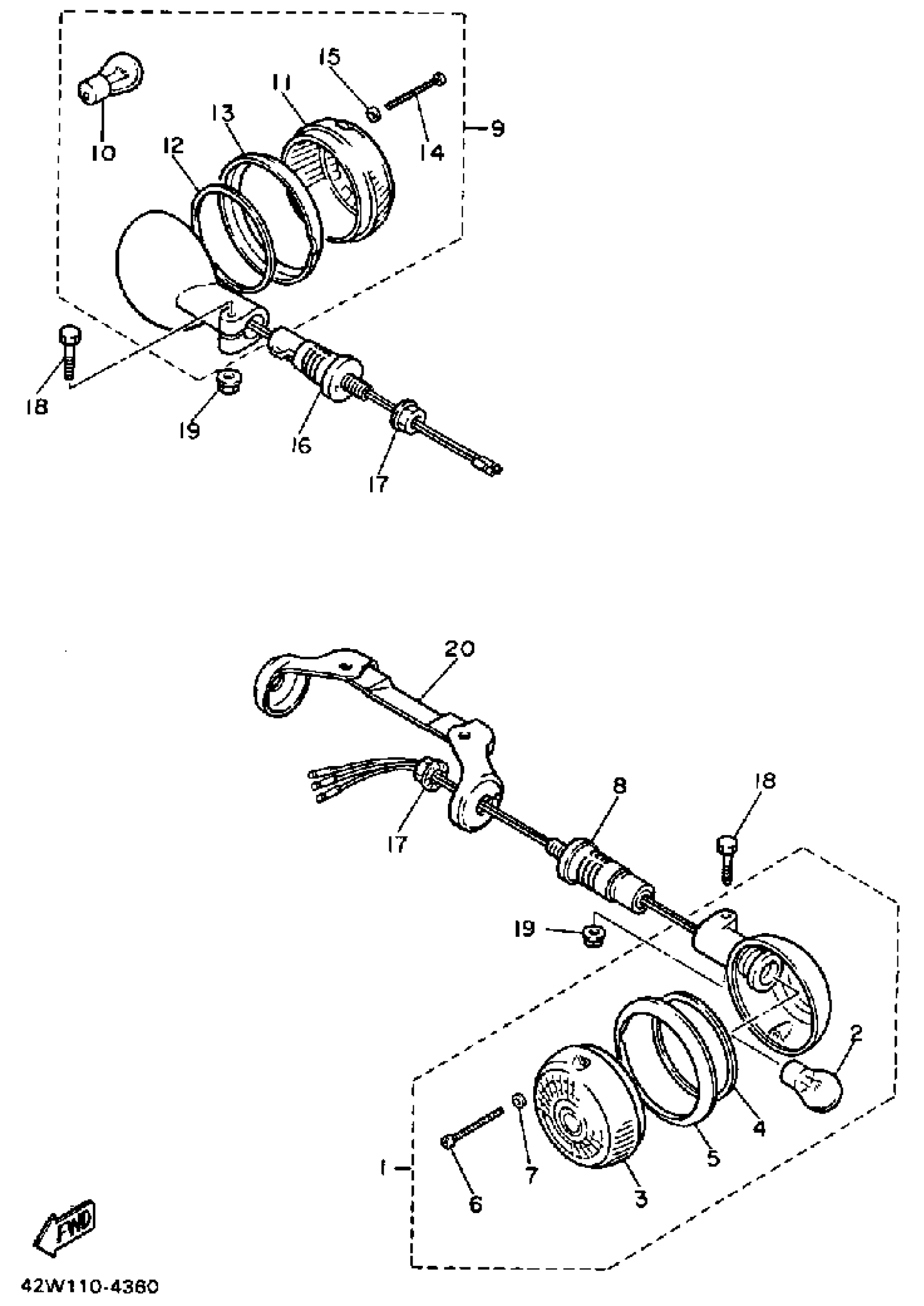

Yamaha XV700LC (VIRAGO 700 CA) 1984 TURNSIGNAL Diagram

FRONT FLASHER LIGHT ASSY 1

BULB, TAIL LAMP (12V 32/3CP)

LENS, FLASHER

GASKET, FLASHER LENS

. LENS, RIM

SCREW, COUNTERSUNK

WASHER, SPECIAL

STAY, FLASHER 1

REAR FLASHER LIGHT ASSY 1

. BULB (12V-32CP)

LENS, FLASHER

GASKET, FLASHER LENS

. LENS, RIM

SCREW, COUNTERSUNK

WASHER, SPECIAL

STAY, FLASHER 1

NUT(3GG)

BOLT, HEXAGON

NUT, FLANGE(7NB)

STAY, FLASHER 2
