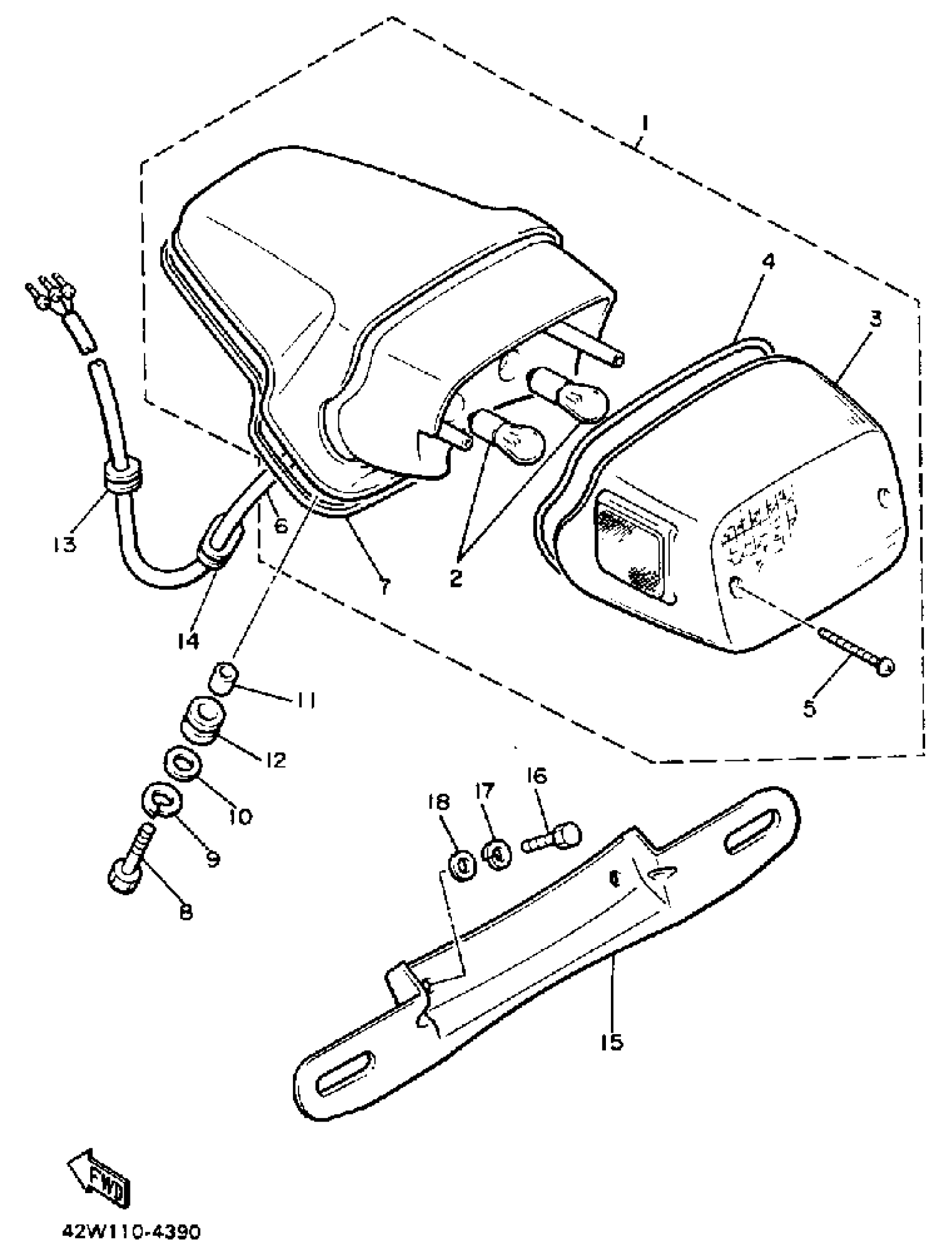

Yamaha XV700LC (VIRAGO 700 CA) 1984 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSEMBLY

42X-84700-60-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, TAILLIGHT

42X-84721-61-00

Unavailable

4

SEAL

1VJ-14462-00-00

$18.49

5

SCREW, TAPPING(7G6)

97780-40525-00

$9.49

6

CORD,TAILLIGHT

461-84517-00-00

Unavailable

7

. GASKET, TAILLIGHT

42X-84704-00-00

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLATE

90201-06380-00

$0.60

11

COLLAR (J10)

90387-06026-00

$8.49

12

GROMET (3X3)

90480-14229-00

$8.49

13

GROMMET(2UJ)

90480-16501-00

$5.60

14

GROMMET (438)

90480-15061-00

$8.49

15

BRACKET, LICENSE

42X-84751-00-00

Unavailable

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable
