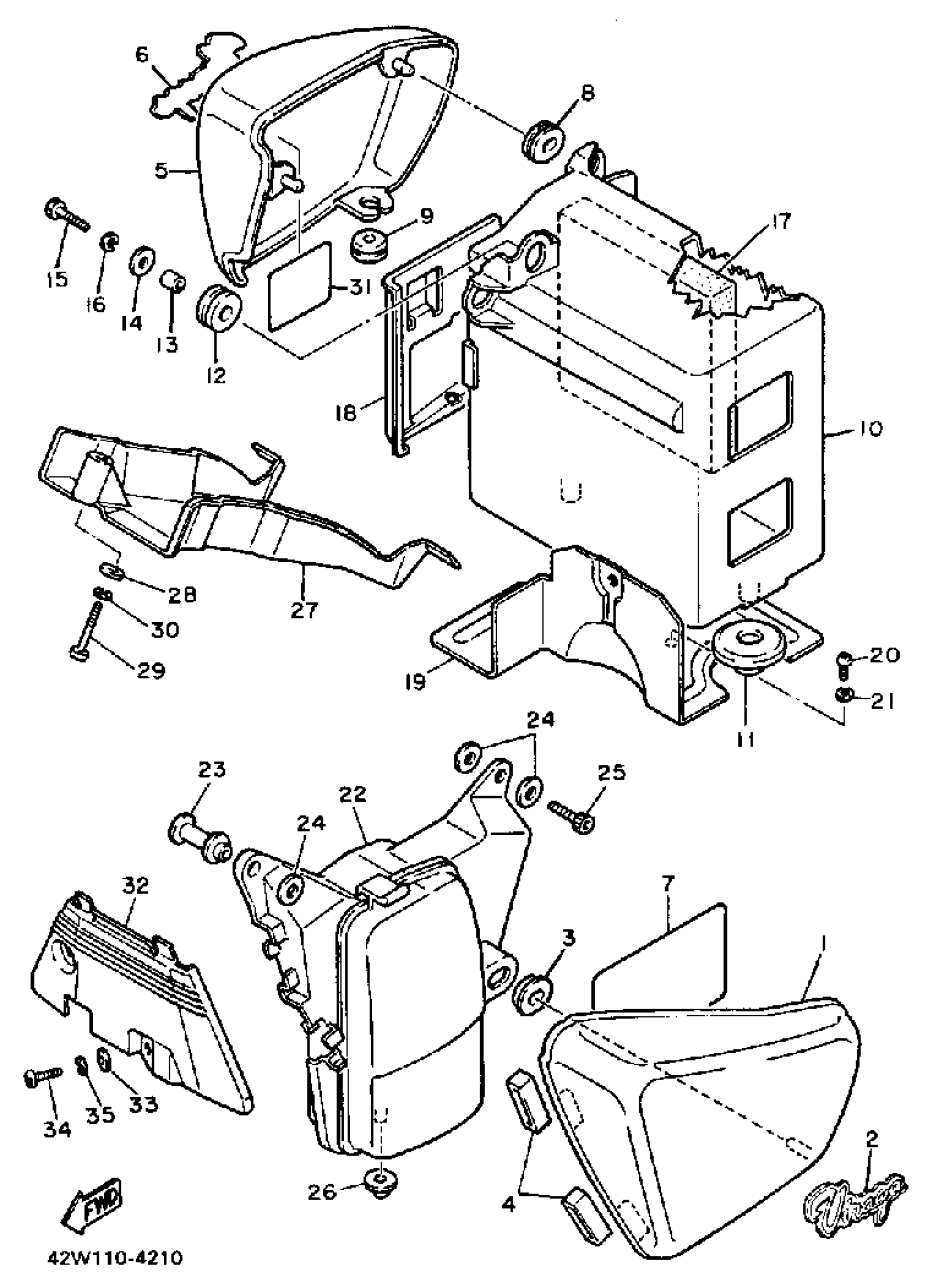

Yamaha XV700LC (VIRAGO 700 CA) 1984 SIDE COVER Diagram
#
1
COVER, SIDE 1
42X-21711-00-1W
Unavailable
1
COVER, SIDE 1
42X-21711-00-KM
Unavailable
1
COVER, SIDE 1
42X-21711-00-KM
Unavailable
2
EMBLEM 2
42X-21782-00-00
Unavailable
2
EMBLEM 2 (NEW BLACK BLUE)
56F-21782-00-00
Unavailable
5
COVER, SIDE 2
42X-21721-00-1W
Unavailable
5
COVER, SIDE 2
42X-21721-00-KM
Unavailable
5
COVER, SIDE 2
42X-21721-00-KM
Unavailable
6
EMBLEM 2
42X-21782-00-00
Unavailable
6
EMBLEM 2 (NEW BLACK BLUE)
56F-21782-00-00
Unavailable
7
PLATE, SPEC
42W-21683-70-00
Unavailable
7
PLATE, SPEC
42X-21683-50-00
Unavailable
7
PLATE, SPECS.
56Y-21683-70-00
Unavailable
7
PLATE, CALIF.SPECS.
(57A-21683-50-00)
Unavailable
9
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
10
BOX, TOOL
42X-21171-00-00
Unavailable
11
GROMMET(42X)
90480-20384-00
Unavailable
12
GROMMET (2N3)
90480-16233-00
Unavailable
13
COLLAR
90387-06113-00
Unavailable
14
WASHER, PLATE (J10)
90201-06697-00
Unavailable
15
BOLT, HEXAGON
97017-06020-00
Unavailable
16
WASHER, SPRING
92995-06100-00
Unavailable
17
DAMPER
42X-21746-00-00
Unavailable
18
LID
42X-28185-00-00
Unavailable
19
COVER
42X-2172W-02-00
Unavailable
20
SCREW, PAN HEAD(6A3)
97885-06008-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
BOX
42X-2177A-01-00
Unavailable
23
SPACER
90560-06258-00
Unavailable
24
WASHER, PLATE
90201-06049-00
Unavailable
25
BOLT,SOCKET
91317-06012-00
Unavailable
26
GROMMET(42G)
90480-10408-00
Unavailable
27
PLATE
42X-2176E-00-00
Unavailable
28
WASHER, PLATE
90201-06049-00
Unavailable
29
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
30
WASHER, SPRING
92995-06100-00
Unavailable
31
PLATE, ROUTING 2
20K-21686-00-00
Unavailable
32
COVER
42X-2117F-00-00
Unavailable
33
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
34
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
35
WASHER, SPRING
92907-06100-00
Unavailable
