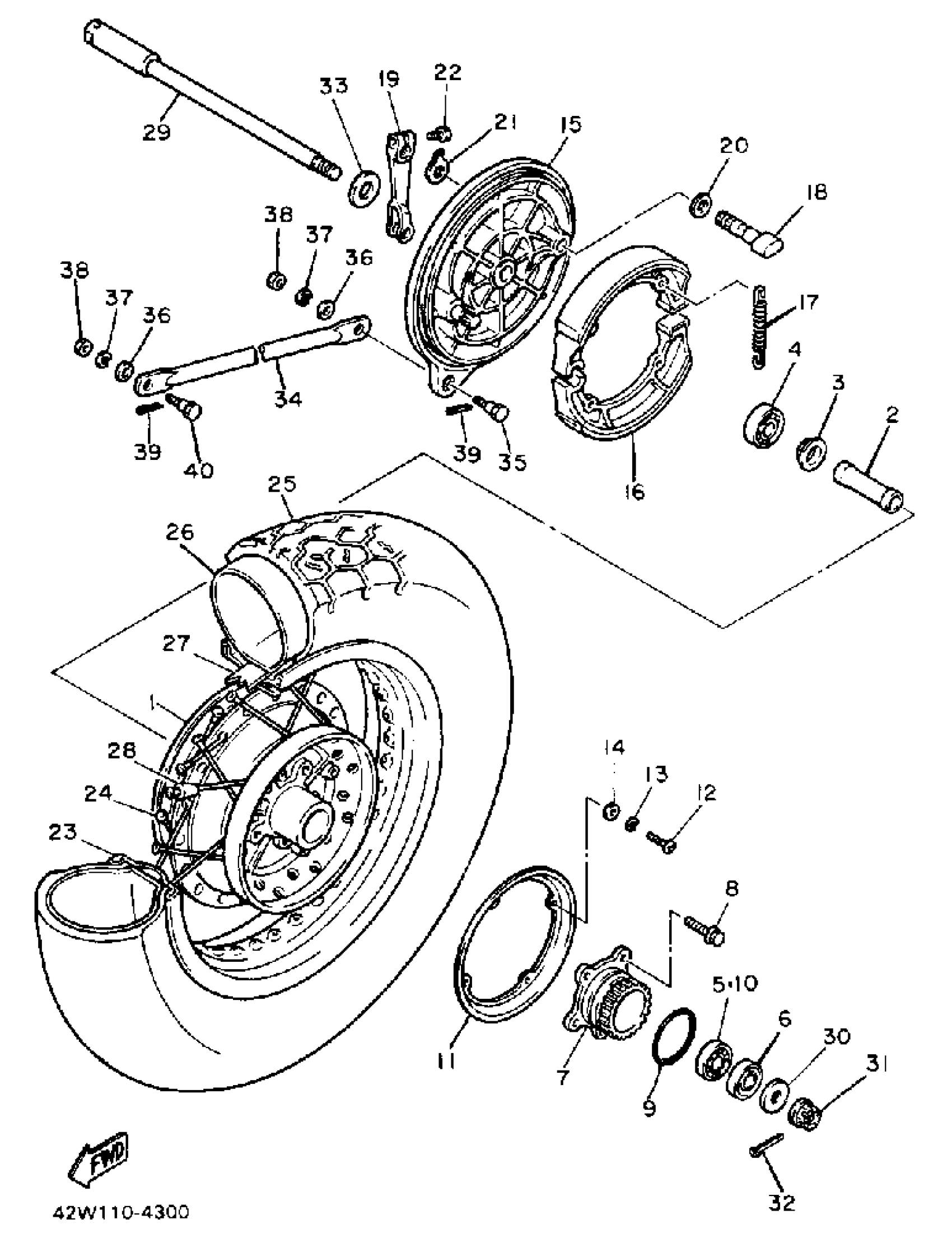

Yamaha XV700LC (VIRAGO 700 CA) 1984 REAR WHEEL L LC Diagram

#

Description
Price

1

HUB, REAR

42X-25311-00-98

Unavailable

2

SPACER

90560-17249-00

Unavailable

3

FLANGE, SPACER

146-25315-00-00

$7.99

4

BEARING(4HM)

93306-30317-00

$39.99

5

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

6

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

7

CLUTCH, HUB

4H7-25366-01-00

Unavailable

8

BOLT, FLANGE

90105-10225-00

$9.49

9

O-RING (4H7)

93210-57428-00

$14.99

10

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

11

SEAL, HUB DUST

(42X-25319-00-00)

Unavailable

12

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

13

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

14

WASHER, PLAIN (646)

92990-05600-00

$0.80

15

PLATE BRAKE SHOE

4K0-25321-01-00

Unavailable

16

BRAKE SHOE KIT

3DR-W253E-00-00

Unavailable

17

SPRING, TENSION 2462533300

90507-20002-00

Unavailable

18

CAMSHAFT

4H7-25351-00-00

Unavailable

19

LEVER, CAMSHAFT

42X-25355-00-00

Unavailable

20

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

21

PLATE, INDICATOR

4H7-2533A-02-00

Unavailable

22

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

23

RIM 3.00X15

(94430-15380-00)

Unavailable

24

SPOKE SET, REAR

42X-25304-00-00

Unavailable

25

140/90-15 BS TIRE (140/90-15 70H)

94114-154H9-00

Unavailable

26

TUBE (140-15)

94214-15223-00

Unavailable

27

BAND, RIM (3.00-15)

94330-15134-00

Unavailable

28

BALANCER, WHEEL

3HT-25398-00-00

Unavailable

29

AXLE, WHEEL

42X-25381-00-00

Unavailable

30

WASHER, PLATE

90201-14022-00

Unavailable

31

NUT, CASTLE (4V7)

90171-14031-00

Unavailable

32

PIN, COTTER

91490-30030-00

Unavailable

33

COLLAR, WHEEL

4H7-25377-00-00

Unavailable

34

BAR, TENSION

42X-25371-02-00

Unavailable

35

BOLT (537 TENSION BAR)

90109-08406-00

Unavailable

36

.. WASHER, PLATE

92990-08600-00

Unavailable

37

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

38

. NUT

95380-08700-00

Unavailable

39

PIN, COTTER

91490-20025-00

Unavailable

40

BOLT (183-25378-00)

90109-08368-00

Unavailable
