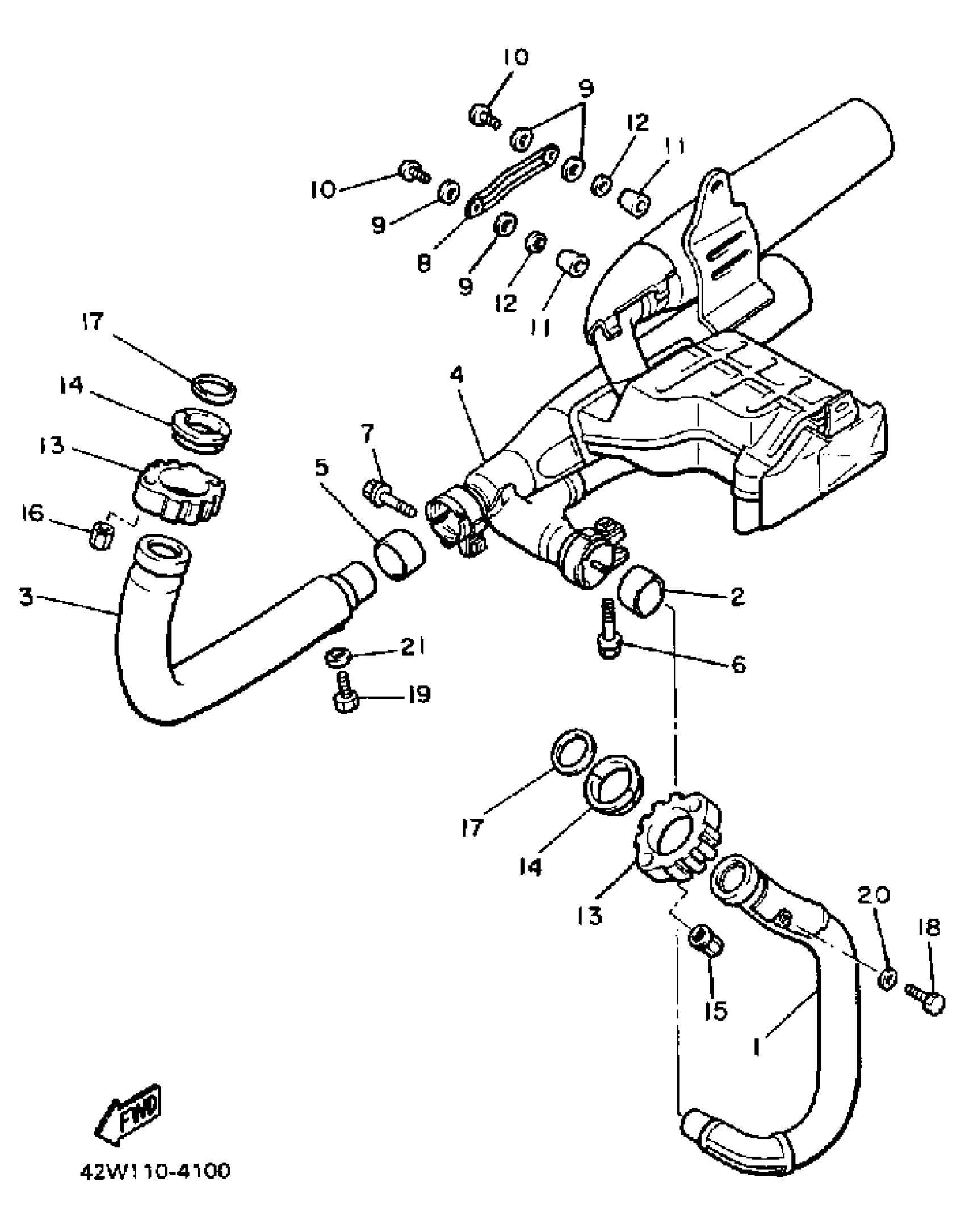

Yamaha XV700LC (VIRAGO 700 CA) 1984 EXHAUST Diagram
#
Description
Price
1
PIPE, EXHAUST 1
42X-14611-00-00
Unavailable
3
PIPE, EXHAUST 2
1RV-14621-00-00
Unavailable
4
MUFFLER 1
1RM-14711-01-00
Unavailable
8
PROTECTOR, MUFFLER 4
42X-14748-01-00
Unavailable
11
COVER, 1
42X-1479H-00-00
Unavailable
13
NUT, RING
42X-14612-00-00
Unavailable
13
NUT, RING
57A-14612-01-00
Unavailable
15
NUT (F1ZR)
90179-08813-00
Unavailable
16
NUT (371)
90179-08004-00
Unavailable
17
GASKET, EXHAUST PIPE
3EG-14613-00-00
Unavailable
18
BOLT (11T)
90101-06576-00
Unavailable
19
BOLT (11T)
90101-06576-00
Unavailable
20
WASHER, PLAIN (646)
92990-06600-00
Unavailable
21
WASHER, PLAIN (646)
92990-06600-00
Unavailable
