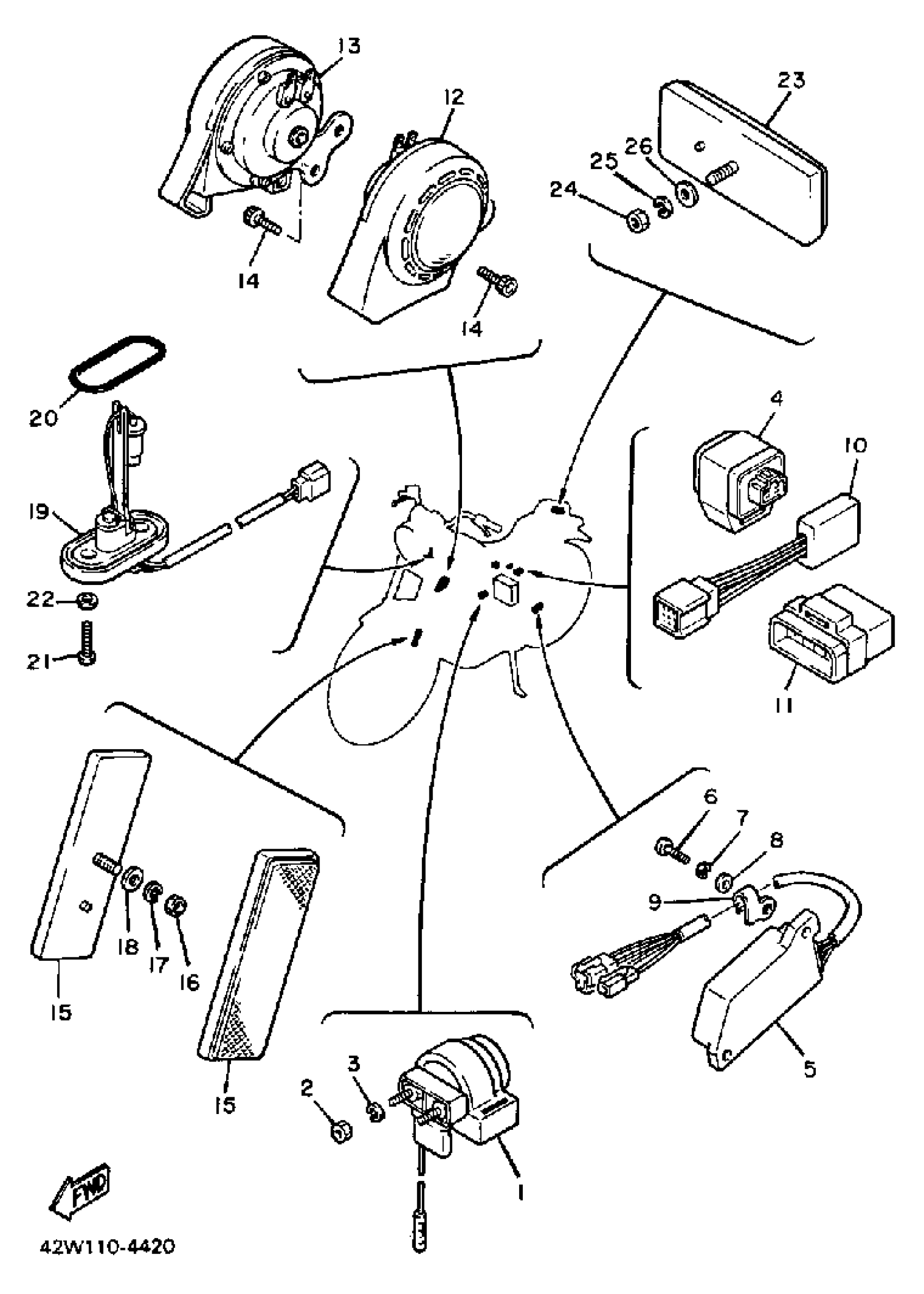

Yamaha XV700LC (VIRAGO 700 CA) 1984 ELECTRICAL 2 Diagram

#

Description
Price

1

STARTER SWITCH ASSEMBLY (MS5D-211)

42X-81940-00-00

Unavailable

2

NUT(650)

95380-06700-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

RELAY ASSY

4U8-81950-03-00

Unavailable

5

RECTIFIER & REGULATOR ASSY

42X-81960-A1-00

$336.99

6

SCREW, PAN

98507-06014-00

$8.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

9

CLAMP

90465-10264-00

Unavailable

10

RECTIFIER 2

4U8-81980-M0-00

Unavailable

11

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

12

HORN

1RM-83371-00-00

Unavailable

13

UNAVAILABLE IN PRICE BOOK (42X-83371-30)

56F-83371-31-00

Unavailable

14

BOLT,SOCKET

91317-06012-00

$8.49

15

REFLECTOR ASSEMBLY

42X-85110-00-00

Unavailable

16

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

18

. WASHER, PLAIN

92990-05200-00

Unavailable

19

SENDER UNIT ASSEMBLY, FUEL METER

42X-85752-01-00

Unavailable

20

GASKET, SENDER UNIT

42X-85753-00-00

Unavailable

21

SCREW 256241430000

90149-06011-00

Unavailable

22

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

23

REAR REFLECTOR ASY

2EN-85130-00-00

Unavailable

24

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

25

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

26

. WASHER, PLAIN

92990-05200-00

Unavailable
