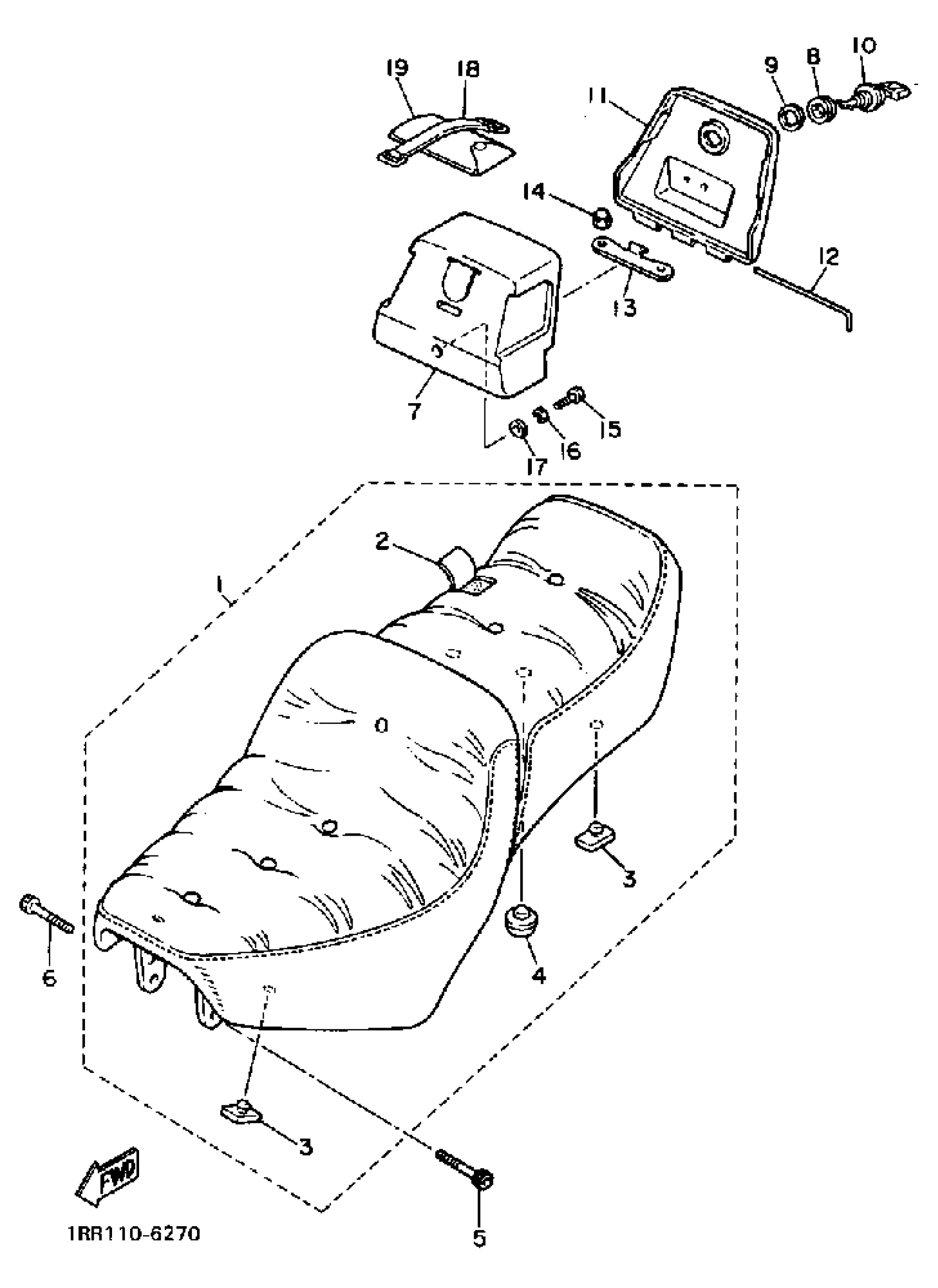

Yamaha XV700CSC (VIRAGO 700 CA) 1986 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

1RM-24730-10-00

Unavailable

1

DOUBLE SEAT ASSEMBLY

3CF-24730-10-00

Unavailable

2

. COVER, SEAT

1RM-24731-00-00

Unavailable

2

. COVER, SEAT

1RM-24731-00-00

Unavailable

3

DAMPER, SEAT

509-24724-00-00

$10.99

4

PAD, SEAT

1L9-24741-00-00

$9.99

5

BOLT,SOCKET

91317-06016-00

$1.25

6

BOLT,SOCKET

91317-06055-00

$4.19

7

BOX 1

42X-2473R-00-00

Unavailable

8

GROMMET (1E6)

90480-24186-00

$8.49

9

WASHER, PLATE (8L8)

90201-225A4-00

$9.49

10

SIDE COVER LOCK ASSY

5A8-21708-00-00

Unavailable

11

LID 1

42X-2473T-00-00

Unavailable

12

PIN, HINGE

42X-2177K-00-00

Unavailable

13

PLATE 1

1RM-2162G-00-00

Unavailable

14

NUT, CROWN (21G)

90176-06041-00

Unavailable

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

18

BAND, TOOL

5H9-21376-00-00

Unavailable

19

TOOL KIT

5A8-W2810-01-00

Unavailable
