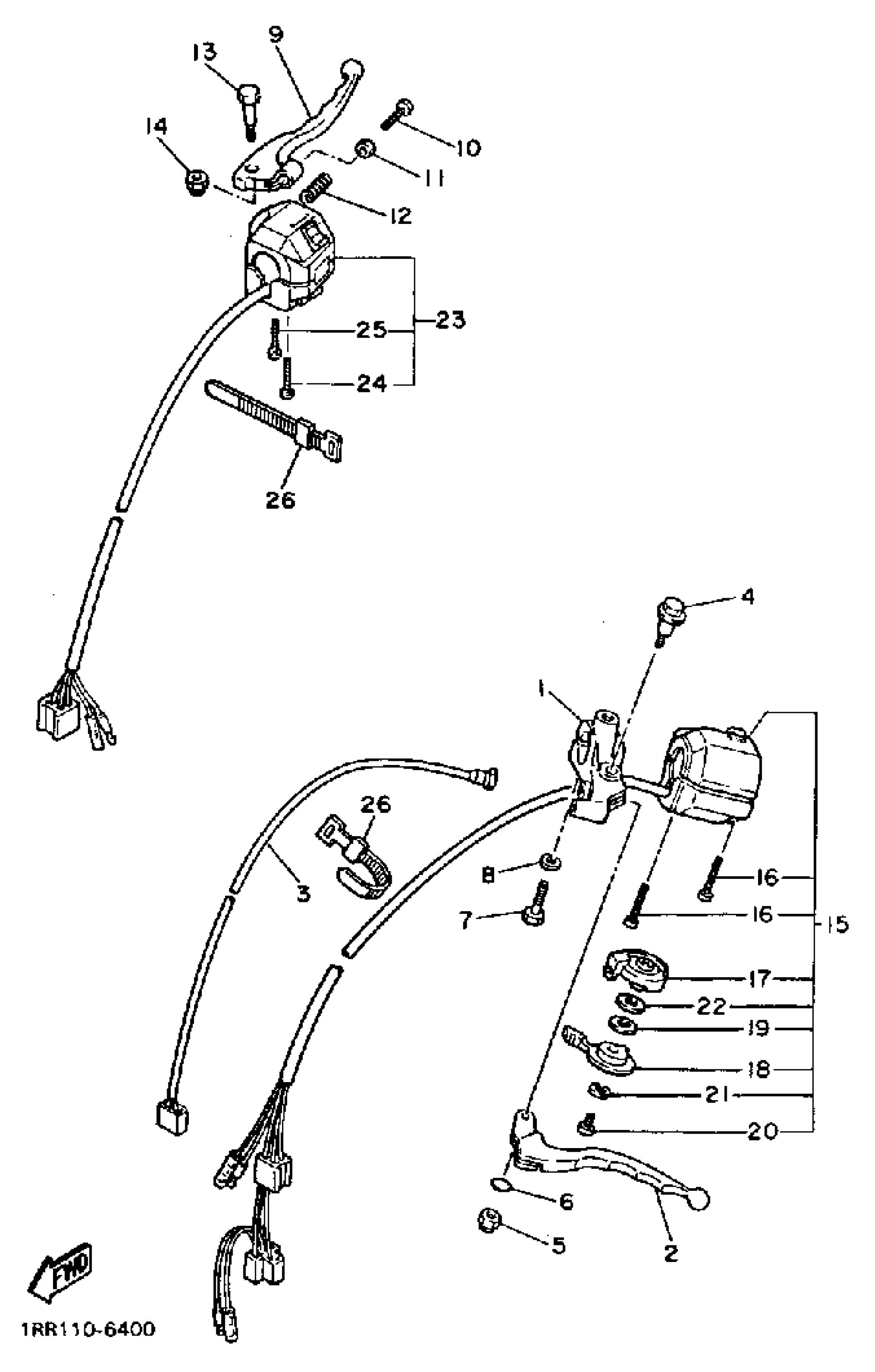

Yamaha XV700CSC (VIRAGO 700 CA) 1986 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER

10M-82911-00-00

Unavailable

2

LEVER 1

57A-83912-01-00

$41.27

3

SWITCH

3Y6-82917-00-00

Unavailable

4

BOLT (2YK1)

90109-06799-00

$4.32

5

NUT, SELF-LOCKING

95617-06100-00

$2.29

6

O-RING (2H7)

93210-11368-00

$4.58

7

BOLT, HEXAGON

97007-06022-00

Unavailable

8

WASHER, SPRING

92907-06100-00

$1.49

9

LEVER 2

57A-83922-01-00

Unavailable

10

SCREW (2L0)

90149-06131-00

$5.87

11

NUT HEXAGON 306839270000

90170-06010-00

$5.87

12

SPRING COMPRESSION306839240000

90501-10312-00

$5.87

13

BOLT (4L0)

90109-06577-00

$4.89

14

NUT, SELF-LOCKING

95617-06100-00

$2.29

15

SWITCH, HANDLE 3

2UJ-83973-00-00

$240.42

16

SCREW, PAN

98507-05035-00

Unavailable

17

COVER, STARTER

10M-83942-00-00

Unavailable

18

LEVER, STARTER

10M-83941-00-00

Unavailable

19

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

20

SCREW, PAN

98517-06008-00

Unavailable

21

WASHER, SPRING

92995-06100-00

$2.83

22

SPACER

1AA-8397X-00-00

Unavailable

23

SWITCH, HANDLE 2 (1AA-83975-00)

42X-83975-01-00

Unavailable

24

SCREW, PAN

98507-05040-00

Unavailable

25

SCREW, PAN

98507-05045-00

Unavailable

26

BAND, SWITCH CORD

437-83936-01-00

Unavailable
