FUEL TANK XV700CSC CTC

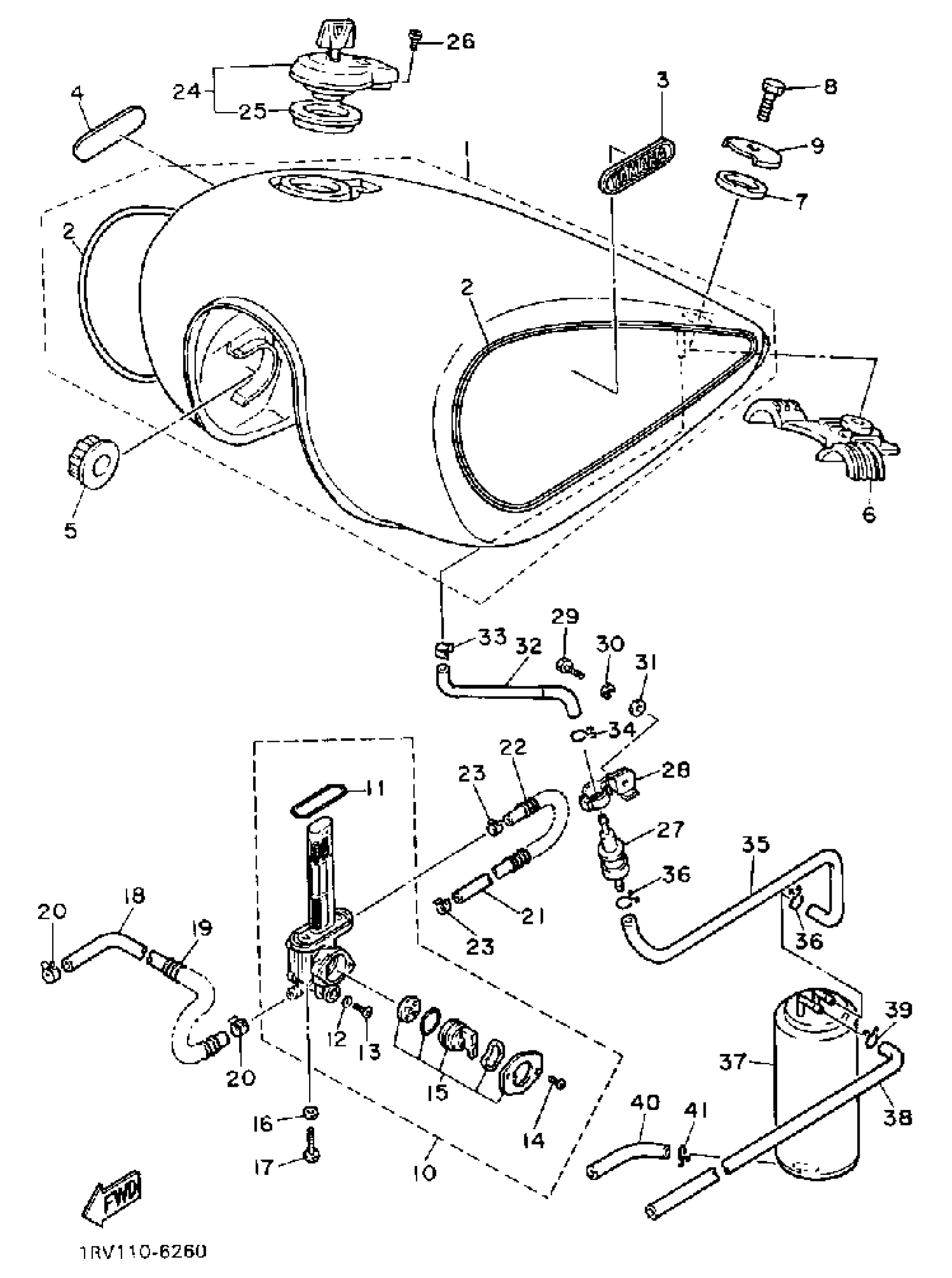

Yamaha XV700CSC (VIRAGO 700 CA) 1986 FUEL TANK XV700CSC CTC Diagram
#
1
FUEL TANK
1RV-24110-00-01
Unavailable
1
FUEL TANK (MAXI MAROON)
1RV-24110-00-02
Unavailable
1
FUEL TANK
1RV-24110-00-06
Unavailable
1
FUEL TANK
1RV-24110-00-07
Unavailable
2
. GRAPHIC SET (ORION SILVER) (DEEP VIOLET)
1RM-24240-00-00
Unavailable
2
. GRAPHIC SET (MIYABI MAROON) (NEW RUBY RED)
1RM-24240-10-00
Unavailable
2
. GRAPHIC SET (VELVET MAROON)
1RM-24240-20-00
Unavailable
2
. GRAPHIC SET (CAMELLIA GREEN)
1RM-24240-30-00
Unavailable
3
EMBLEM 1 (ORION SILVER) (DEEP VIOLET)
1RM-24161-00-00
Unavailable
3
EMBLEM 1
1RM-24161-10-00
Unavailable
4
EMBLEM 2 (ORION SILVER) (DEEP VIOLET)
1RM-24162-00-00
Unavailable
4
EMBLEM 2
1RM-24162-10-00
Unavailable
6
DAMPER, LOCATING 2
42X-24182-00-00
Unavailable
8
BOLT(JA9)
90101-08691-00
Unavailable
9
WASHER, SPECIAL
42X-24186-00-00
Unavailable
10
FUEL COCK ASSY 1
10L-24500-09-00
Unavailable
11
O-RING
2W6-24512-00-00
Unavailable
12
GASKET, DRAIN PLUG
2G2-24522-00-00
Unavailable
13
SCREW, PAN HEAD(6A3)
97885-06008-00
Unavailable
14
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
15
FUEL COCK VALVE SET
10L-W0092-00-00
Unavailable
16
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
17
SCREW 256241430000
90149-06011-00
Unavailable
18
PIPE 10
42X-24321-00-00
Unavailable
19
SPRING, COMPRESSION (27Y)
90501-08728-00
Unavailable
20
CLIP(42X)
90467-10091-00
Unavailable
21
HOSE
42X-2416A-00-00
Unavailable
22
SPRING, COMPRESSION
90501-085L6-00
Unavailable
23
CLIP(41W)
90467-08092-00
Unavailable
24
CAP ASSY
20K-24602-10-00
Unavailable
25
GASKET, TANK CAP
4X7-24612-00-00
Unavailable
26
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
27
ROLL OVER VALVE ASSY
25H-24180-00-00
Unavailable
28
HOLDER
42X-2419A-00-00
Unavailable
29
BOLT, HEXAGON
97017-06012-00
Unavailable
30
WASHER, SPRING
92907-06100-00
Unavailable
31
WASHER(6TA)
92907-06600-00
Unavailable
32
PIPE, JOINT 1
(42X-24376-00-00)
Unavailable
33
CLIP(41W)
90467-08092-00
Unavailable
34
CLIP
90467-090A2-00
Unavailable
35
PIPE, JOINT 3
42X-24377-00-00
Unavailable
36
CLIP
90467-090A2-00
Unavailable
37
CANISTER ASSEMBLY
42H-24170-00-00
Unavailable
38
HOSE (L730)
90445-105K7-00
Unavailable
39
CLIP
90467-090A2-00
Unavailable
40
HOSE (L198)
90445-11293-00
Unavailable
41
CLIP(1JH)
90467-11106-00
Unavailable
