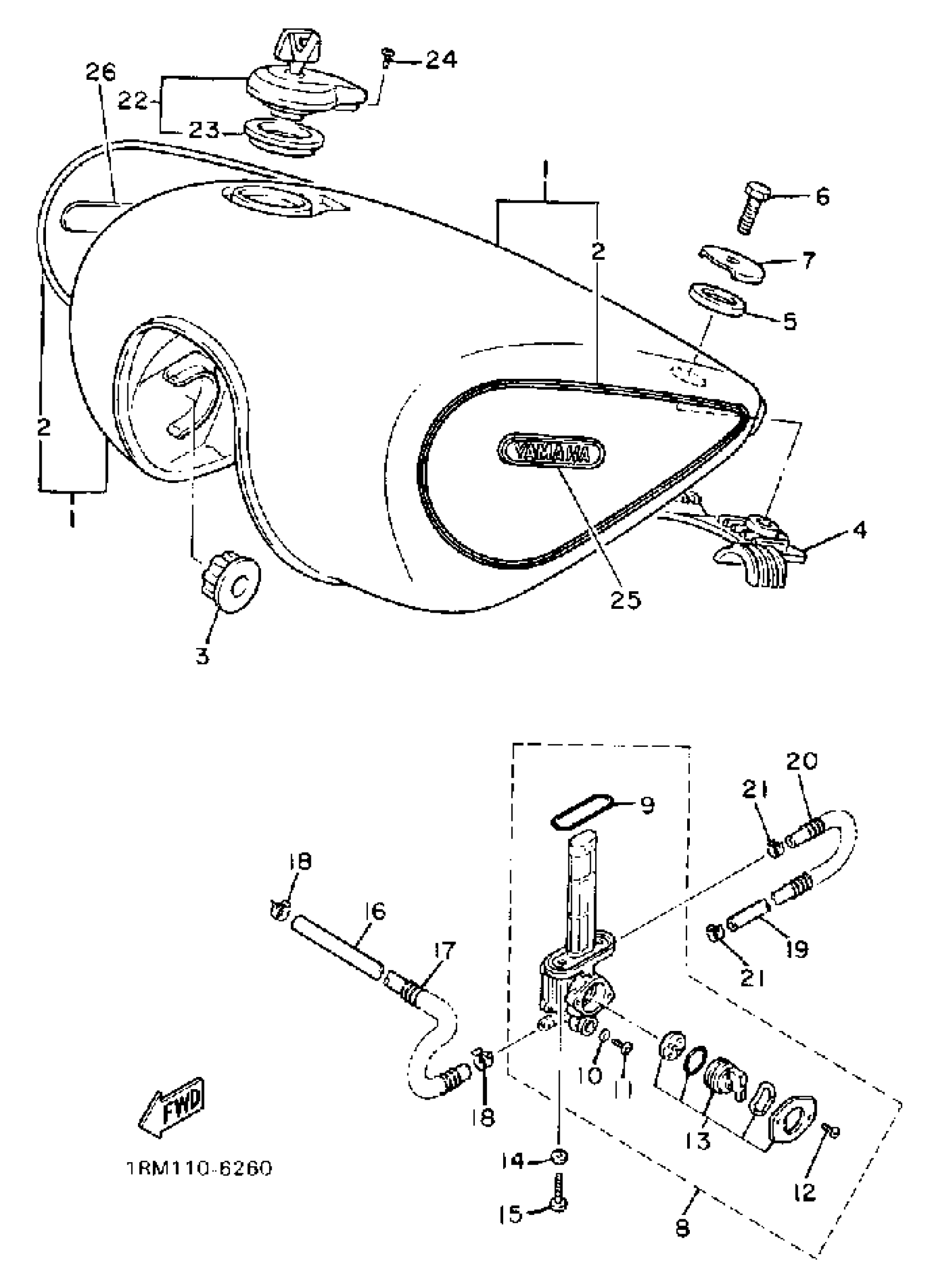

Yamaha XV700CSC (VIRAGO 700 CA) 1986 FUEL TANK XV700CS CT Diagram

#

Description
Price

1

FUEL TANK COMP

1RM-W2410-00-01

Unavailable

1

FUEL TANK (MIYABI MAROON) (NEW RUBY RED)

1RM-24110-00-02

Unavailable

1

FUEL TANK

1RM-24110-00-08

Unavailable

1

FUEL TANK

1RM-24110-00-09

Unavailable

2

. GRAPHIC SET (ORION SILVER) (DEEP VIOLET)

1RM-24240-00-00

Unavailable

2

. GRAPHIC SET (MIYABI MAROON) (NEW RUBY RED)

1RM-24240-10-00

Unavailable

2

. GRAPHIC SET (VELVET MAROON)

1RM-24240-20-00

Unavailable

2

. GRAPHIC SET (CAMELLIA GREEN)

1RM-24240-30-00

Unavailable

3

DAMPER, LOCATING

4H7-24181-00-00

$6.99

4

DAMPER, LOCATING 2

42X-24182-00-00

Unavailable

5

DAMPER, LOCATING 3

42X-24183-00-00

$7.99

6

BOLT(JA9)

90101-08691-00

$4.29

7

WASHER, SPECIAL

42X-24186-00-00

$9.99

8

FUEL COCK ASSY 1

10L-24500-09-00

$158.99

9

O-RING

2W6-24512-00-00

$7.99

10

GASKET, DRAIN PLUG

2G2-24522-00-00

Unavailable

11

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

12

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

13

FUEL COCK VALVE SET

10L-W0092-00-00

Unavailable

14

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

15

SCREW 256241430000

90149-06011-00

Unavailable

16

PIPE 10

42X-24321-00-00

Unavailable

17

SPRING, COMPRESSION (27Y)

90501-08728-00

Unavailable

18

CLIP(42X)

90467-10091-00

Unavailable

19

HOSE

42X-2416A-00-00

Unavailable

20

SPRING, COMPRESSION

90501-085L6-00

Unavailable

21

CLIP(41W)

90467-08092-00

Unavailable

22

CAP ASSY

4X7-24602-10-00

Unavailable

23

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

24

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

25

EMBLEM 1 (ORION SILVER) (DEEP VIOLET)

1RM-24161-00-00

Unavailable

25

EMBLEM 1

1RM-24161-10-00

Unavailable

26

EMBLEM 2 (ORION SILVER) (DEEP VIOLET)

1RM-24162-00-00

Unavailable

26

EMBLEM 2

1RM-24162-10-00

Unavailable
