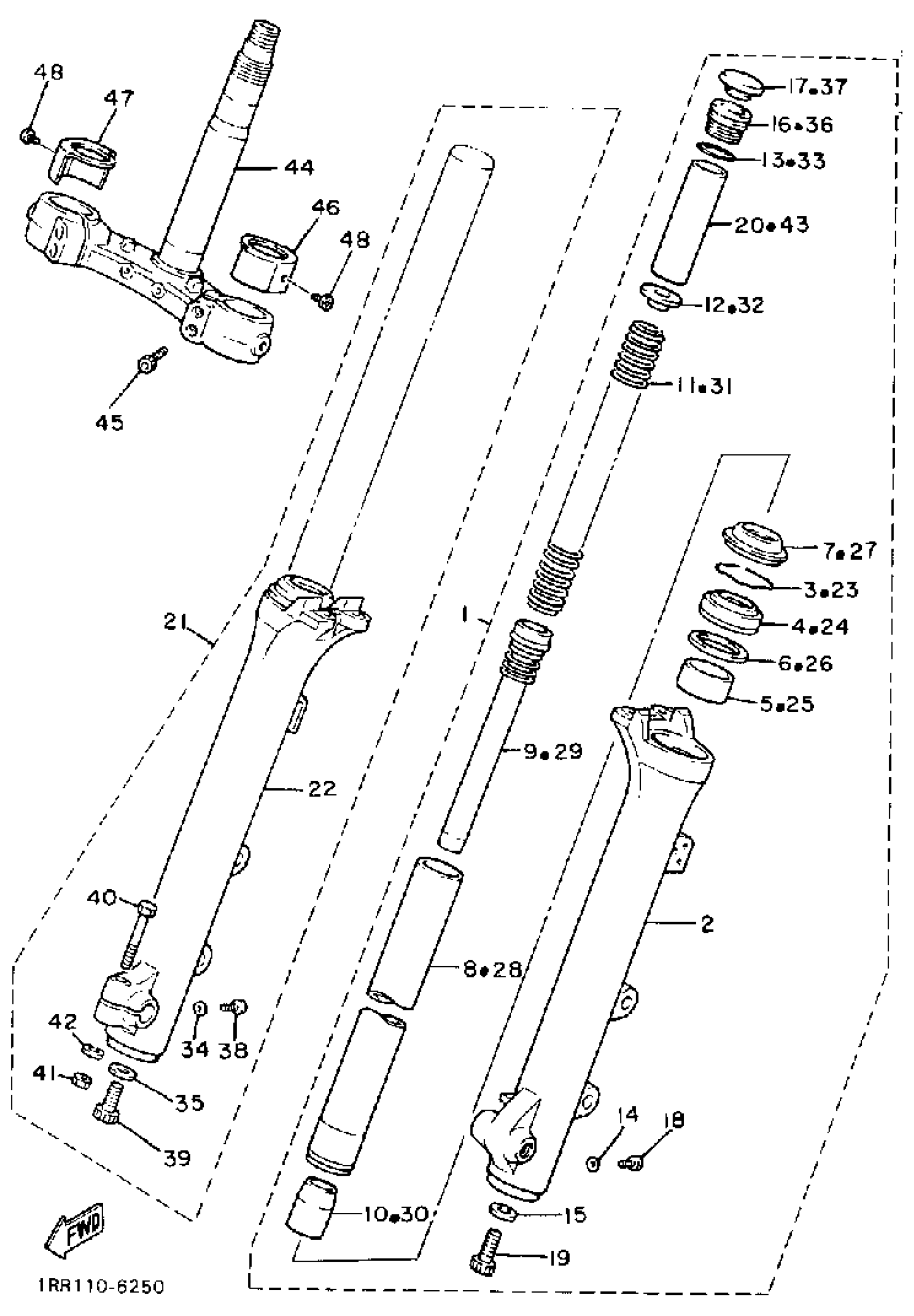

Yamaha XV700CSC (VIRAGO 700 CA) 1986 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY L
1RM-23102-00-00
Unavailable
2
TUBE,OUTER(LEFT)
3JK-23126-10-00
Unavailable
7
SEAL, DUST
42X-23144-01-00
Unavailable
8
INNER TUBE 1
99999-02981-00
Unavailable
9
. CYLINDER COMP, FRONT FORK
33M-23170-00-00
Unavailable
11
. SPRING, FRONT FORK
42H-23141-00-00
Unavailable
12
. SEAT, SPRING UPPER
1W1-23142-L0-00
Unavailable
16
. BOLT, CAP
31A-23111-31-00
Unavailable
17
CAP, FRONT FORK
42H-23168-00-00
Unavailable
18
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
20
SPACER
(42X-23118-00-00)
Unavailable
21
FRONT FORK ASSEMBLY R
1RM-23103-00-00
Unavailable
22
TUBE,OUTER(RIGHT)
3JK-23136-10-00
Unavailable
26
TUBE, OUTER 2
(4V2-23136-L0-00)
Unavailable
27
SEAL, DUST
42X-23144-01-00
Unavailable
28
INNER TUBE 1
99999-02981-00
Unavailable
29
. CYLINDER COMP, FRONT FORK
33M-23170-00-00
Unavailable
31
. SPRING, FRONT FORK
42H-23141-00-00
Unavailable
32
. SEAT, SPRING UPPER
1W1-23142-L0-00
Unavailable
36
. BOLT, CAP
31A-23111-31-00
Unavailable
37
CAP, FRONT FORK
42H-23168-00-00
Unavailable
38
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
39
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
40
BOLT (1E6)
90101-08340-00
Unavailable
41
NUT(6L2)
95333-08600-00
Unavailable
42
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
43
SPACER
(42X-23118-00-00)
Unavailable
44
UNDER BRACKET COMP.
2AE-23340-30-00
Unavailable
45
BOLT,SOCKET
91314-08030-00
Unavailable
46
COVER (L.H)
1RM-23132-00-00
Unavailable
47
COVER (R.H)
1RM-23132-10-00
Unavailable
48
SCREW,PANHEAD (EG9)
98580-05006-00
Unavailable
