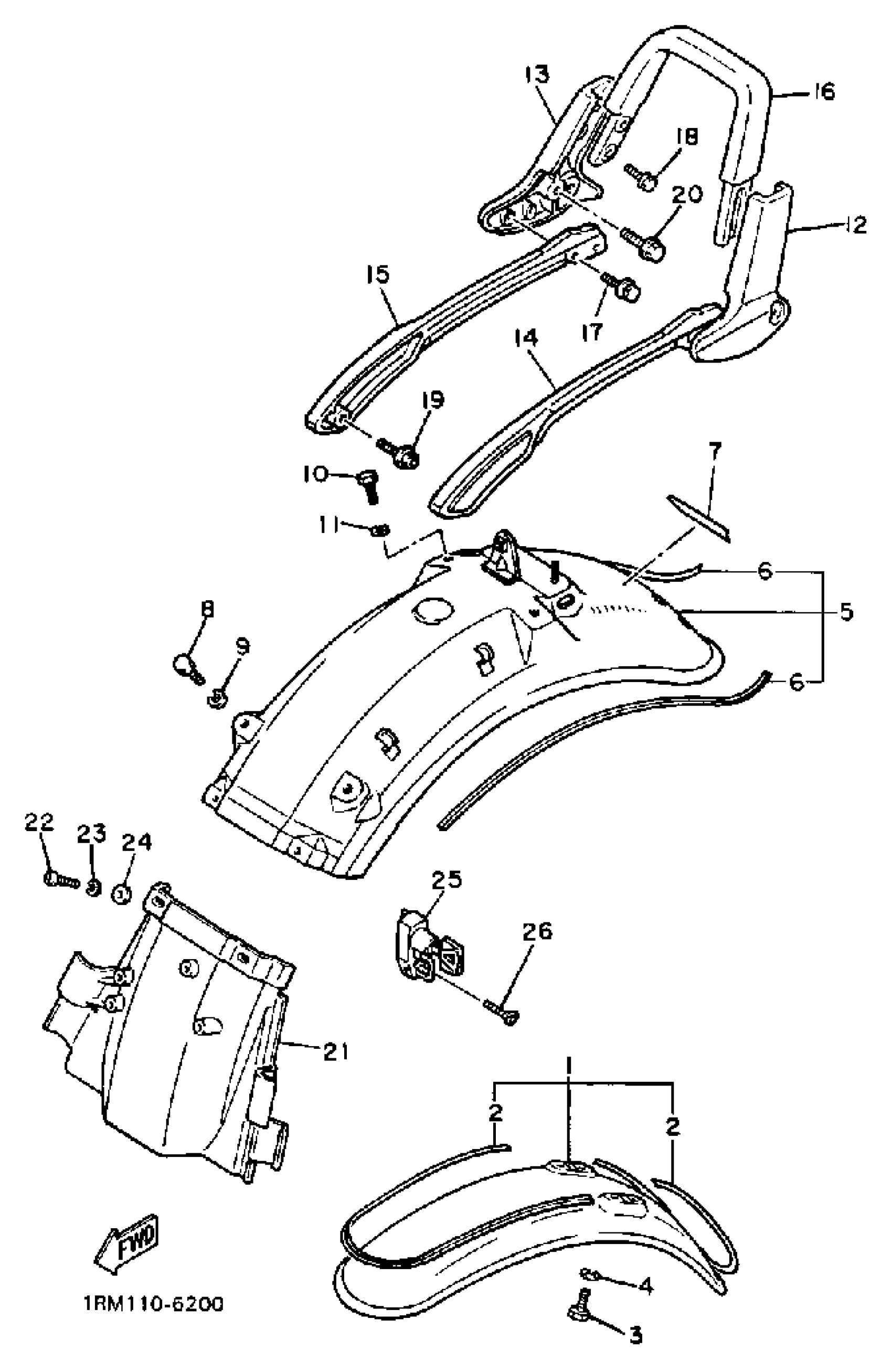

Yamaha XV700CSC (VIRAGO 700 CA) 1986 FENDER XV700CT CTC Diagram

#

Description

Price

1

FENDER, FRONT

1MY-21510-00-TJ

Unavailable

1

FENDER, FRONT

1MY-21510-00-TK

Unavailable

2

. GRPHC SET, FRT FNDR (VELVET MAROON)

1RM-21570-20-00

Unavailable

2

. GRPHC SET, FRT FNDR (CAMELLIA GREEN)

1RM-21570-30-00

Unavailable

3

BOLT (661)

97013-06012-00

$5.60

4

WASHER, SPRING

92995-06100-00

Unavailable

5

FENDER, REAR

1RM-21610-01-TJ

Unavailable

5

FENDER,REAR

99999-02954-00

Unavailable

6

. GRAPHIC SET, RFENR (VELVET MAROON)

1RM-2165A-20-00

Unavailable

6

. GRAPHIC SET, RFENR (CAMELLIA GREEN)

1RM-2165A-30-00

Unavailable

7

EMBLEM, YAMAHA

99246-00080-00

$20.99

7

EMBLEM, YAMAHA

99245-00080-00

$11.49

8

BOLT (661)

97013-06012-00

$5.60

9

WASHER, SPRING

92995-06100-00

Unavailable

10

BOLT(62E)

97013-08012-00

Unavailable

11

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

12

STAY 1

1RM-2164F-00-00

Unavailable

13

STAY 2

1RM-2164G-00-00

Unavailable

14

STAY 3

1RM-2164H-00-00

Unavailable

15

STAY 4

1RM-2164J-00-00

Unavailable

16

GRIP 1

55R-2164A-02-00

Unavailable

17

BOLT, FLANGE

95817-06016-00

Unavailable

18

BOLT, FLANGE

95817-06016-00

Unavailable

19

SCREW

90149-08225-00

Unavailable

20

BOLT, FLANGE

95817-10020-00

Unavailable

21

GUARD, MUD

42X-21629-00-00

Unavailable

22

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

25

HELMET HANGER ASSY

26H-21308-01-00

Unavailable

26

SCREW, FLAT

98707-06030-00

Unavailable
