- XV700CSC (VIRAGO 700 CA) 1986
FENDER XV700CS CSC

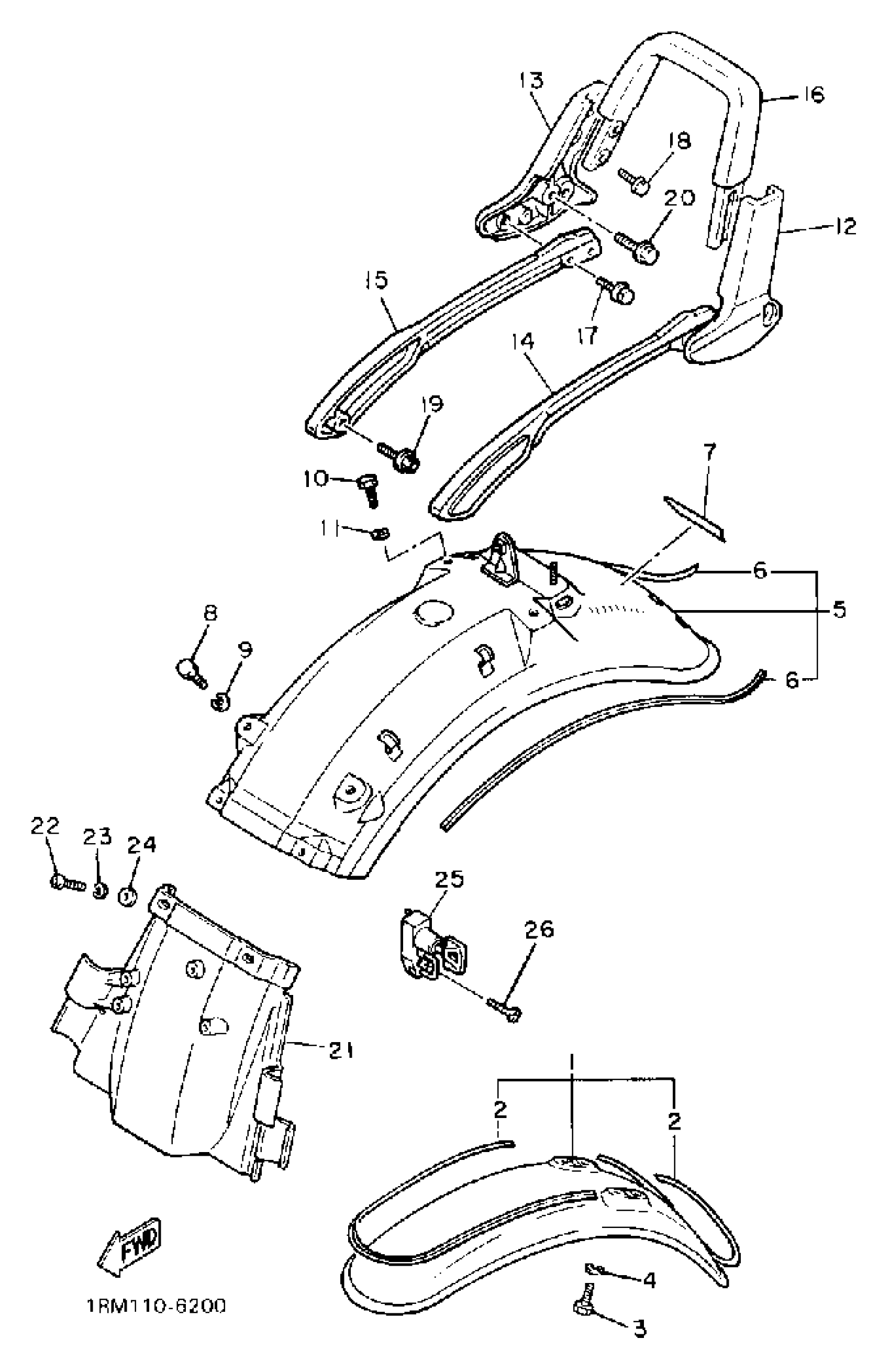

Yamaha XV700CSC (VIRAGO 700 CA) 1986 FENDER XV700CS CSC Diagram
#
1
FRONT FENDER DV/OR
1RM-Y2150-00-1X
Unavailable
1
FRONT FENDER MM/RR
1RM-Y2150-00-2X
Unavailable
2
. GRPHC SET, FRT FNDR (ORION SILVER) (DEEP VIOLET)
1RM-21570-00-00
Unavailable
2
. GRPHC SET, FRT FNDR (MIYABI MAROON) (NEW RUBY RED)
1RM-21570-10-00
Unavailable
4
WASHER, SPRING
92995-06100-00
Unavailable
5
REAR FENDER DV/OS (ORION SILVER) (DEEP VIOLET)
1RM-Y2161-00-1X
Unavailable
5
REAR FENDER MM/RR (MIYABI MAROON) (NEW RUBY RED)
1RM-Y2161-00-2X
Unavailable
6
. GRAPHIC SET, RFNDR (ORION SILVER) (DEEP VIOLET)
1RM-2165A-00-00
Unavailable
6
. GRAPHIC SET, RFNDR (MIYABI MAROON) (NEW RUBY RED)
1RM-2165A-10-00
Unavailable
9
WASHER, SPRING
92995-06100-00
Unavailable
10
BOLT(62E)
97013-08012-00
Unavailable
11
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
12
STAY 1
1RM-2164F-00-00
Unavailable
13
STAY 2
1RM-2164G-00-00
Unavailable
14
STAY 3
1RM-2164H-00-00
Unavailable
15
STAY 4
1RM-2164J-00-00
Unavailable
16
GRIP 1
55R-2164A-02-00
Unavailable
17
BOLT, FLANGE
95817-06016-00
Unavailable
18
BOLT, FLANGE
95817-06016-00
Unavailable
19
SCREW
90149-08225-00
Unavailable
20
BOLT, FLANGE
95817-10020-00
Unavailable
21
GUARD, MUD
42X-21629-00-00
Unavailable
22
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
25
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
26
SCREW, FLAT
98707-06030-00
Unavailable
