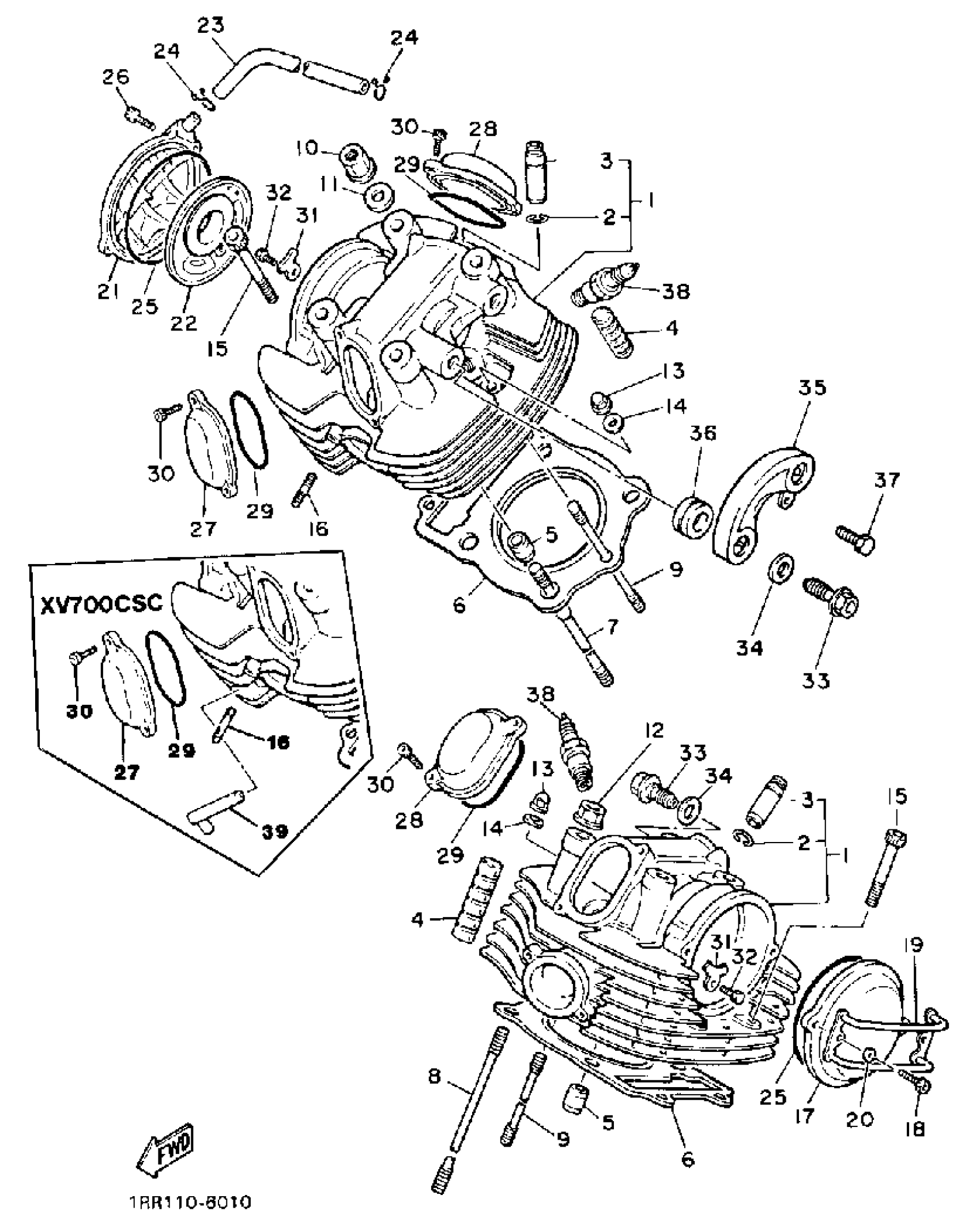

Yamaha XV700CSC (VIRAGO 700 CA) 1986 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY (1RM-Y1111-00)

1RM-11102-00-00

Unavailable

2

CIRCLIP (4X7)

93440-14086-00

$9.49

3

GUIDE, INTAKE VALVE (1ST O/S)

4X7-11133-10-00

$69.99

4

ABSORBER 1

4X7-11161-00-00

Unavailable

5

PIN, DOWEL(3EF)

91817-30011-00

$12.49

6

GASKET, CYLINDER HEAD 1

42X-11181-00-00

Unavailable

7

BOLT, CYLINDER HOLDING 3

4X7-11363-01-00

Unavailable

8

BOLT,STUD

90116-12350-00

Unavailable

9

BOLT, STUD (4X7)

90116-10344-00

$13.99

10

NUT (4X7)

90179-12326-00

$10.49

11

WASHER, PLATE (5E3)

90201-125A3-00

$2.17

12

NUT (4X7)

90179-12325-00

$5.60

13

NUT, CROWN(2GG)

90176-10075-00

$8.49

14

WASHER, PLATE (26H)

90201-102G9-00

$9.49

15

BOLT, SOCKET

91314-08050-00

$7.49

16

BOLT, STUD 3

95617-08640-00

Unavailable

17

COVER, CYLINDER HEAD SIDE 1

42X-11185-01-00

Unavailable

18

BOLT, SOCKET

91314-06016-00

Unavailable

19

BRACKET, CYLINDER HEAD COVER

42X-11152-00-00

Unavailable

20

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

21

COVER, CYLINDER HEAD SIDE 4

42X-1111H-01-00

Unavailable

22

PLATE, BREATHER

42X-11165-00-00

Unavailable

23

PIPE, BREATHER 1

42X-11166-01-00

Unavailable

24

CLIP (371)

90467-14015-00

Unavailable

25

O-RING (4X7)

93210-92448-00

Unavailable

26

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

27

COVER, CYLINDER HEAD SIDE 2

42H-11186-02-00

Unavailable

28

COVER, CYLINDER HEAD SIDE 3

4X7-11187-02-00

Unavailable

29

O-RING (4X7)

93210-62446-00

Unavailable

30

BOLT, SOCKET

91314-06016-00

Unavailable

31

PLATE

4X7-1111F-00-00

Unavailable

32

BOLT, HEXAGON

97013-08020-00

Unavailable

33

BOLT, UNION

90401-16065-00

Unavailable

34

GASKET (4X7)

90430-17168-00

Unavailable

35

COVER, CYLINDER HEAD 3

1RM-1112E-00-00

Unavailable

36

GROMMET

90480-23444-00

Unavailable

37

BOLT,SOCKET

91317-06010-00

Unavailable

38

BPR7ES NGK - 4/PACK

BPR-7ES00-40-00

Unavailable

39

PIPE 3

42H-14873-01-00

Unavailable
