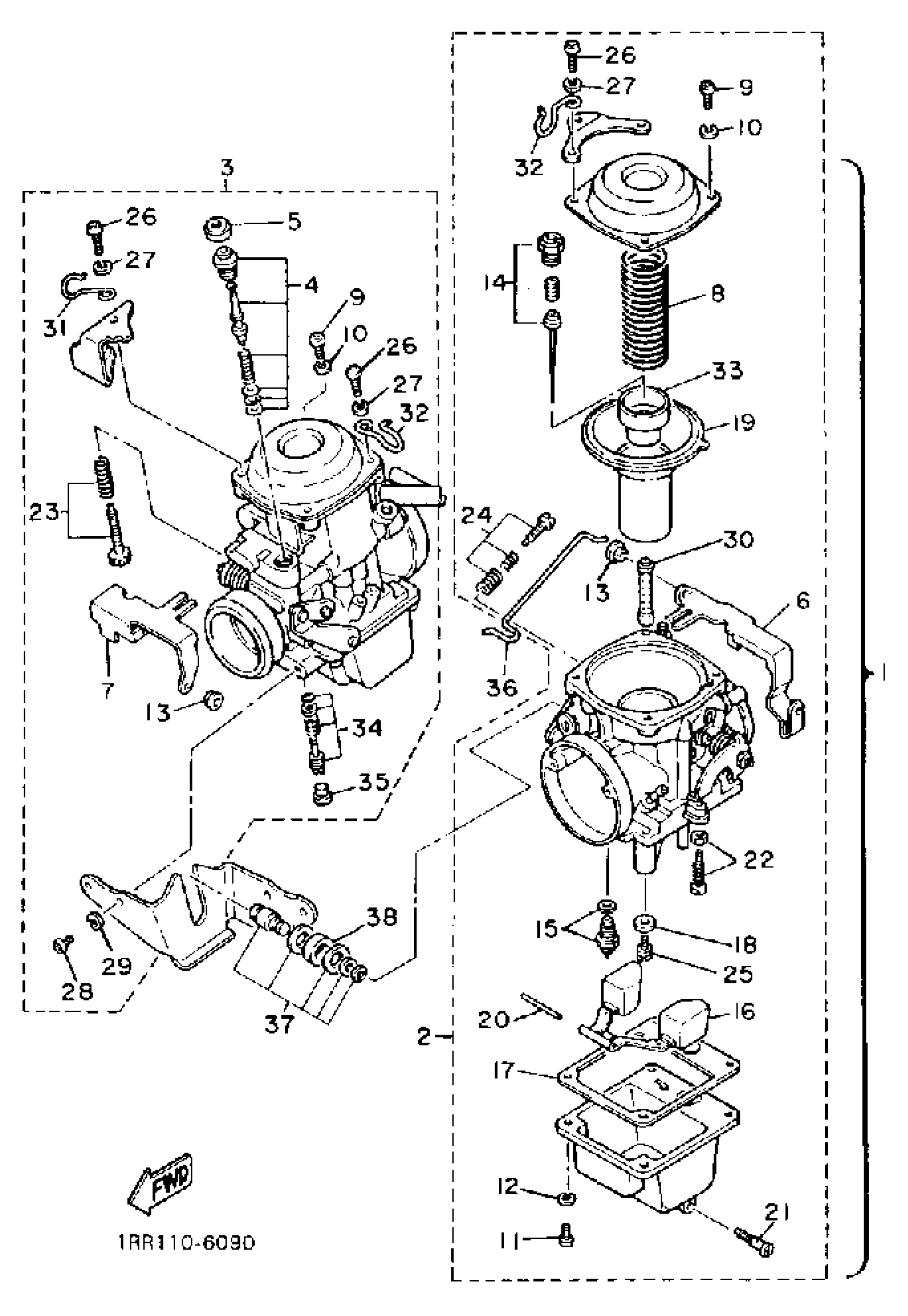

Yamaha XV700CSC (VIRAGO 700 CA) 1986 CARBURETOR Diagram
#
1
UNAVAILABLE IN PRICE BOOK (CSC/CTC)
[1R-V1490-00-00
Unavailable
1
UNAVAILABLE IN PRICE BOOK (CS/CT)
[42-W1490-00-10
Unavailable
2
. CARBURETOR ASSEMBLY 1 (CSC/CTC)
1RV-14901-00-00
Unavailable
2
. CARBURETOR ASSEMBLY 1 (CS/CT)
42W-14901-02-00
Unavailable
3
. CARBURETOR ASSEMBLY 2 (CSC/CTC)
1RV-14902-00-00
Unavailable
3
. CARBURETOR ASSEMBLY 2 (CS/CT)
42W-14902-02-00
Unavailable
4
.. PLUNGER, STARTER
4X7-14371-01-00
Unavailable
5
.. COVER, PLUNGER CAP
4H7-14173-00-00
Unavailable
6
.. LEVER, STARTER 2
10L-14976-01-00
Unavailable
7
LEVER, STARTER 2
(10L-14976-11-00)
Unavailable
8
SPRING, DIAPHRAGM
(42X-14933-00-00)
Unavailable
11
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
13
.. BUSH
4X7-14998-01-00
Unavailable
14
.. NEEDLE Y-32
4X7-14916-32-00
Unavailable
14
.. NEEDLE Y-33OK (4X7-14916-30)
4X7-14916-33-00
Unavailable
15
.. NEEDLE VALVE ASSY
10L-14390-02-00
Unavailable
16
.. FLOAT
10L-14985-01-00
Unavailable
17
.. GASKET, FLOAT CHMBR
10L-14984-02-00
Unavailable
18
.. WASHER, MAIN JET
4H7-14945-00-00
Unavailable
19
.. DIAPHRAGM ASSEMBLY
42X-14940-00-00
Unavailable
20
.. PIN, FLOAT
4H7-14186-00-00
Unavailable
21
.. SCREW, THROTTLE
4X7-14321-02-00
Unavailable
22
.. SCREW, THROTTLE
4X7-14321-02-00
Unavailable
23
.. SCREW, THRTL STOP
4X7-14121-02-00
Unavailable
24
.. SCREW, ADJUST
4X7-14522-01-00
Unavailable
25
.. JET, MAIN (#124)
4X7-14925-24-00
Unavailable
25
.. JET, MAIN
4X7-14925-28-00
Unavailable
25
.. JET, MAIN (#132) 2
4X7-14925-32-00
Unavailable
26
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
28
SCREW, PAN
98507-06014-00
Unavailable
29
WASHER, SPRING
92995-06100-00
Unavailable
30
.. NOZZLE, MAIN
42X-14921-32-00
Unavailable
31
CLIP, PIPE
(22N-14139-00-00)
Unavailable
32
CLIP
(10L-14937-00-00)
Unavailable
33
.. RECEIVER, SPRING
42X-1491E-00-00
Unavailable
34
.. SCREW, PILOT
10L-14923-01-00
Unavailable
35
.. CAP (10L-14118-01)
10L-14118-11-00
Unavailable
36
ROD, STARTER LEVER
(4X7-14177-01-00)
Unavailable
37
. WASHER
4X7-14962-00-00
Unavailable
38
. ROLLER
4X7-14267-00-00
Unavailable
